00 11 500 Checking/ topping up oil level in automatic transmission (A5S 300J)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The vehicle must be on level ground.

Apply parking brake.

Automatic transmission oil. See RECOMMENDED FLUID .

CAUTION: Only check oil level at a transmission oil temperature of 30 °C... 55°C.

Query oil temperature with BMW MODIC or BMW Diagnosis Information System (DIS).

Run engine in selector lever setting "P" or "N".

Unfasten filler screw (1).

Top up automatic transmission oil until it overflows at the filler bore.

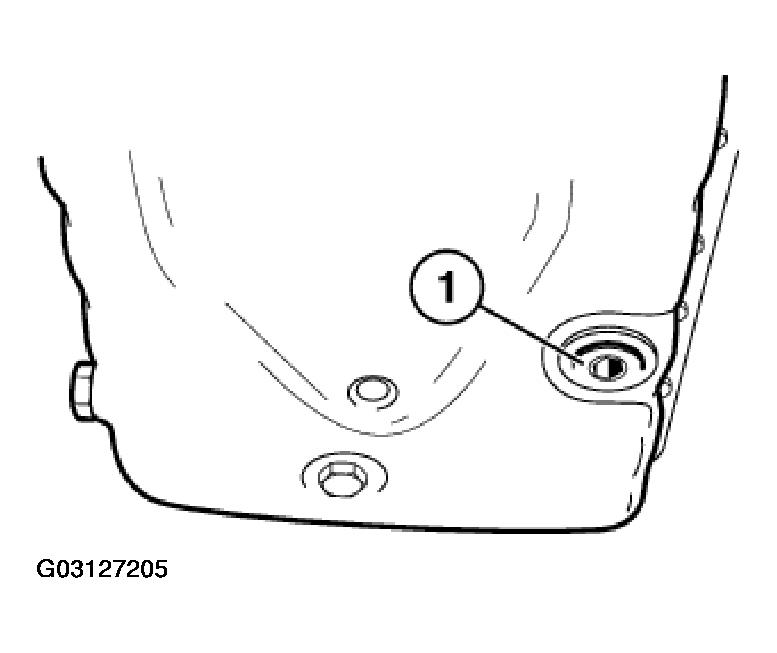

Fig 1: Identifying Filler Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Use new sealing ring.

Tightening torque. See TORQUE SPECIFICATIONS .
