MAHA twin-pillar lifting platform
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

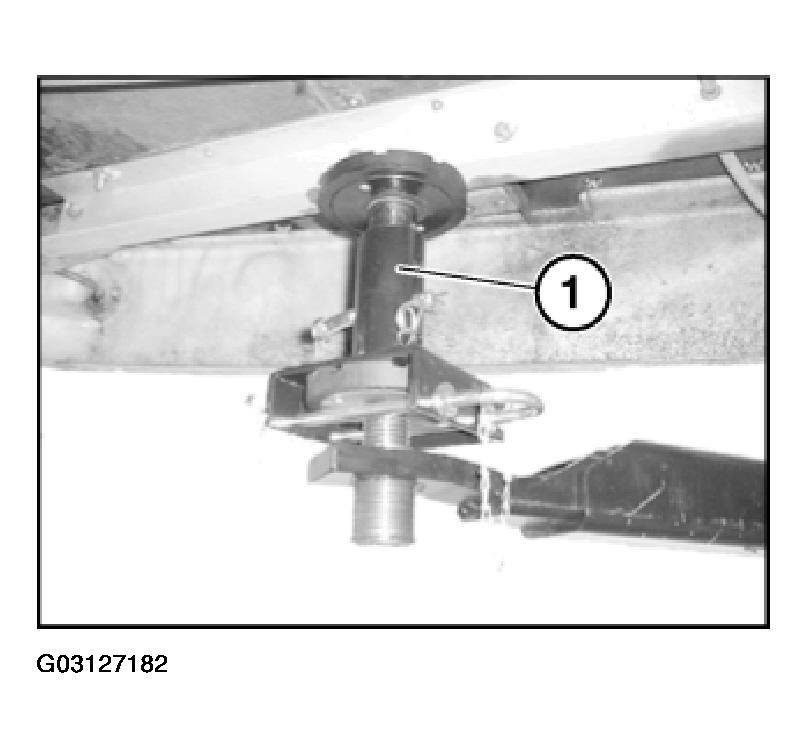

The BMW multi-trailer can only be raised if you use the support plate attachment sleeves for transporters (1). Position the axle of the BMW multi-trailer in the direction of travel in front of the pillars of the platform in order to obtain the specified lifting ranges and to establish sufficient clearance between disk wheel and carrier arms. The long carrier arms raise the front and the short carrier arms raise the rear of the BMW multi-trailer.
