Becker & Sohne twin-strut underfloor platform

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

The BMW multi-trailer can only be raised if it is supported at right angles to the direction of travel. For raising, use the high additional supports (1) of Becker & Sohne. See Fig 1.

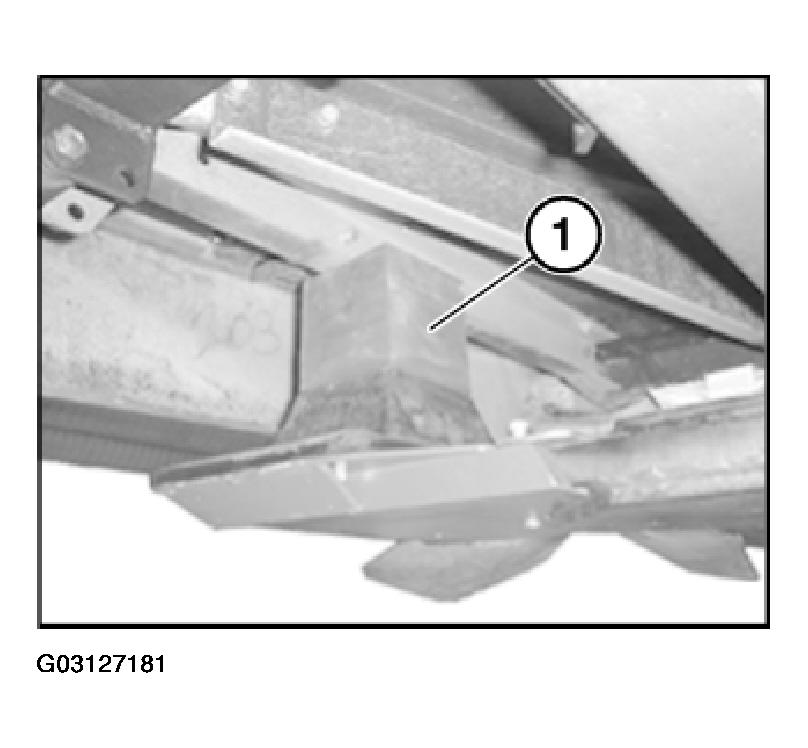

Fig 1: Identifying High Additional Supports
G03127181Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Also lash the BMW multi-trailer to the flat girder bridges of the lifting platform. Flag the protruding tow hitch and the drawbar member of the BMW multi-trailer conspicuously so as to prevent injury, e.g. with a red cloth.
