Wheel Bearing: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove swivel bearing. See SWIVEL BEARING .

CAUTION: The wheel bearing and drive flange must be replaced.

Clamp swivel bearing with aluminum clamping jaws in vise. Secure special tools (33 2 116/33 2 150) to drive flange with 5 wheel studs. Drive out drive flange with special tool (33 4 200). See Fig 1.
Lift out circlip (1). See Fig 2.

NOTE: The bearing can be forced out of the swivel bearing on a press.

On bearing with inside diameter of 45 mm, pull off bearing with special tool (31 2 113, 33 3 261/262/266). See Fig 3.

NOTE: The bearing can be forced out of the swivel bearing on a press.

On bearing with inside diameter of 49 mm, pull off bearing with special tools (31 2 113, 33 4 261, 33 3 261/263). See Fig 4.

Fig 1: Removing Drive Flange

Courtesy of BMW OF NORTH AMERICA, INC.

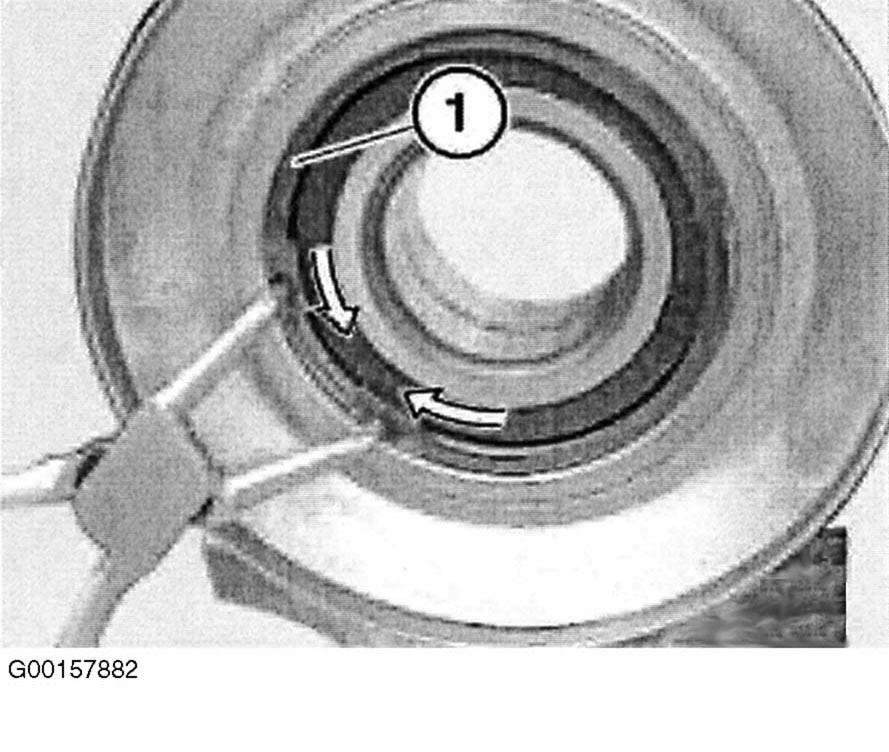

Fig 2: Lifting out Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

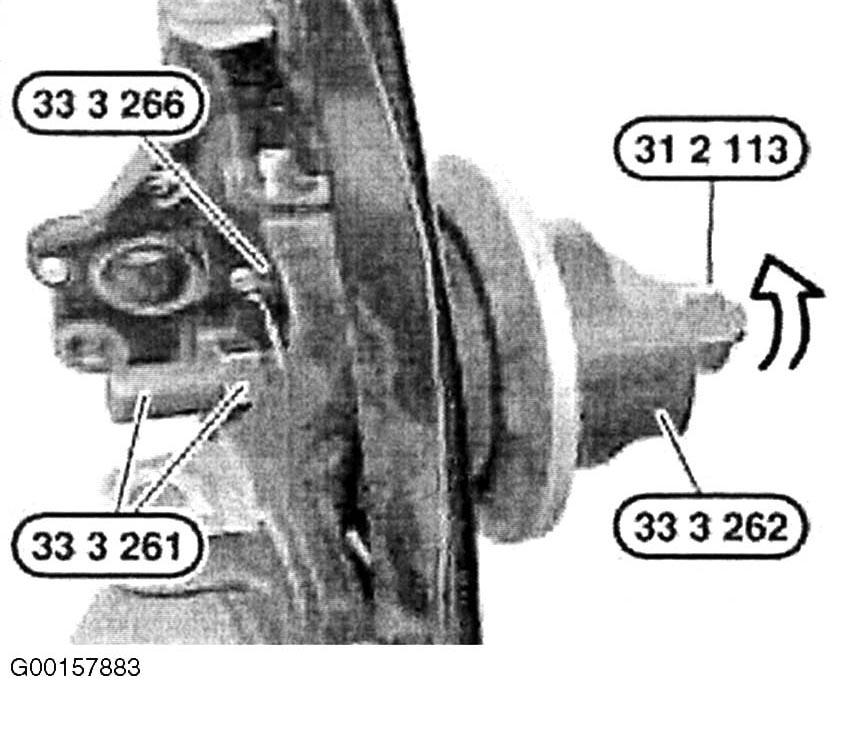

Fig 3: Pulling Off Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

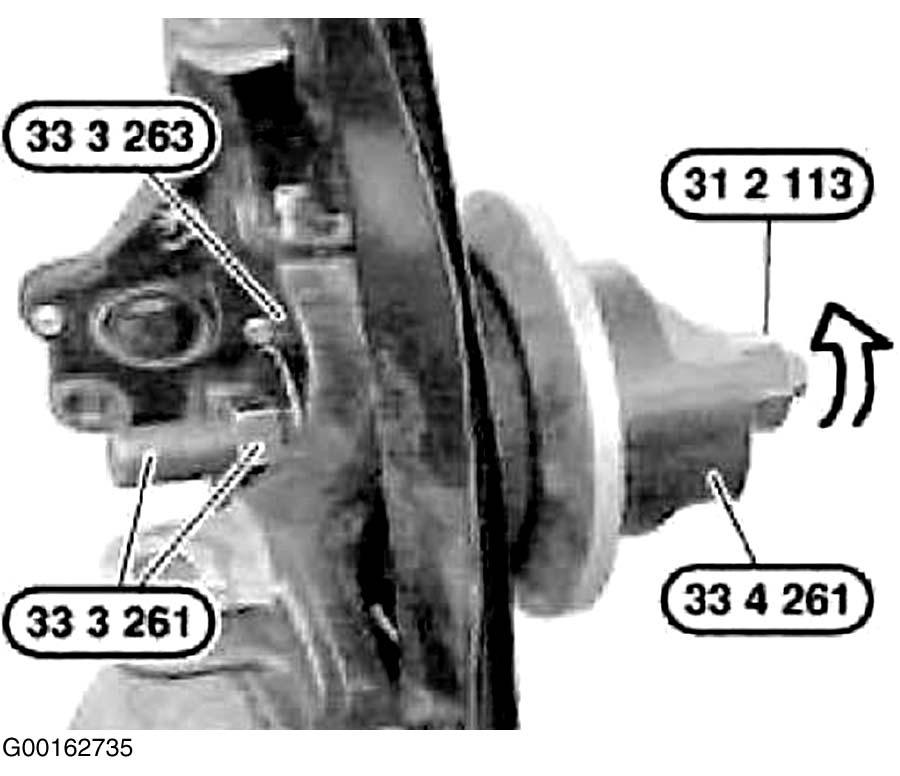

Fig 4: Pulling Out Bearing With Inside Diameter 49 mm
