Wheel Bearing: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not use a bearing unit again once it has been removed.
CAUTION:
The press-fit surfaces must be clean and free from oil and grease.
NOTE:

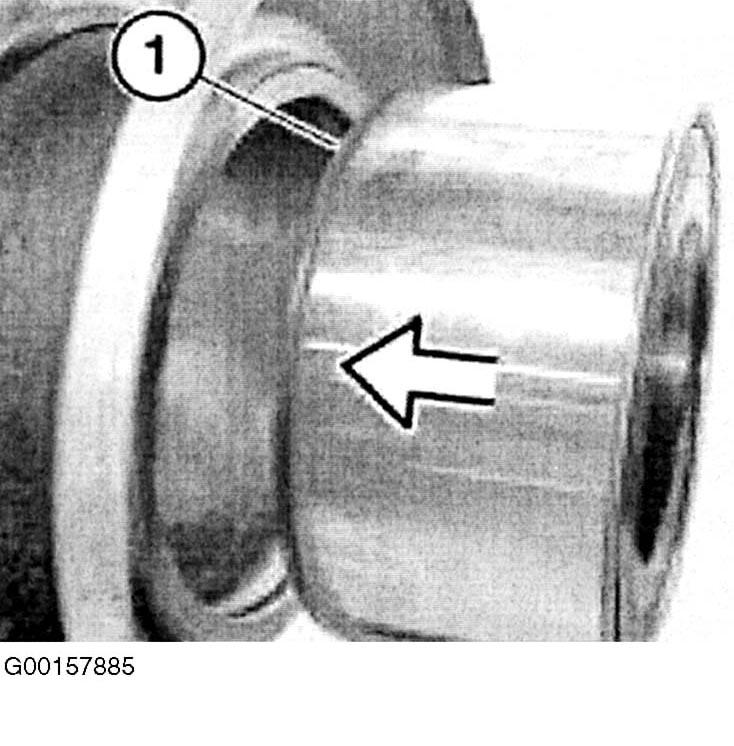

Wider chamfer of bearing must point to swivel bearing. See Fig 1.
- Coat bearing seat in swivel bearing over 50 percent of its length with Loctite 648 or equivalent.

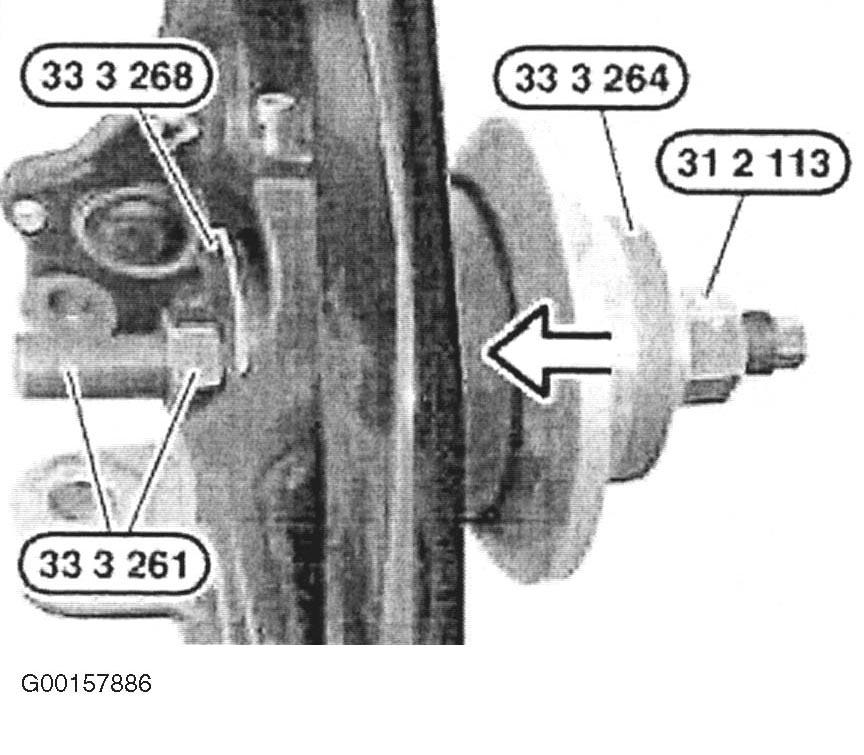

- On bearing with inside diameter 45 mm, draw in bearing with special tools (31 2 113) and (33 3 261/264/268). See Fig 2.

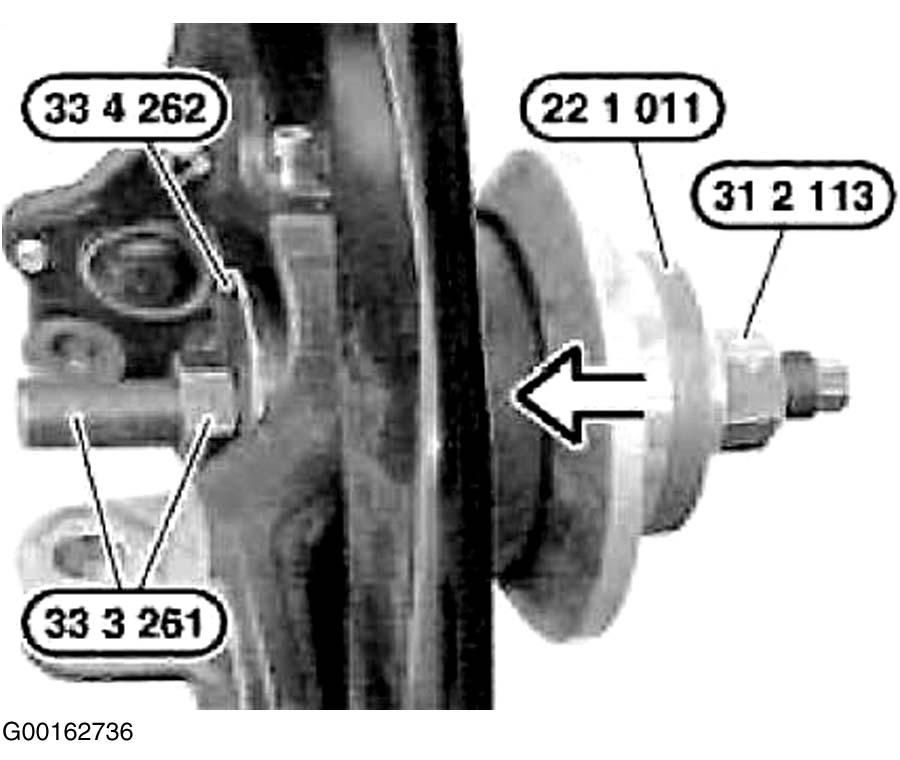

- On bearing with inside diameter of 49 mm, draw in bearing with special tools (22 1 011, 31 2 113, and 33 3 261). Position special tool (33 4 262) with bevel to bearing. See Fig 3.
- Replace circlip (1). Ensure ring is correctly seated. It should snap into place. See Figure.

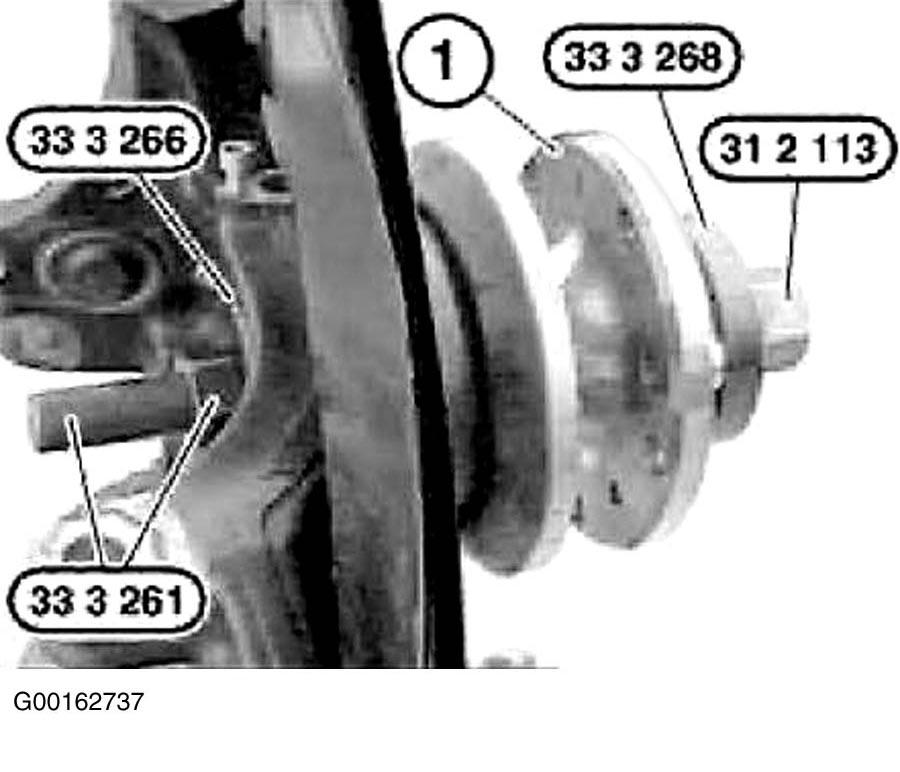

- On 45 mm bearing inside diameter, place special tool (33 3 266) with larger diameter on bearing and draw in drive flange with special tools (31 2 113) and (33 3 261/268). See Fig 4.

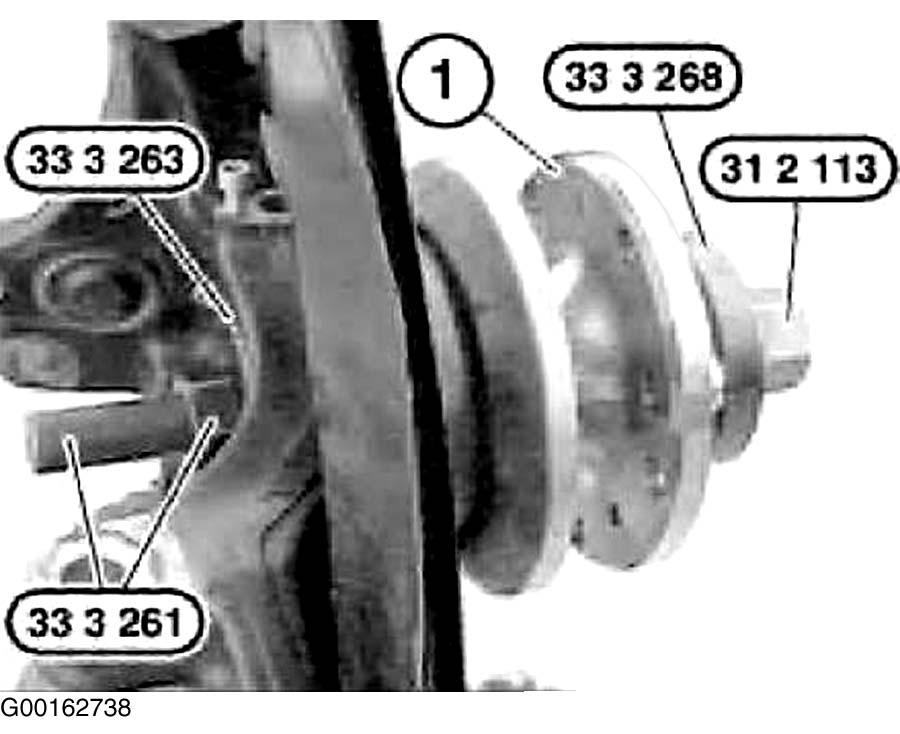

- On 49 mm bearing inside diameter, place special tool (33 3 263) with larger diameter on bearing and draw in drive flange with special tools (31 2 113) and (33 3 261/268). See Fig 5.
- Install swivel bearing. See SWIVEL BEARING .
