Swivel Bearing: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Install new wheel bearing in swivel bearing. See WHEEL BEARING .
- Install swivel bearing on spring strut and tighten nuts to specification. See TORQUE SPECIFICATIONS .

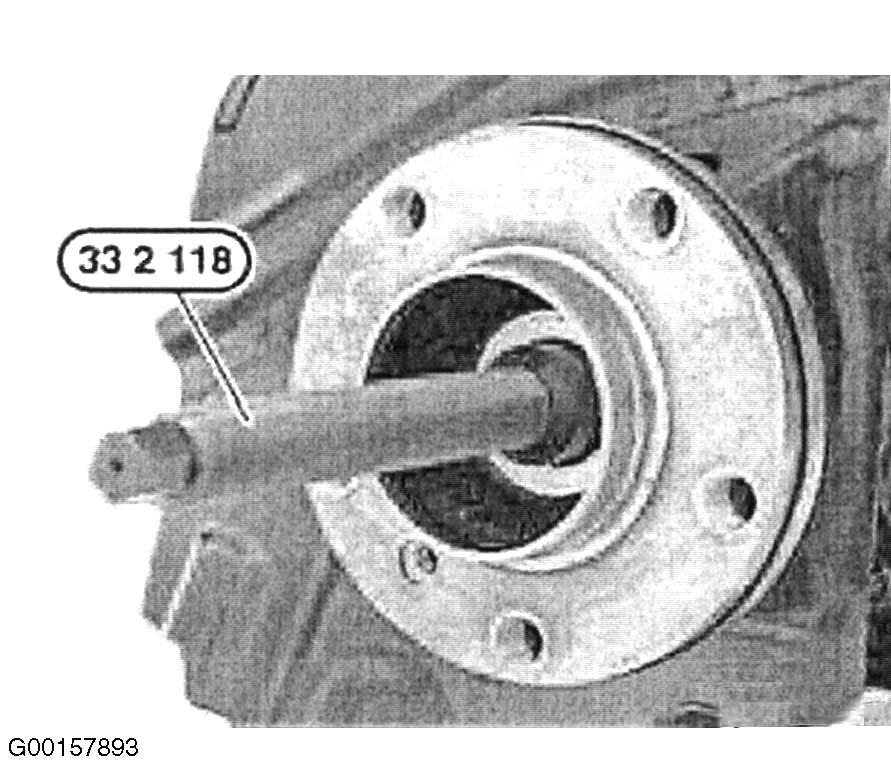

- Lightly oil axle shaft splines and insert into drive flange splines. Screw on special tool (33 2 118). See Fig 1.

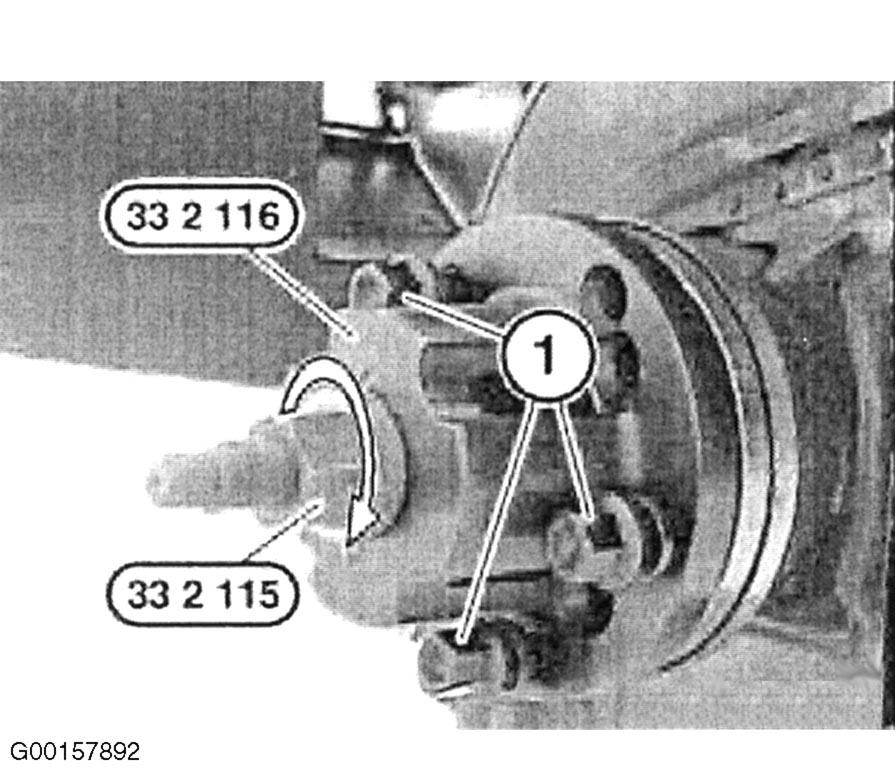

- Screw on special tool (33 2 116) with 5 wheel lug bolts (1). Install axle shaft with special tool (33 2 115), gripping with tire iron in so doing. See Fig 2.
- Install control arm. Ensure tapered spigot and bore are both free of grease. Replace self-locking nut and tighten to specification. See TORQUE SPECIFICATIONS .
- Install guide joint and tighten to specification. See TORQUE SPECIFICATIONS .
- Press on tie rod. Ensure spigot and bore are free of grease. Brace on hexagon socket if necessary. Replace self-locking nut and tighten to specification. See TORQUE SPECIFICATIONS .
- Install brake disc and ABS pulse sensor.
- Replace collar nut on axle shaft. Tighten to specification. See TORQUE SPECIFICATIONS .
- Lock collar nut by caulking at flat areas of axle shaft. See Figure.
- Check and adjust front wheel alignment. See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES under ADJUSTMENTS.
CAUTION:
If guide joint has been driven out with special tool, it must be replaced. See GUIDE JOINT .
