Removal & Installation: Stabilizer: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support front of vehicle. Turn wheels to straight ahead position and remove wheel.
  2. Remove underbody protection. Unscrew bolts (1, 2) and remove reinforcement plate. See Figure.
  3. Unfasten nut on pressure rod with open end wrench and remove from stabilizer. See Fig 1.
  4. Remove both rubber mounts (1, 2). See Fig 2.
  5. Release guide joint in swivel bearing on left side of car. See GUIDE JOINT .
  6. Lift stabilizer bar over drive shafts and remove towards left.

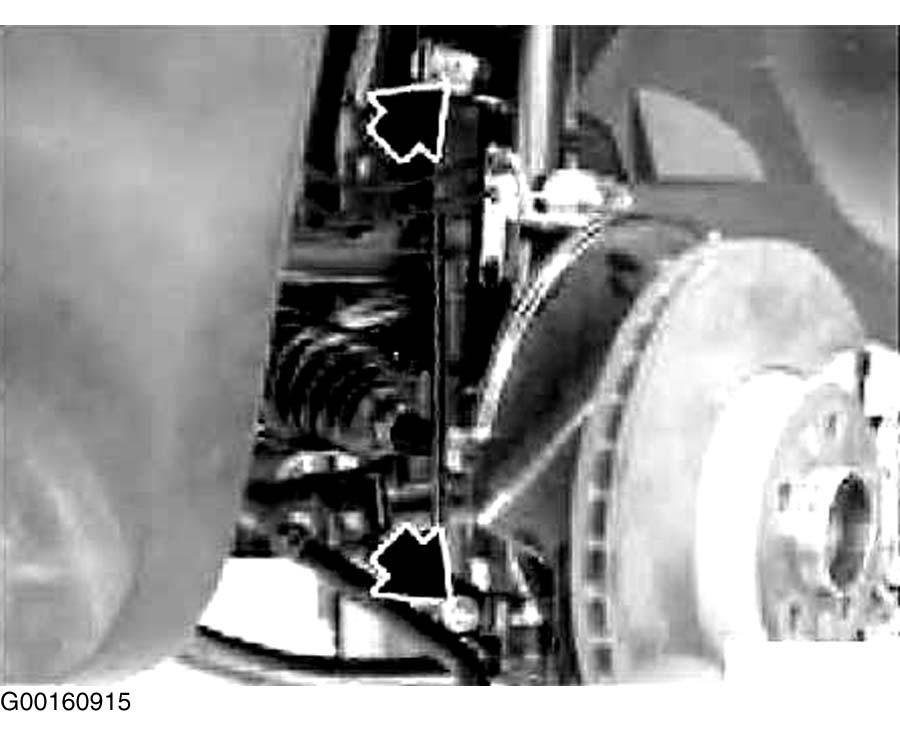

Fig 1: Removing Pressure Rod
G00160915Courtesy of BMW OF NORTH AMERICA, INC.

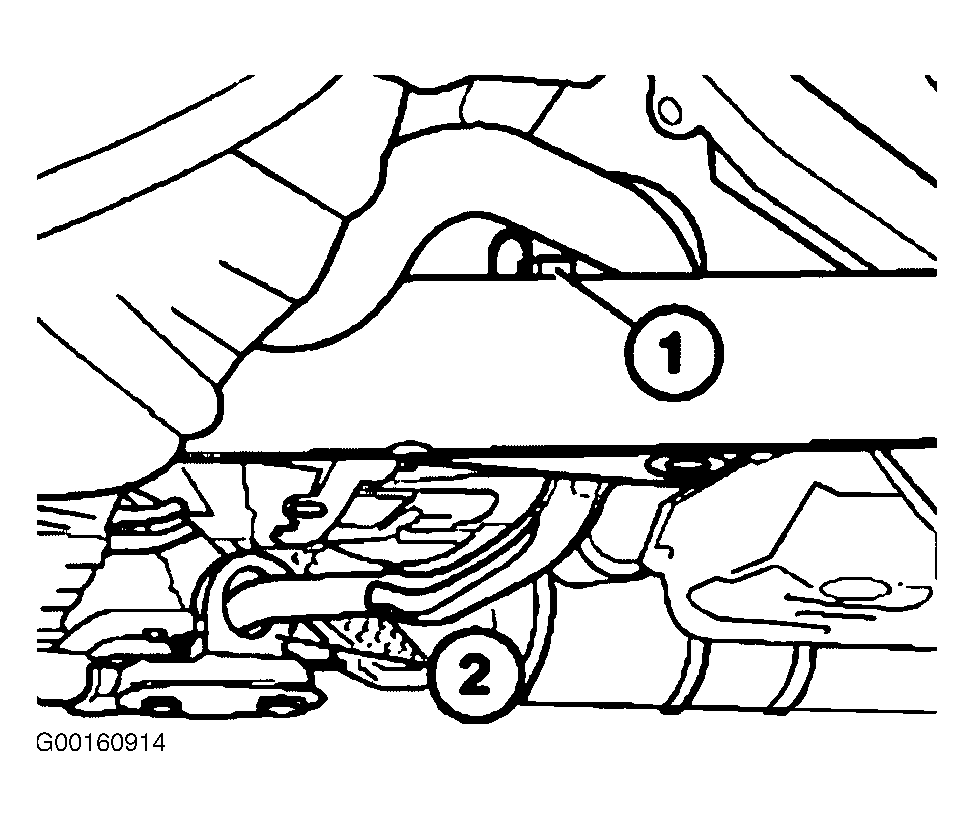

Fig 2: Removing Rubber Mounts
G00160914Courtesy of BMW OF NORTH AMERICA, INC.
