Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For removing and installing window glass

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1

SI number: 1 05 86(604)

Order number: 51 3 010

Suction lift (2 x)

Consisting of:

1 = 51 3 011 Suction cup

Note: With elongated hole, suspension moveable about all axes

2 = 51 3 012 Suction cup

Note: With bore, suspension only moveable in longitudinal direction

3 = 51 3 013 Grab handle

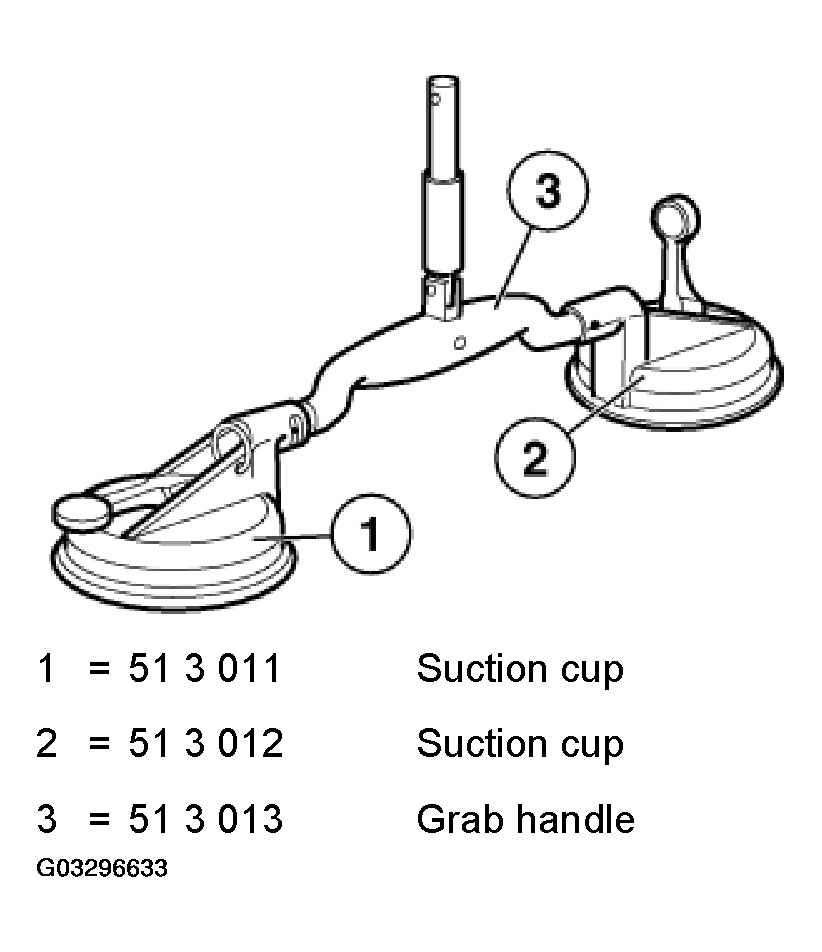

Fig 1: Identifying Suction Lift

Courtesy of BMW OF NORTH AMERICA, INC.
