36 1 250 Wheel hub grinder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For cleaning wheel hubs

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53

SI number: 1 15 03 (005)

Order number: 36 1 250

Wheel hub grinder

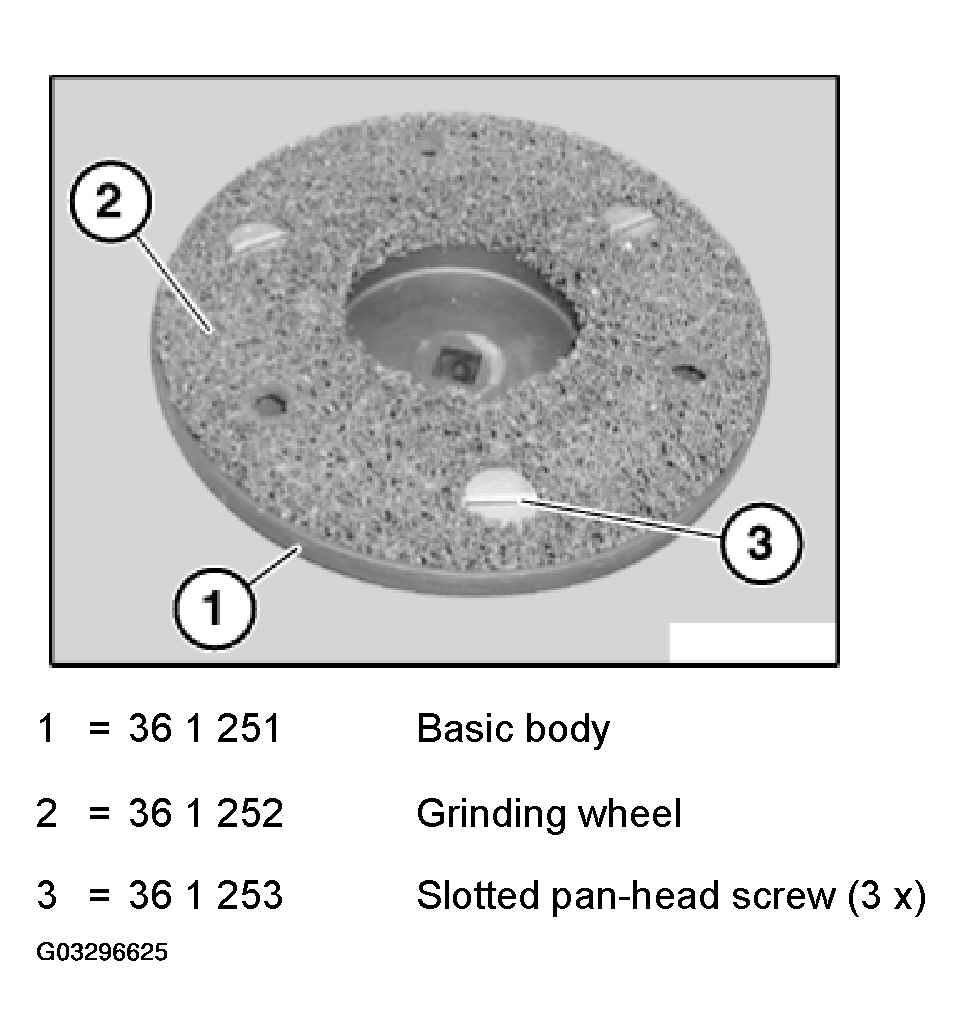

Fig 1: Identifying Wheel Hub Grinder

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 36 1 251 Basic body

Note: Basic body with mounting screws (slotted pan-head screw)

2 = 36 1 252 Grinding wheel

3 = 36 1 253 Slotted pan-head screw (3 x)

Note: For securing grinding wheel on basic body
