Tension Struts: Removal
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 BMW 530i, 2003 BMW 525i, 2002 BMW 530i, 2002 BMW 525i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
- Remove complete engine compartment shielding.
- Remove left and right wheels. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
- Remove left and right air ducts. See 64 31... REMOVING AND INSTALLING/REPLACING AIR DUCT FOR MICROFILTER ON LEFT OR RIGHT
- Remove cap. See Figure.

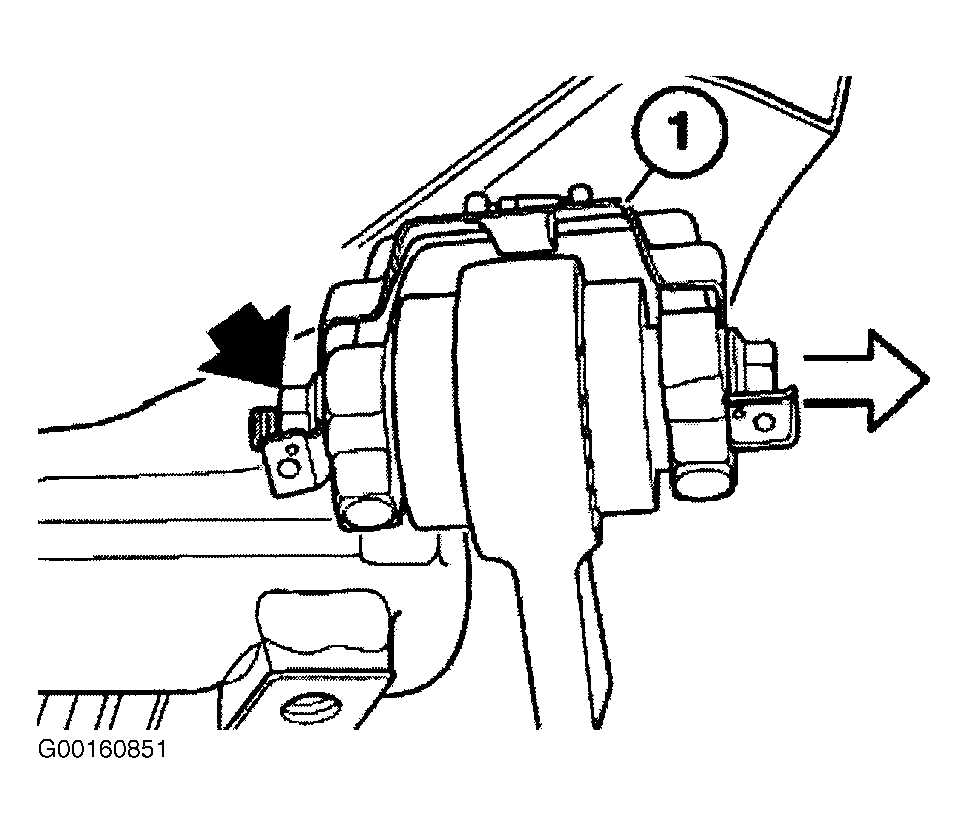

- Unfasten nut and remove screw. See Fig 1.

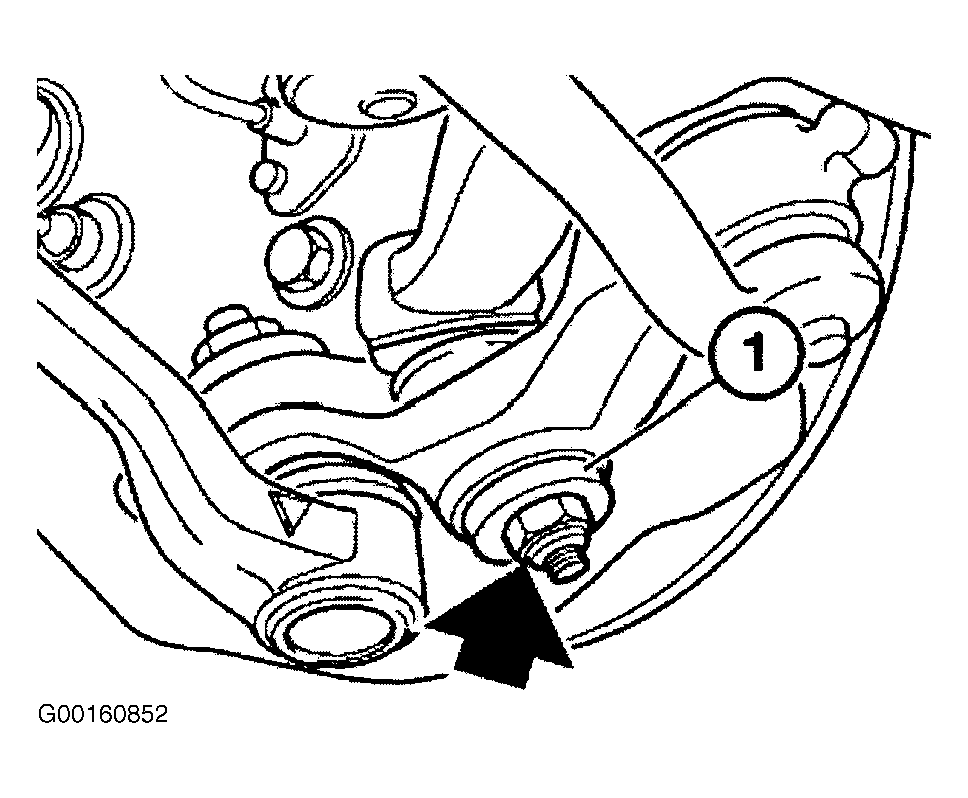

- Unfasten nut. See Fig 2.

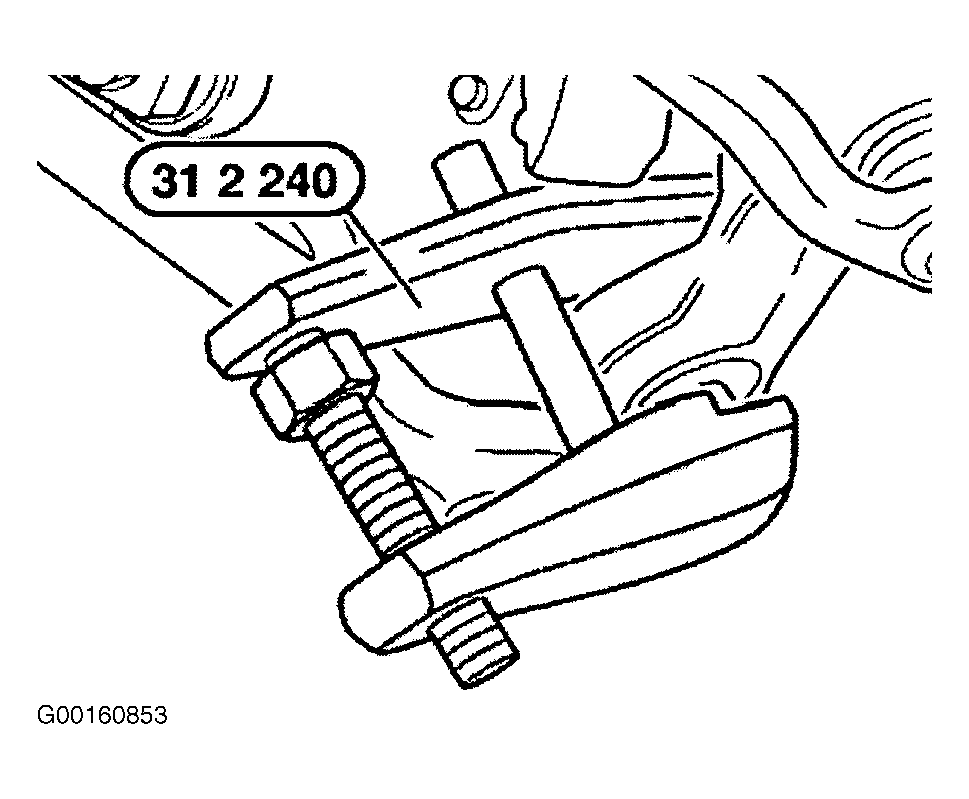

- Press tension strut belt off swivel bearing with special tool (31 2 240). See Fig 3.

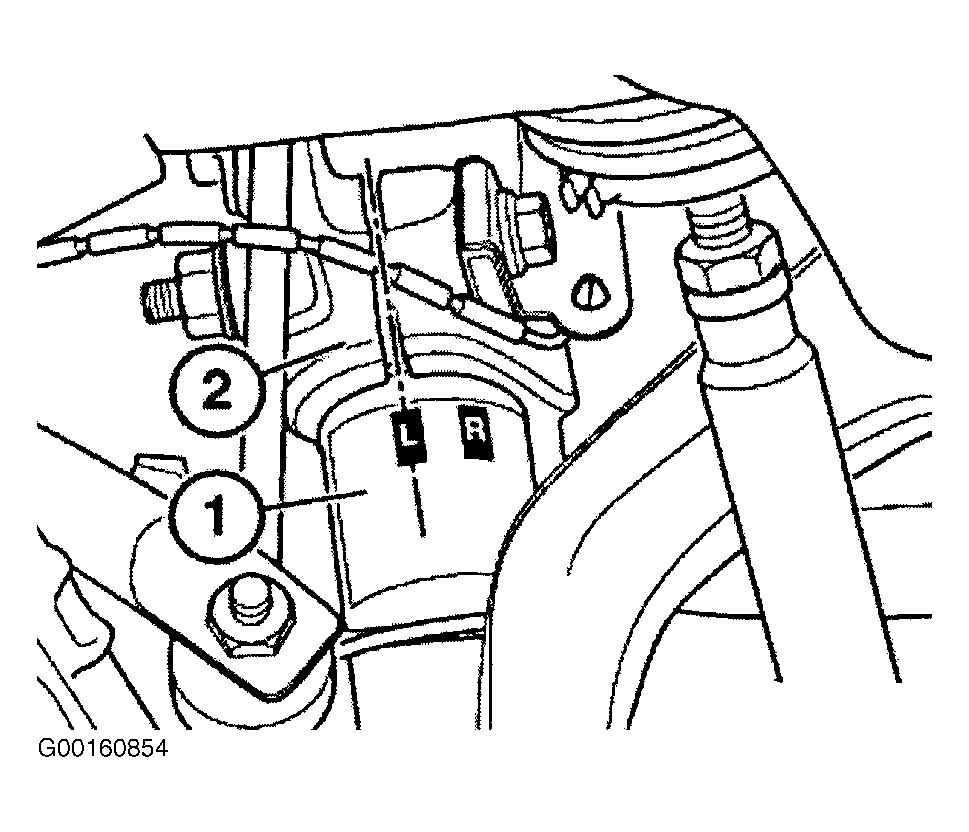

- Mark the installation position of the spring strut tube (1) in the swivel bearing (2) with paint. Never mark with scribing tool. Marking is required if the factory mark is still identifiable. R is installation position of right spring strut tube and L is left. See Figure.
- Unfasten nut. If necessary, expand the swivel bearing with special tool (31 2 200) and press downwards. Remove tension strut. See Figure.
