Tension Struts: Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 BMW 530i, 2003 BMW 525i, 2002 BMW 530i, 2002 BMW 525i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
- Press swivel bearing up to stop and note the mark indicating the installation position. Replace self-locking nut and tighten to specification. See TORQUE SPECIFICATIONS .
- Installation is reverse of removal. Insure all spigots and bores are free of grease. Replace self-locking nuts and use washer where removed. If necessary, brace on hex cap nut. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .

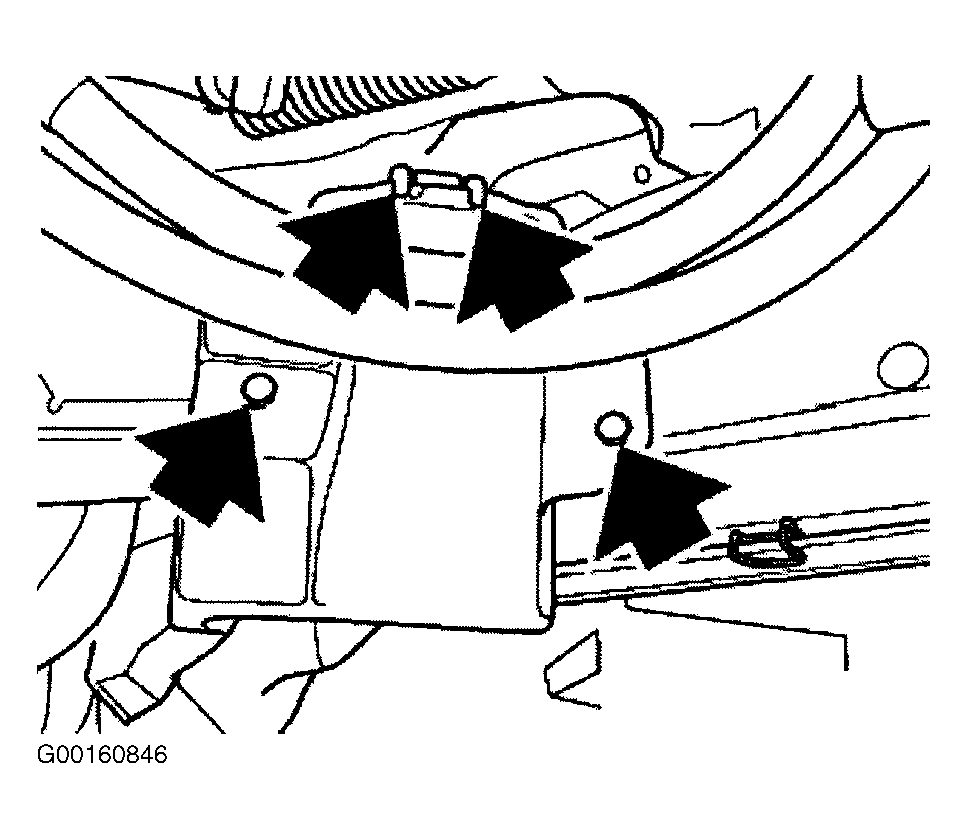

- Insert cap in clip. See Figure.
- If the tension struts were replaced, an axle alignment check must be performed. See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES under ADJUSTMENTS & INSPECTION.
