Swivel Bearing: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 BMW 530i, 2003 BMW 525i, 2002 BMW 530i, 2002 BMW 525i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Remove brake disc and ABS pulse sensor. See FRONT ABS PULSE SENSOR .
Unfasten tie rod end nut. See Figure.
Press off tie rod with special tool (31 2 240). See Figure.
Remove control arm from swivel bearing. See CONTROL ARM .
Remove tension strut from swivel bearing. See TENSION STRUTS .
Remove swivel bearing by pulling downwards.
Unfasten screws and remove wheel bearing. See Fig 1.
Fit protective plate (1) and cap (2) to new swivel bearing. Observe alignment of bore. See Fig 2.

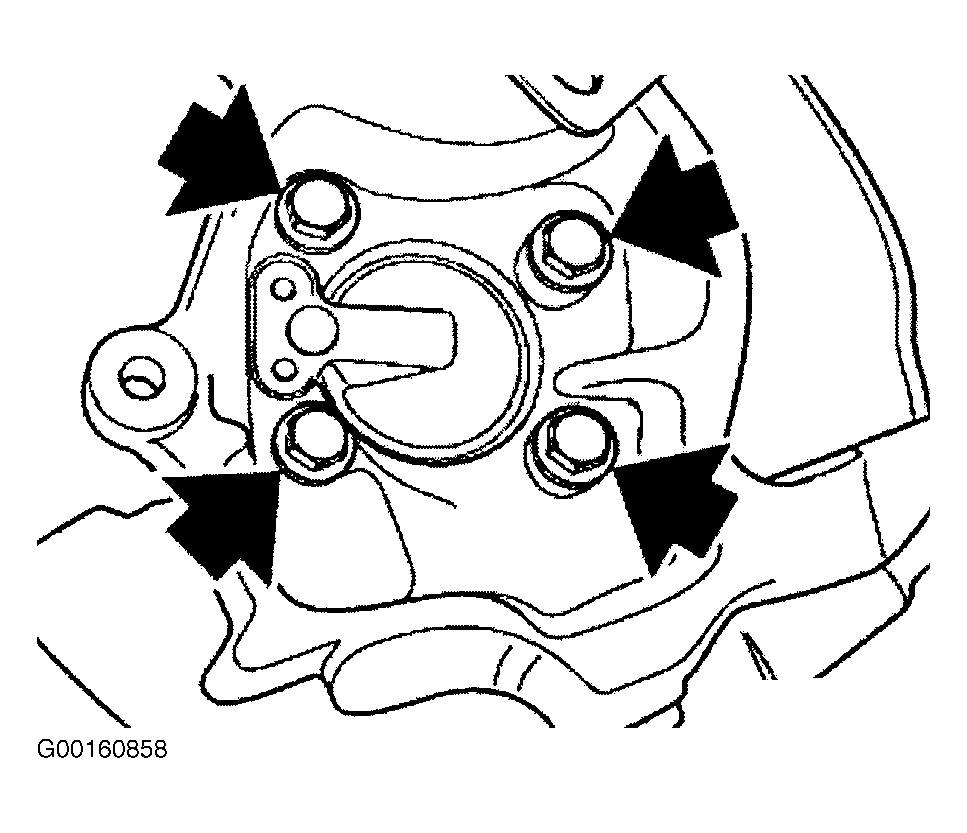

Fig 1: Locating Wheel Bearing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

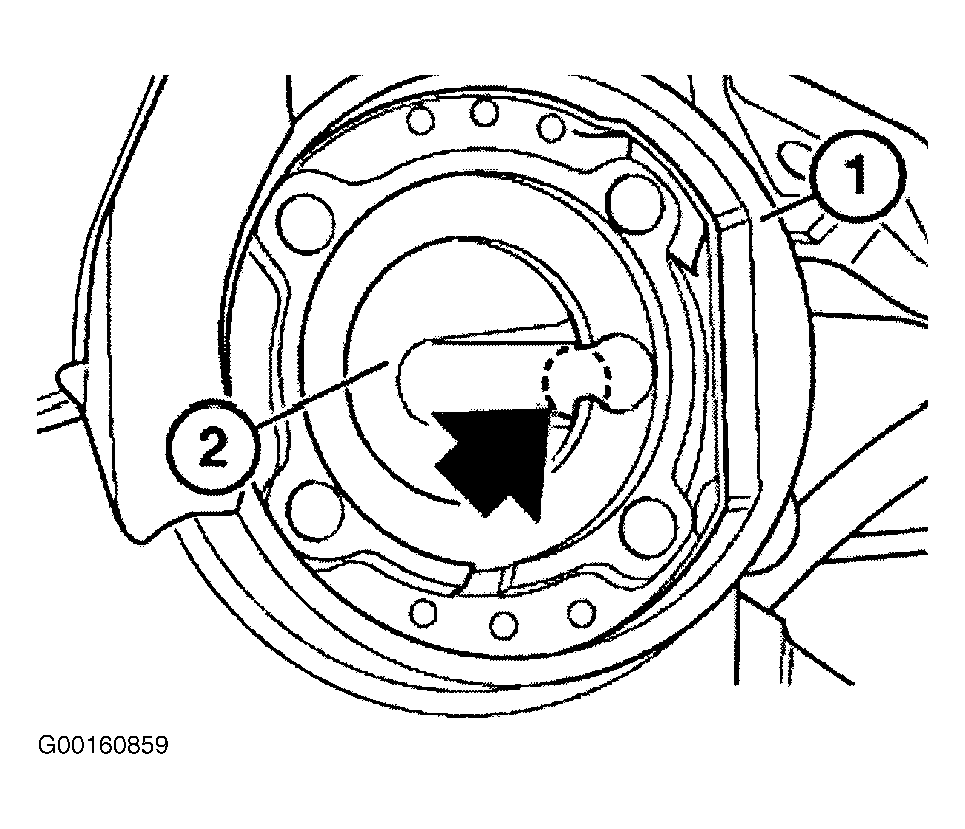

Fig 2: Fitting Protective Plate

Courtesy of BMW OF NORTH AMERICA, INC.
