Removal & Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 BMW 530i, 2003 BMW 525i, 2002 BMW 530i, 2002 BMW 525i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove tension strut. See TENSION STRUTS .
With a press and special tool (31 2 271/272), press rubber mount in and out of tension strut. See Fig 1.
Ensure rubber mount and tension strut bore are free of grease. Marking on rubber mount points towards marking on the tension strut. Maximum torsional tolerance is within 3 degrees. See Fig 2.
Protrusion (A) on each side should be equally large. See Fig 3.
Check alignment of front axle. See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES under ADJUSTMENTS & INSPECTION.

Fig 1: Using Special Tool (31 2 271)

Courtesy of BMW OF NORTH AMERICA, INC.

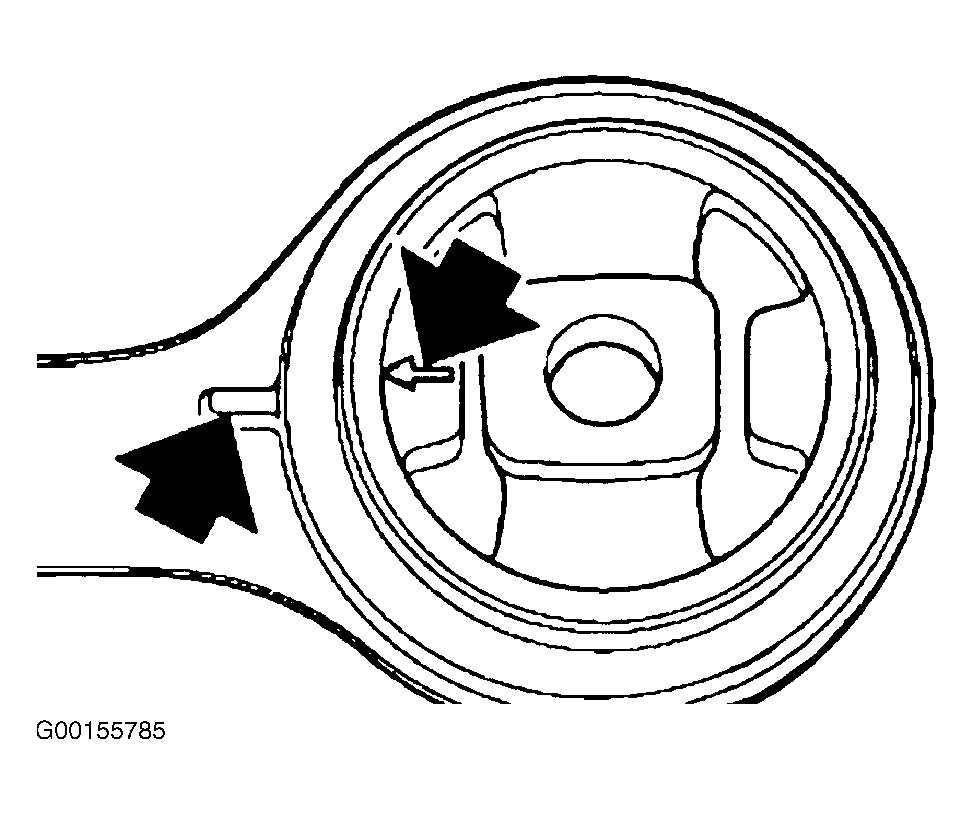

Fig 2: Matching Marks On Tension Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Installing Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
