Minimum set: Mechanical tools

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For levering out switch block on driver's door.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1

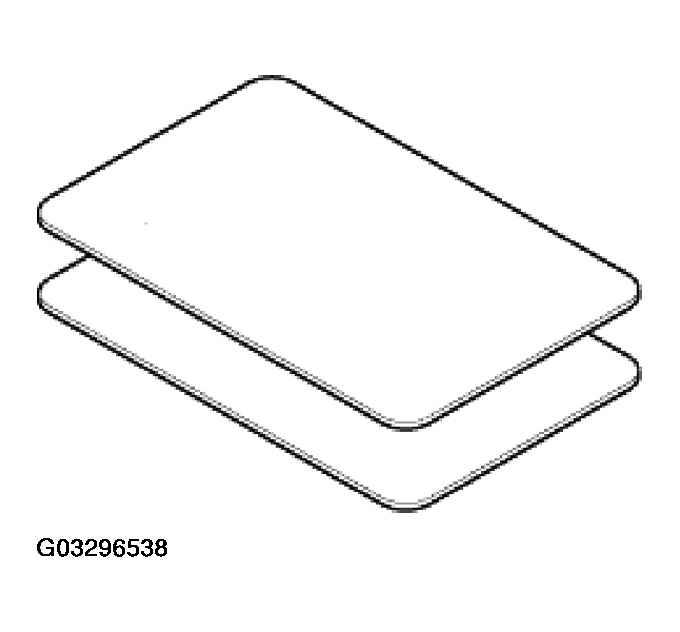

Fig 1: Identifying Disassembly Aid

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 15 99 (483)

Order number: 00 9 340

Disassembly aid (2)

Consisting of:

1 = 00 9 341 Disassembly aid, single

Note: Complete tool consists of 2 pieces
