Minimum set: Mechanical tools

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For straightening and assembly jobs on vehicle bodies, e.g. fitting trim panels, removing window weatherstrips, repairing small-scale dents, removing residual adhesive materials, measuring gap widths, levering out trim panel parts

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1

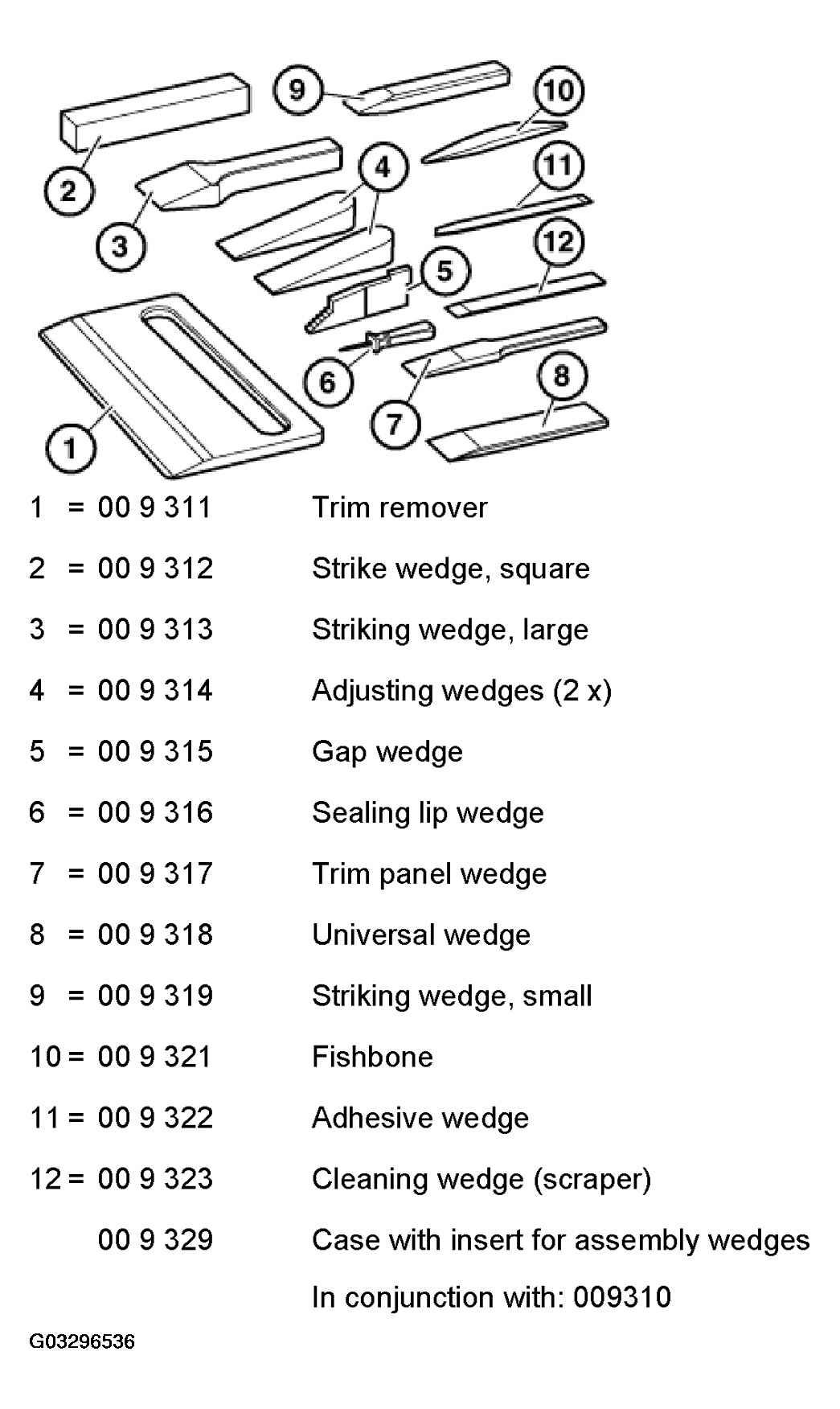

Fig 1: Identifying Assembly Wedges

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 02 97(174)

Order number: 00 9 310

Assembly wedges (13)

Consisting of:

1 = 00 9 311 Trim remover

2 = 00 9 312 Strike wedge, square

3 = 00 9 313 Striking wedge, large

4 = 00 9 314 Adjusting wedges (2 x)

5 = 00 9 315 Gap wedge

6 = 00 9 316 Sealing lip wedge

7 = 00 9 317 Trim panel wedge

8 = 00 9 318 Universal wedge

9 = 00 9 319 Striking wedge, small

10 = 00 9 321 Fishbone

11 = 00 9 322 Adhesive wedge

12 = 00 9 323 Cleaning wedge (scraper)

00 9 329 Case with insert for assembly wedges

In conjunction with: 009310
