Minimum set: Mechanical tools

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 4 230 and 11 7 380

Note: or tensioning timing chain

Engine: M50, M52, M52TU, M54, M56, M60, M62, M62VAN, N40, N45, N46, N52, S50B30, S50B32

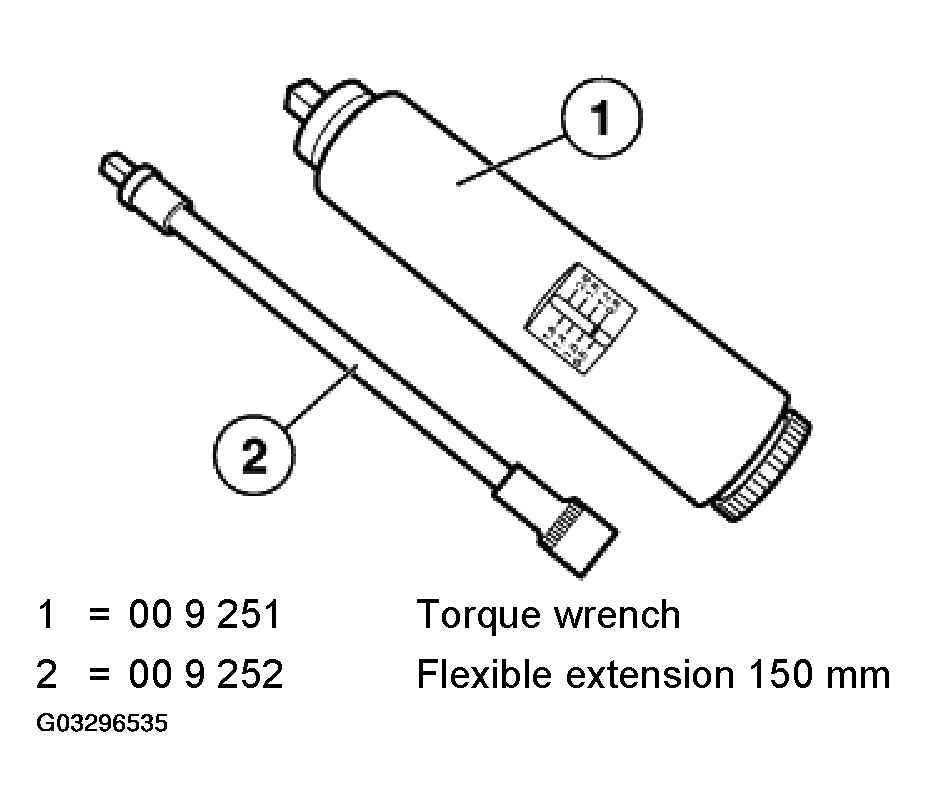

Fig 1: Identifying Torsion Angle Wrench With Flexible Extension

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: A13

SI number: 1 04 96 (049)

Order number: 00 9 250

Torsion angle wrench with flexible extension

Consisting of:

1 = 00 9 251 Torque wrench

Note: Torque range 0.6 ... 2.0 Nm

2 = 00 9 252 Flexible extension 150 mm
