00 4 210 Seat of reamers with guide cones 6, 7 and 8 mm

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For valve guides

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M52TU, M54, M56, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S62

SI number: 1 05 86(604)

Order number: 00 4 210

Seat of reamers with guide cones 6, 7 and 8 mm

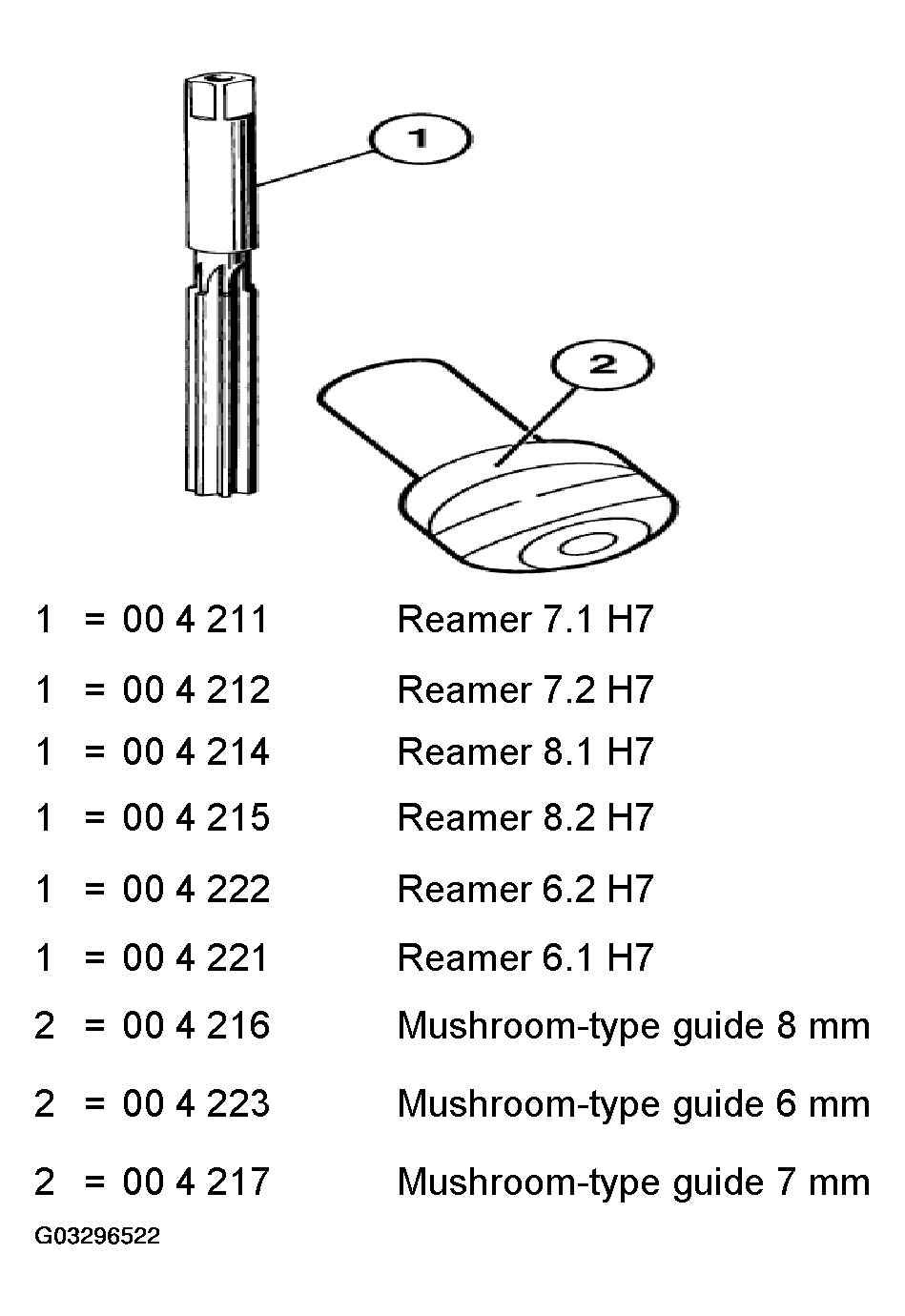

Fig 1: Identifying Seat Of Reamers With Guide Cones

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 00 4 211 Reamer 7.1 H7

Note: Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51

1 = 00 4 212 Reamer 7.2 H7

Note: Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51

1 = 00 4 214 Reamer 8.1 H7

Note: Engine: M10, M30

1 = 00 4 215 Reamer 8.2 H7

Note: Engine: M10, M30

1 = 00 4 222 Reamer 6.2 H7

Note: Engine: M44, M52, M60, M62, as from 9/92 M42, M50, M51

1 = 00 4 221 Reamer 6.1 H7

Note: Engine: M44, M52, M60, M62, as from 9/92 M42, M50, M51

2 = 00 4 216 Mushroom-type guide 8 mm

2 = 00 4 223 Mushroom-type guide 6 mm

2 = 00 4 217 Mushroom-type guide 7 mm
