Minimum set: Mechanical tools

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: To hold the engine when removing and installing the front axle support, the oil sump and the transmission

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

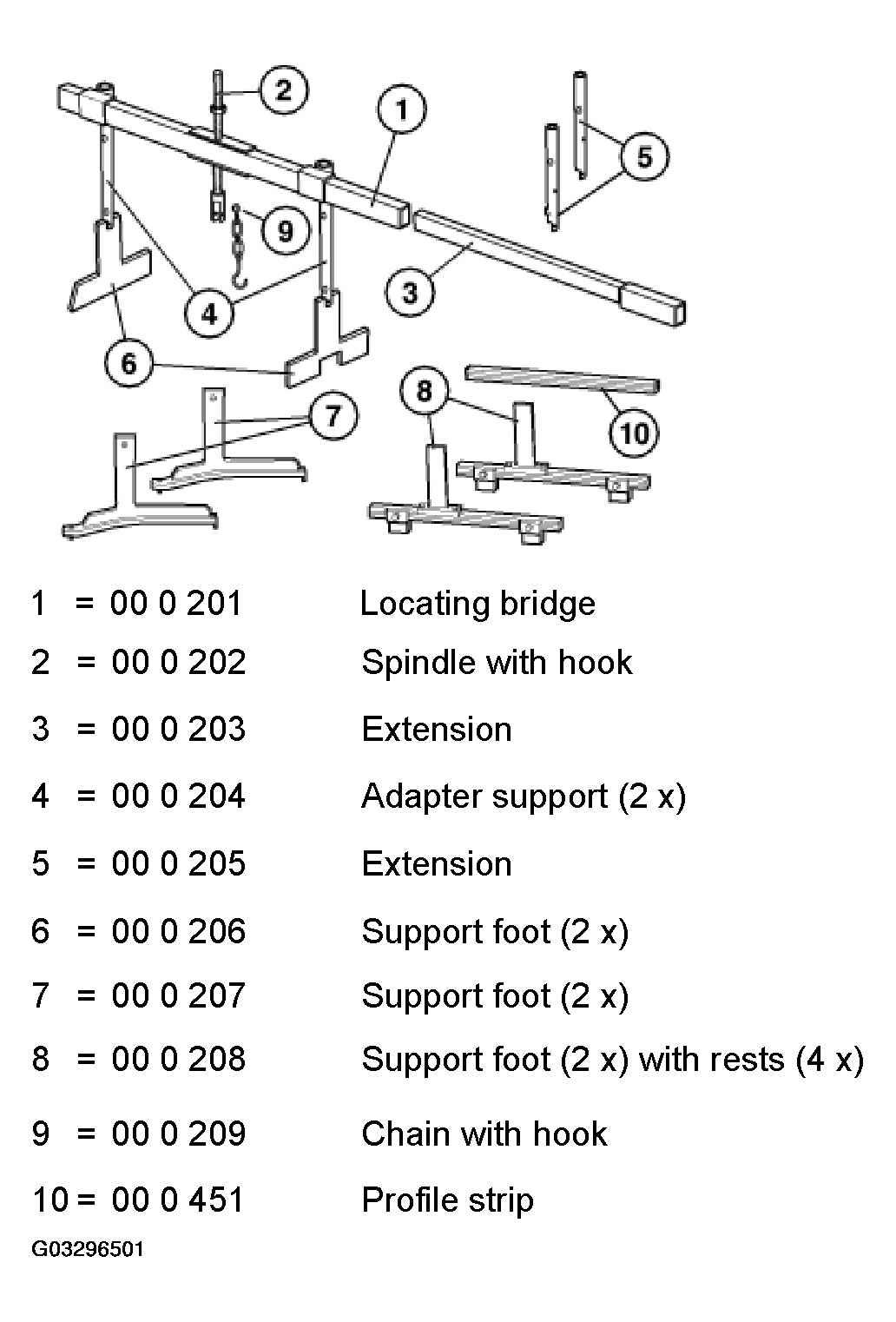

Fig 1: Identifying Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single

SI number: 1 14 01 (766)

Order number: 00 0 200

Cross member

Consisting of:

1 = 00 0 201 Locating bridge

2 = 00 0 202 Spindle with hook

3 = 00 0 203 Extension

Note: For extending locating bridge 00 0 201 Model series: E65

4 = 00 0 204 Adapter support (2 x)

In conjunction with: 00 0 200

5 = 00 0 205 Extension

Note: Model series: R50, R53

6 = 00 0 206 Support foot (2 x)

Note: Model series: E30, E31, E32, E34, E36, Z3 6-cylinder engines only

7 = 00 0 207 Support foot (2 x)

Note: Model: Z3/4-cylinder engines only

8 = 00 0 208 Support foot (2 x) with rests (4 x)

Note: Model series: E38, E39, E46, E60, E65

9 = 00 0 209 Chain with hook

Note: Version as 11 0 003

10 = 00 0 451 Profile strip

Note: Model series: E85
