00 0 180 Cable cabinet II, complete

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For extended accommodation of adapter leads as well as measuring and test equipment

Series: All models

SI number: 0 02 99 (399)

Order number: 00 0 180

Cable cabinet II, complete

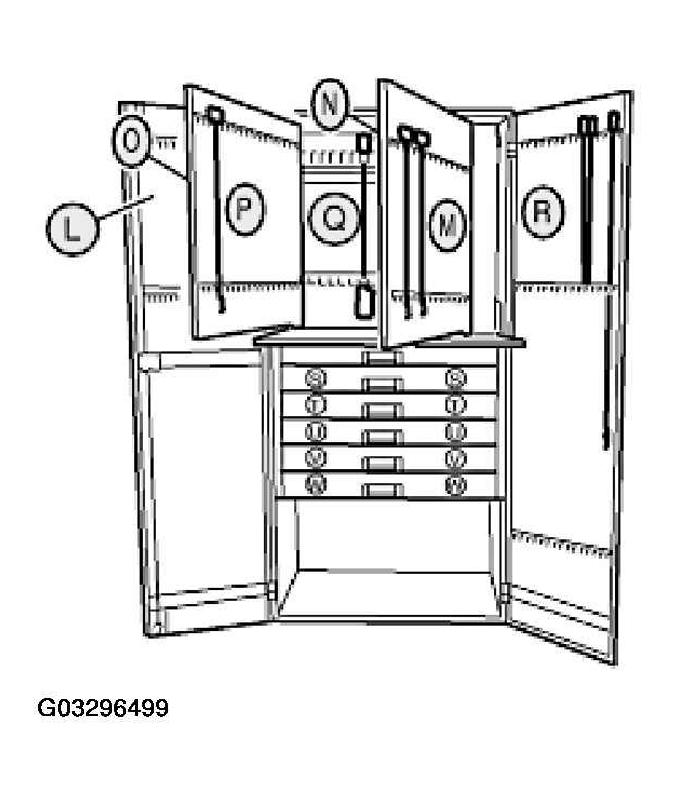

Fig 1: Identifying Cable Cabinet II Complete

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 00 0 191 Cable cabinet

Note: Not incl. contents or accessories, basic for cable cabinets I and II

2 = 00 0 182 Film sheet set II

Note: For identifying storage locations in cable cabinet II - applicable status in each case

3 = 00 0 183 Cable holder set - H -

Note: For cable cabinet II only 16 guide rails each with 15 supporting loops for accommodating adapter leads - applicable status in each case

4 = 00 0 194 Cable carrier - B -

Note: For accommodating engine test leads For expanding cable suspensions in cable cabinets I and II

5 = 00 0 184 CD holder

Note: For accommodating two program CDs with sleeve - Can be fitted in cable cabinets I and II

6 = 00 0 195 Swivel board frame

Note: Carrier for cable suspensions in cable cabinets I and II

7 = 00 0 186 Drawer block

Note: For cable cabinet II only

8 = 00 0 187 Holder set for test adapters

Note: For cable cabinet II only

9 = 00 0 188 Supporting loop set (optional)

Note: 20 supporting loops for cable holder - H - For expanding cable suspensions in cable cabinets I and II

10 = 00 0 199 Index

Note: For locating BMW special tools for motor-vehicle electrics in cable cabinets I and II
