00 0 040 Special tool board IV complete

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.

Note: Size 2 m x 1 m

Series: All models

Storage location: Tool cabinet

Order number: 00 0 040

Special tool board IV complete

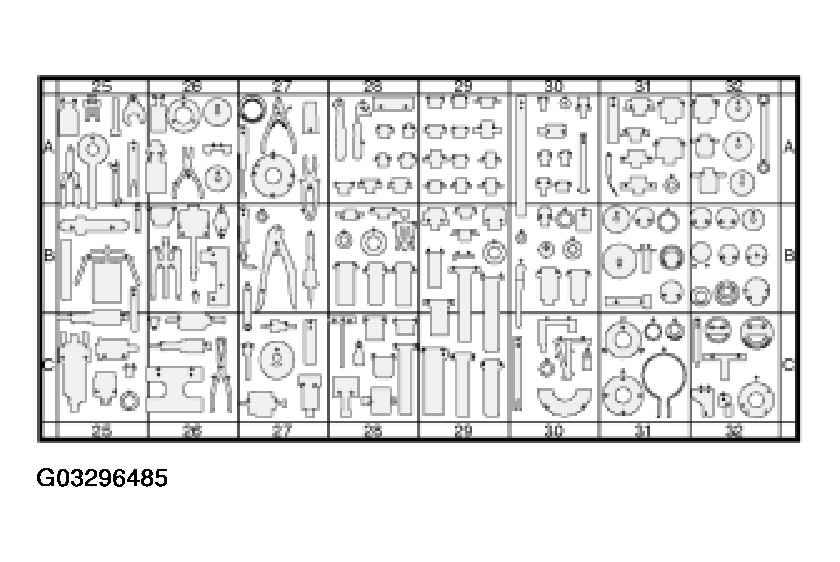

Fig 1: Identifying Board IV Complete

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

3 = 00 0 043 Hook set for films 10, 11 and 12

4 = 00 0 044 Film 10 (left)

Note: For fields A/B/C 25 ... 27

5 = 00 0 045 Film 11 (center)

Note: For fields A/B/C 27/28 and 29/30

6 = 00 0 046 Film 12 (right)

Note: For fields A/B/C 30 ... 32
