Installation Location

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2006 BMW 530i, 2006 BMW 525i, 2006 BMW 330xi, 2006 BMW 330i, and 2006 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

The individual components of the hydraulically assisted steering system are housed in the engine compartment. The Servotronic valve is on the steering box.

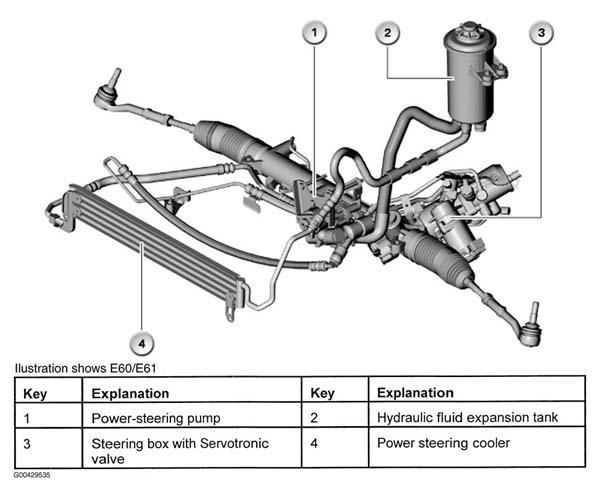

Fig 1: Identifying Hydraulic Steering Gear With Servotronic
G00429535Courtesy of BMW OF NORTH AMERICA, INC.
