11 7 340 Gauge (1.5°) with alignment pin
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL
| Note: | For setting camshaft lead angle (control diagram) when installing VANOS adjustment unit |
| Engine: | S50B32, S54 |
| Storage location: | B13 |
| SI number: | 1 07 95(964) |
| Order number: | 11 7 340 |

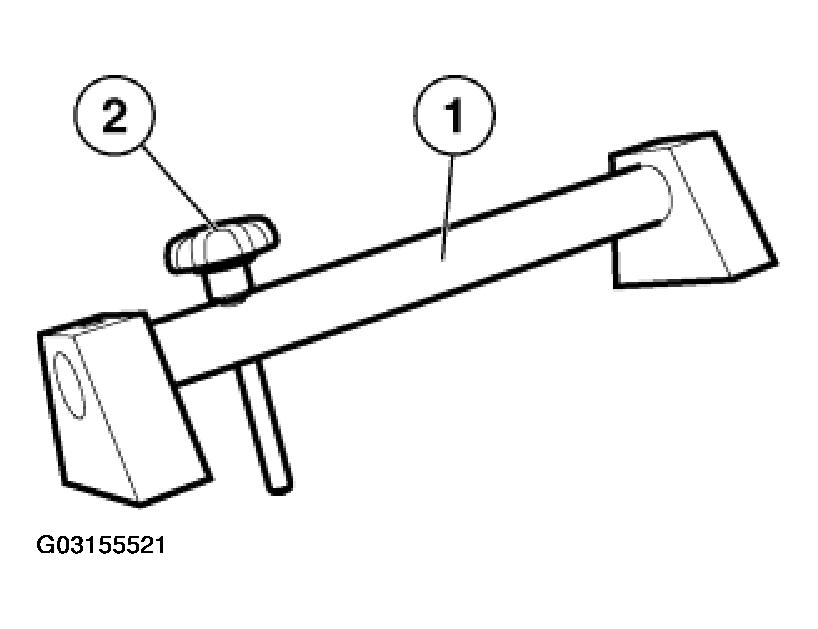

| Gauge (1.5°) with alignment pin | |
| Consisting of: | |
| 1 = 11 7 341 | Gauge 1.5° (basic body) |
|
NOTE:
Engine: S50
|
|
| 2 = 11 7 342 | Lock pin |
|
NOTE:
Engine: S50, S54
|
|
