11 0 070 Engine hoist
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL
| Note: | For removing and installing engines |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17 |
| SI number: | 1 16 96 (107) |
| Order number: | 11 0 070 |

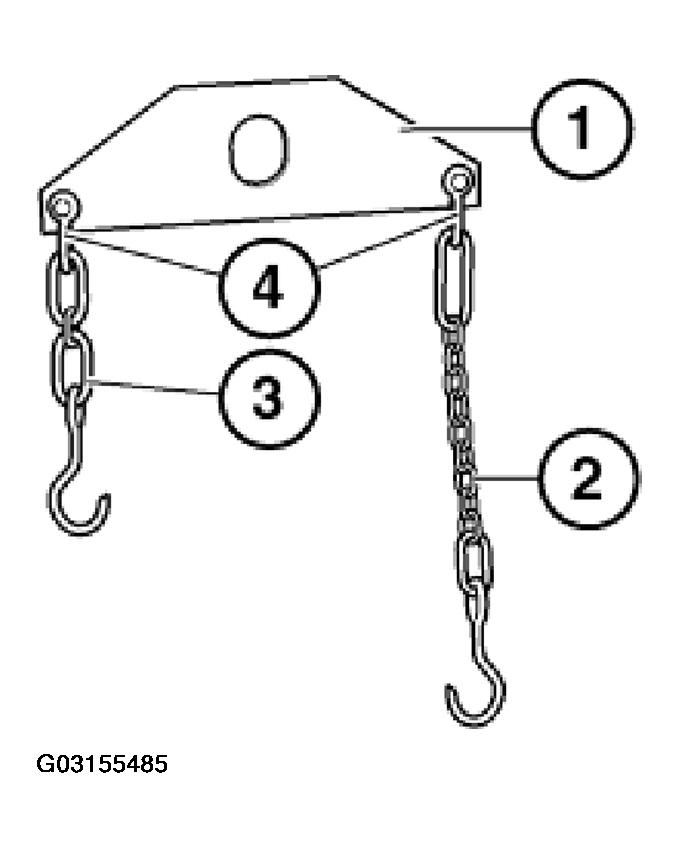

| Engine hoist | |
| Consisting of: | |
| 1 = 11 0 071 | Lifting beam |
| 2 = 11 0 072 | Carrying chain, long |
| 3 = 11 0 073 | Carrying chain, short |
| 4 = 11 0 079 | Shackle (2 x) |
