11 0 000 Engine lifter for removing and installing engines
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SPECIAL TOOL
| Engine: | M10, M47T2, M47TU, M52, M52TU, M54, M56, M60, M62, M67, M70, M73, N52, N62, N73, S14, S54, S62, W10, W11 |
| SI number: | 1 13 94 (888) |
| Order number: | 11 0 000 |

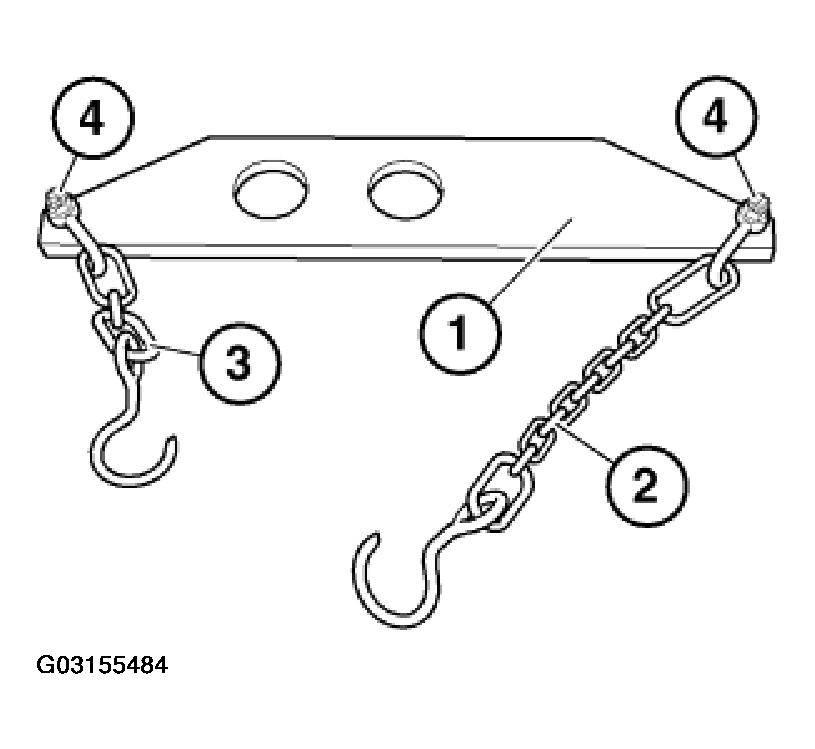

| Engine lifter for removing and installing engines | |
| Consisting of: | |
| 1 = 11 0 001 | Lifting beam |
| 2 = 11 0 002 | Chain, long |
| 3 = 11 0 003 | Chain, short |
| 4 = 11 0 009 | Shackle (2 x) |
