17 22 010 Removing and installing/replacing heat exchanger for automatic transmission
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 17 0 030
Necessary preliminary tasks:
- After completing this operation, check fluid level in automatic transmission.
- Drain off and top up coolant. Refer to 17 00 005 DRAINING OFF AND TOPPING UP COOLANT (M54) .
Recycling
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.
Illustrations show E46.

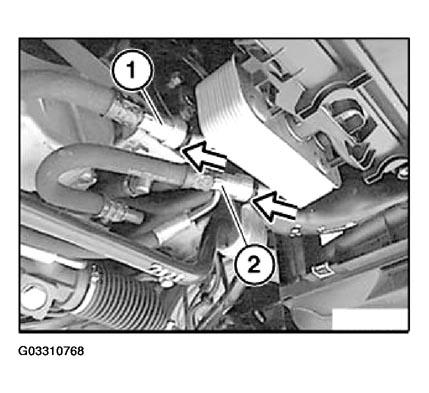

Unlock lines (1 and 2) with special tool 17 00 30 and detach.
Catch and dispose of escaping transmission fluid.
Illustrations show E46.

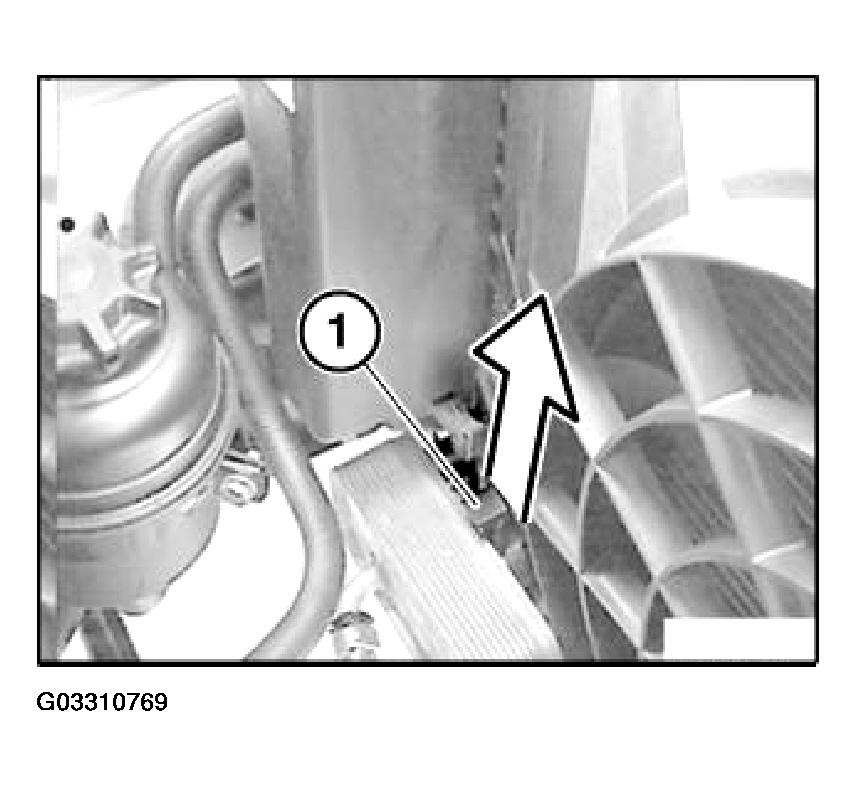

Pull lock (1) upwards and detach heat exchanger towards rear.
Installation:
Press lock (1) downwards before pushing on heat exchanger. The lock must snap audibly into place when the heat exchanger is forced on.

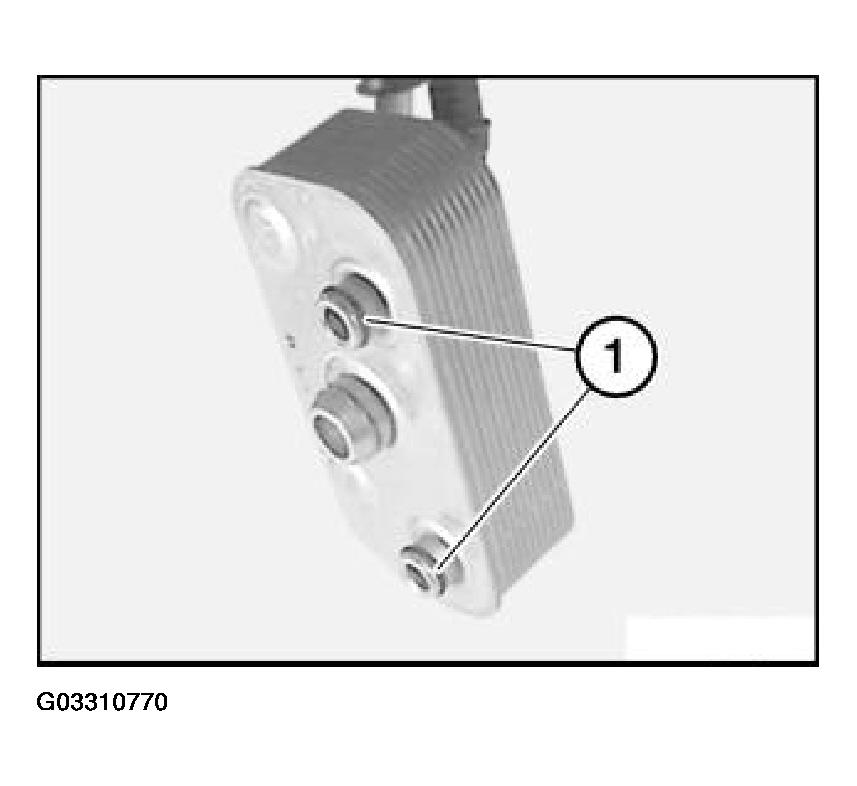

Check sealing rings (1), replace if necessary.
