12 42 550 Removing and installing/replacing battery positive lead between starter motor and jump start terminal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Disconnect BATTERY NEGATIVE LEAD

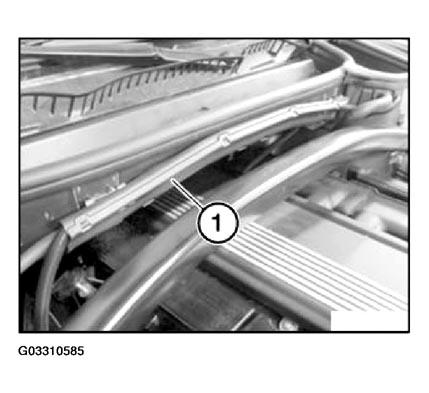

Unclip cover (1).

Fig 1: Unclipping Cover

G03310585

Courtesy of BMW OF NORTH AMERICA, INC.

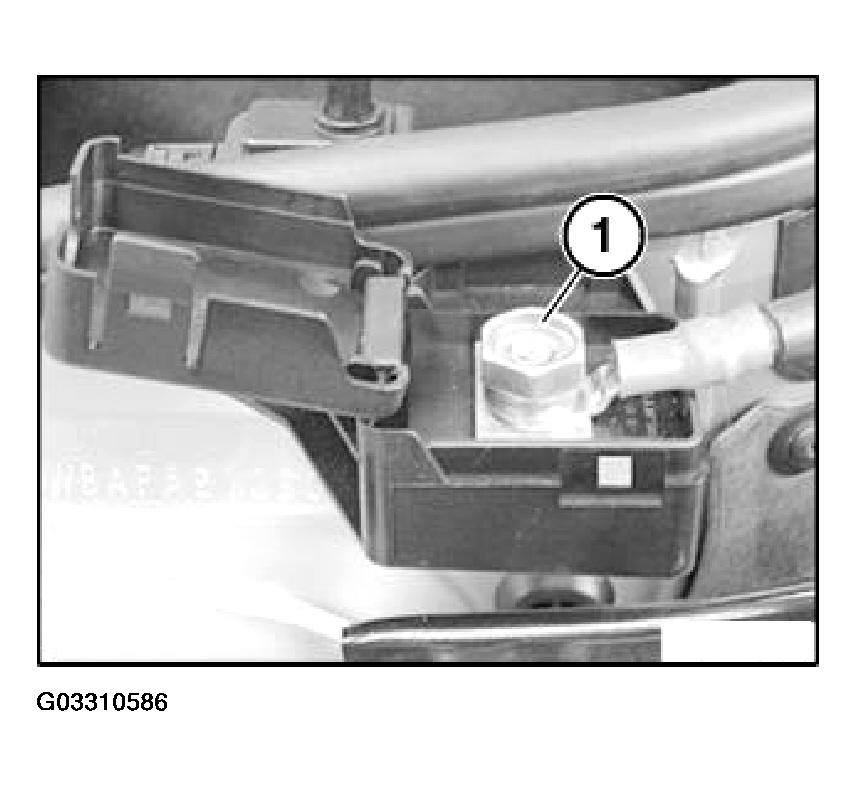

Open protective cap.

Fig 2: Unscrewing Nut

G03310586

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Tightening torque 12 51 4AZ .

Remove cover for fuel injectors.

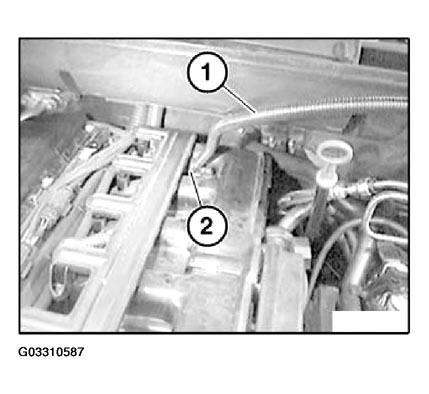

Unclip battery positive lead (1) from holder (2).

Fig 3: Unclipping Battery Positive Lead From Holder

G03310587

Courtesy of BMW OF NORTH AMERICA, INC.

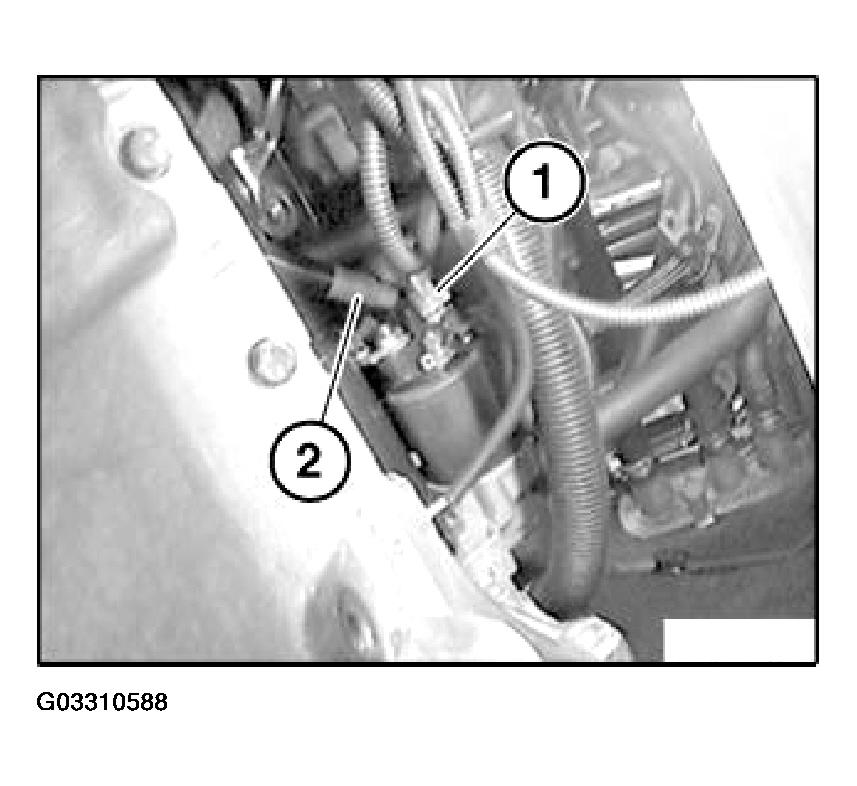

Unscrew nut (1).

Fig 4: Detaching Battery Positive Lead From Starter Motor

G03310588

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 12 41 4AZ .

Detach battery positive lead (2) from starter motor and remove.

NOTE: Check stored fault messages.

Now clear the fault memory.
