12 42 530 Removing and installing/replacing battery positive lead (between starter motor and alternator)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Disconnect BATTERY NEGATIVE LEAD
Remove INTAKE FILTER HOUSING

Version 1:

Release nut and remove battery positive lead (2) from alternator.

Installation:

The positive power supply of the preheating control unit is also connected to terminal 30 of the alternator. This lead must be connected without fail, otherwise the preheating system will fail.

Tightening torque 12 31 1AZ .

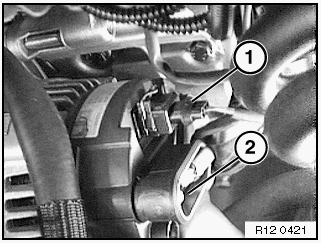

Fig 1: Identifying Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Release nut (2) and remove battery positive lead from alternator.

Tightening torque 12 31 1AZ .

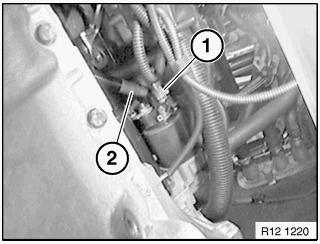

Fig 2: Identifying Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Tightening torque 12 41 4AZ .

Detach battery positive lead (2) from starter motor and remove.

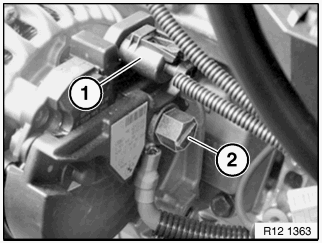

Fig 3: Identifying Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Check stored fault messages.

Now clear the fault memory.
