11 34 560 Replacing all valve stem seals (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 1 200
11 1 480
11 1 960

(cylinder head removed)

Preliminary tasks are described in Disassembling and assembling cylinder head. Refer to 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52 / S52 / M52TU / M54 / M56) .

Remove all valve springs. Refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52 / S52 / M52TU / M54 / M56) .

Remove valve stem seal with special tool 11 1 480.

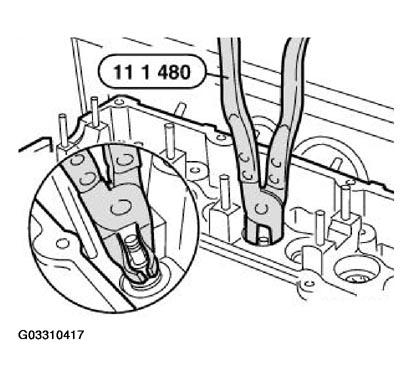

Fig 1: Removing Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960.

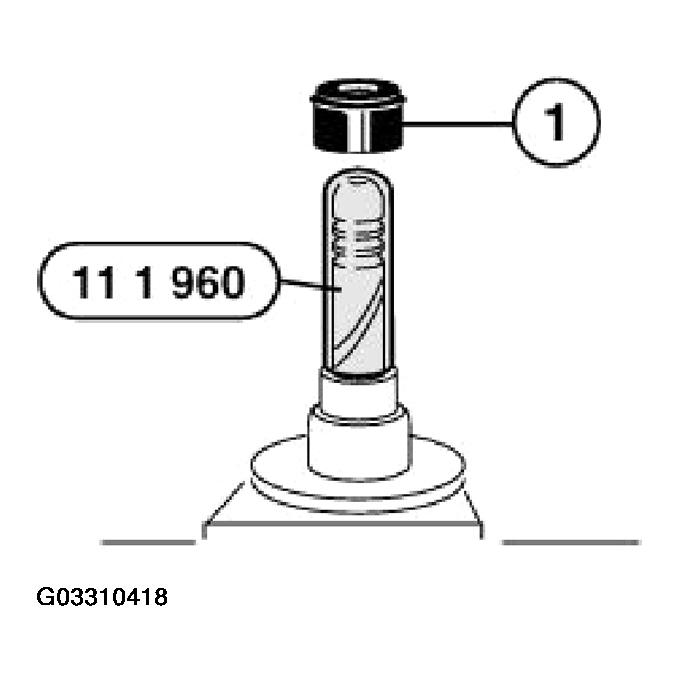

Fig 2: Installing Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Coat new valve stem seal (1) with oil and install.

Press valve stem seal firmly home by hand with special tool 11 1 200.

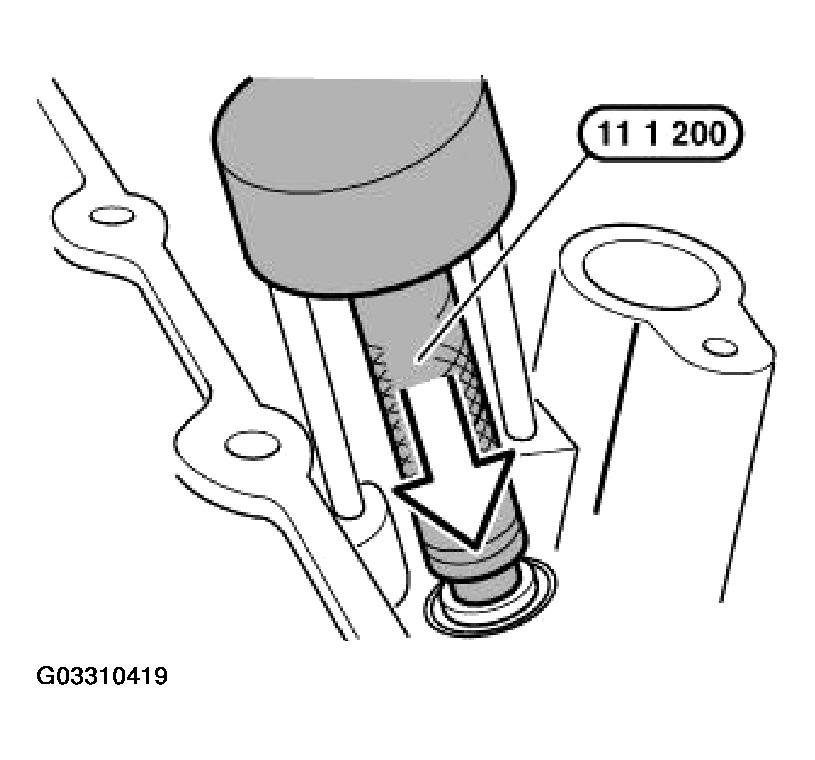

Fig 3: Pressing Valve Stem Seal With Special Tool
