Checking engine oil pressure with DIS Tester

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.

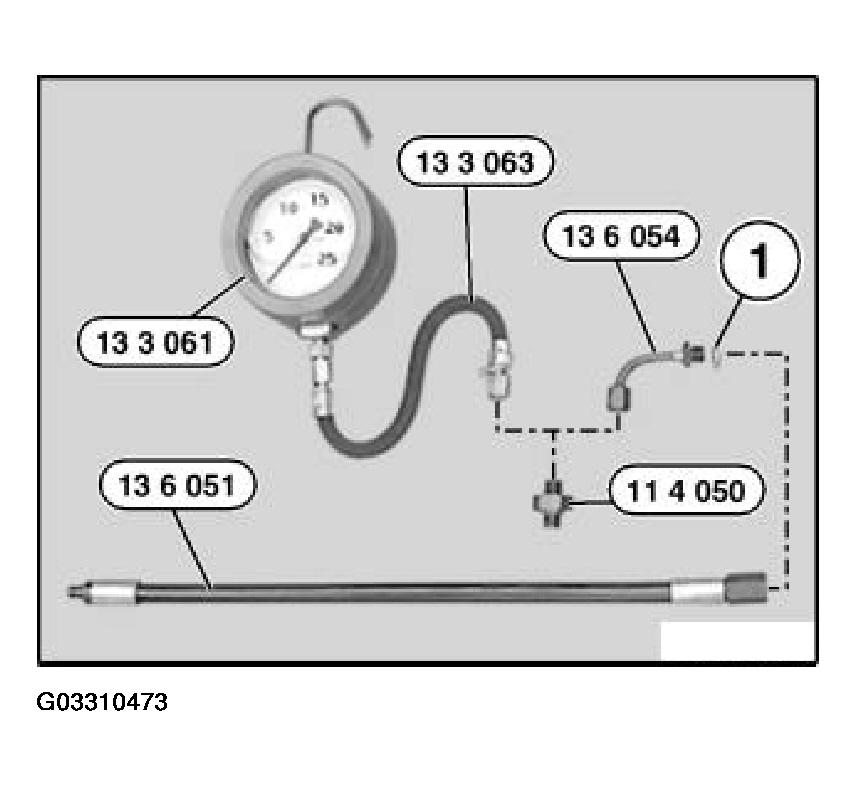

Fig 1: Checking Engine Oil Pressure
G03310473Courtesy of BMW OF NORTH AMERICA, INC.
