11 14 141 Replacing radial seal in lower timing case cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 2 380
11 2 383
11 2 385
11 3 280

NOTE: This repair instruction is valid for the following engines:

M50/M52/M52TU/M54/M56
S52

Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING OR REPLACING VIBRATION DAMPER (M52TU / M54 / M56) .

NOTE: Version where vibration damper and hub are two parts:
Remove hub for vibration damper.

Fit special tool 11 2 383 to crankshaft.

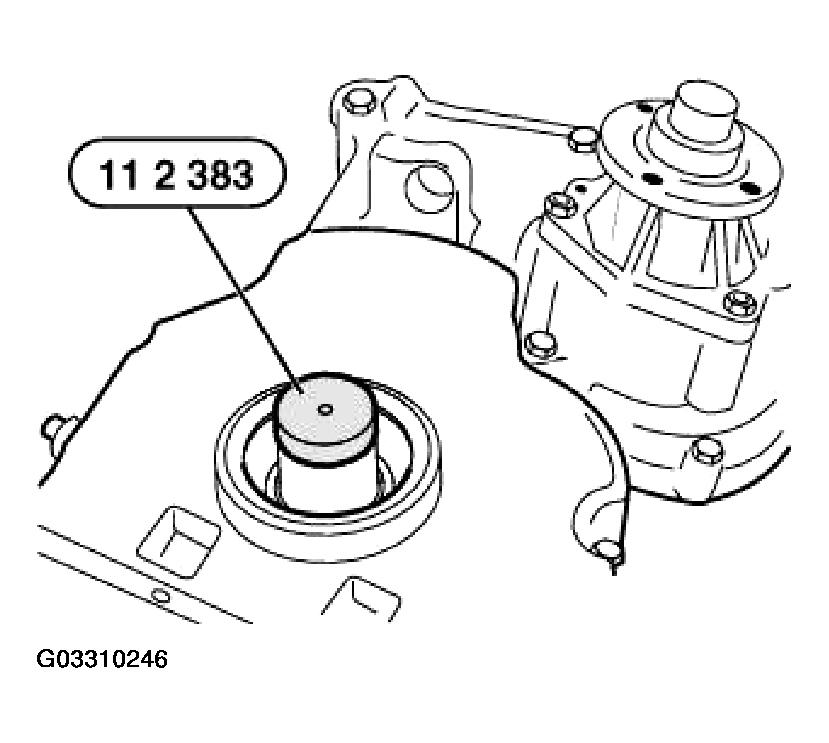

Fig 1: Fitting Special Tool To Crankshaft

G03310246

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 2 385 to crankshaft.

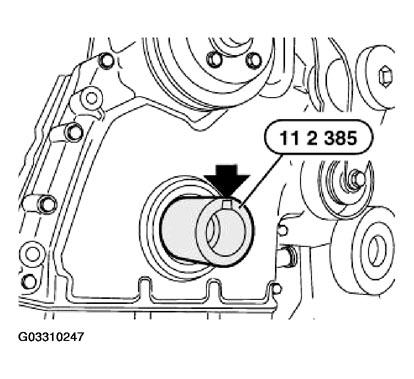

Fig 2: Aligning Groove Of Special Tool

G03310247

Courtesy of BMW OF NORTH AMERICA, INC.

Align groove of special tool 11 2 385 to featherkey of crankshaft.

NOTE: Special tool 11 2 385 centers special tool 11 2 380.

Screw in special tool 11 2 380 until it has made firm contact with radial seal.

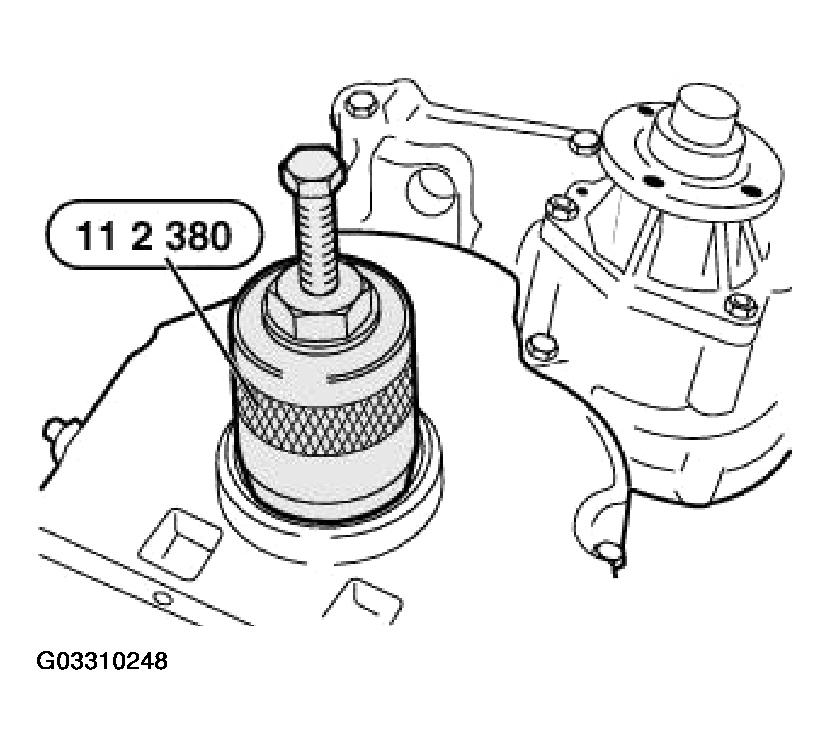

Fig 3: Removing Radial Seal

G03310248

Courtesy of BMW OF NORTH AMERICA, INC.

Remove radial seal by tightening screw on special tool.

Installation:

Coat sealing lips of new radial sealing ring with oil.

Using special tool 11 3 280 and centering screw, install new radial seal flush with timing case cover.

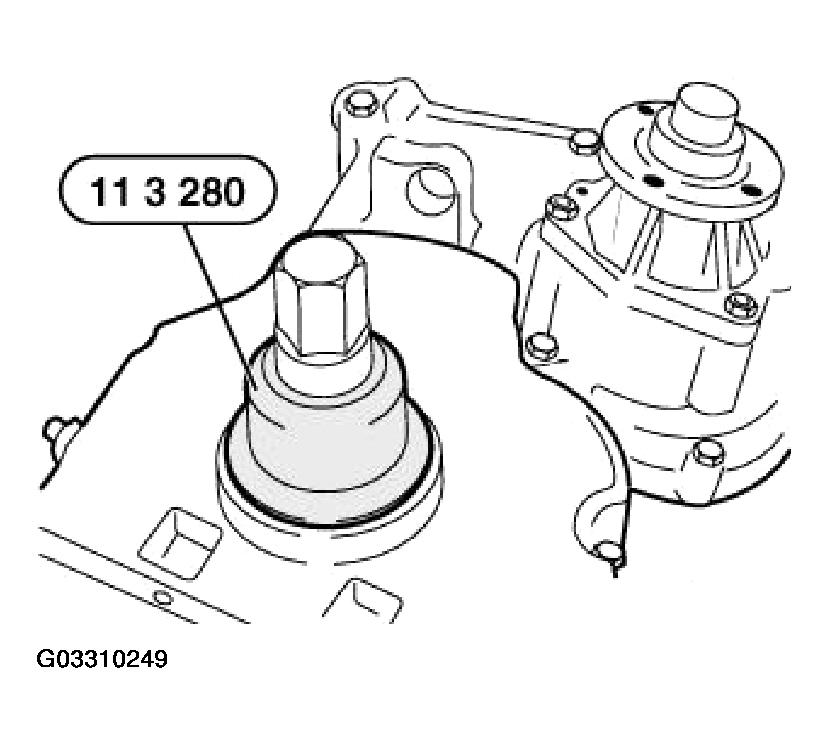

Fig 4: Installing Radial Seal

G03310249

Courtesy of BMW OF NORTH AMERICA, INC.
