Special tools required:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

11 2 170

(clutch removed)

Lock flywheel with special tool 11 2 170.

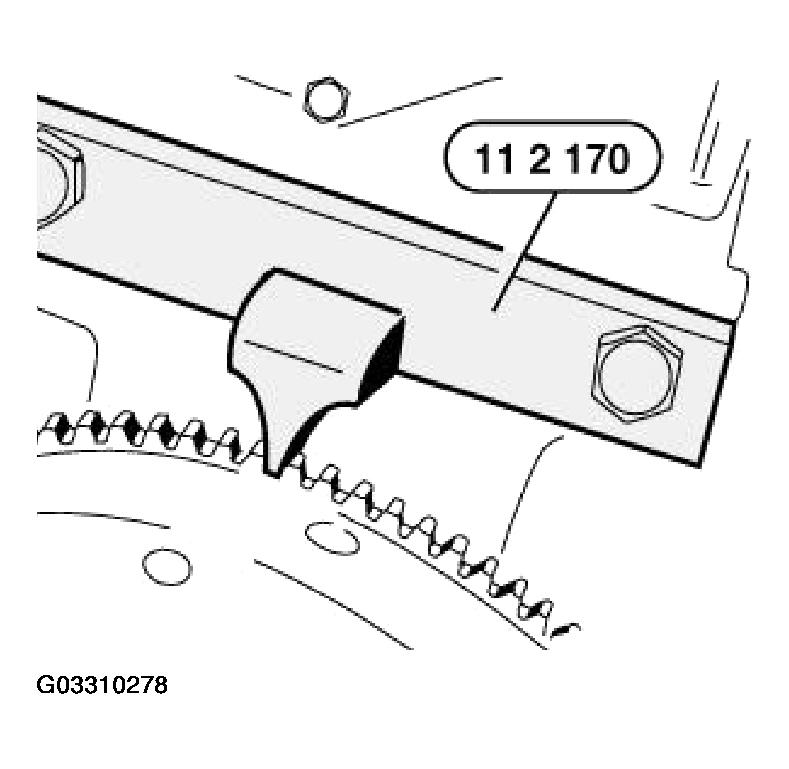

Fig 1: Locking Flywheel With Special Tool

G03310278

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove flywheel.

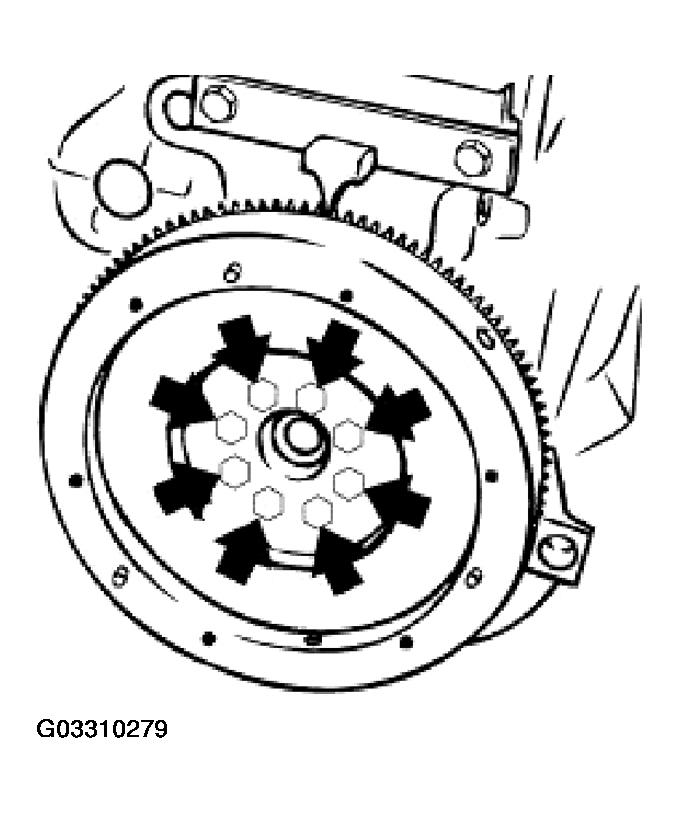

Fig 2: Removing Flywheel

G03310279

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check dowel sleeve for damage and correct installation position.

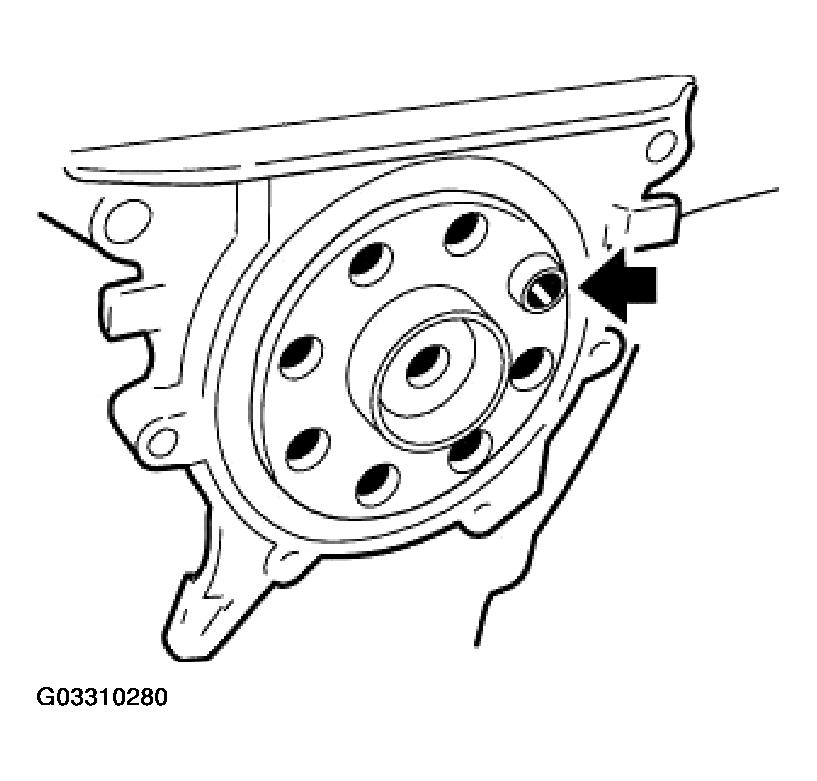

Fig 3: Checking Dowel Sleeve

G03310280

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

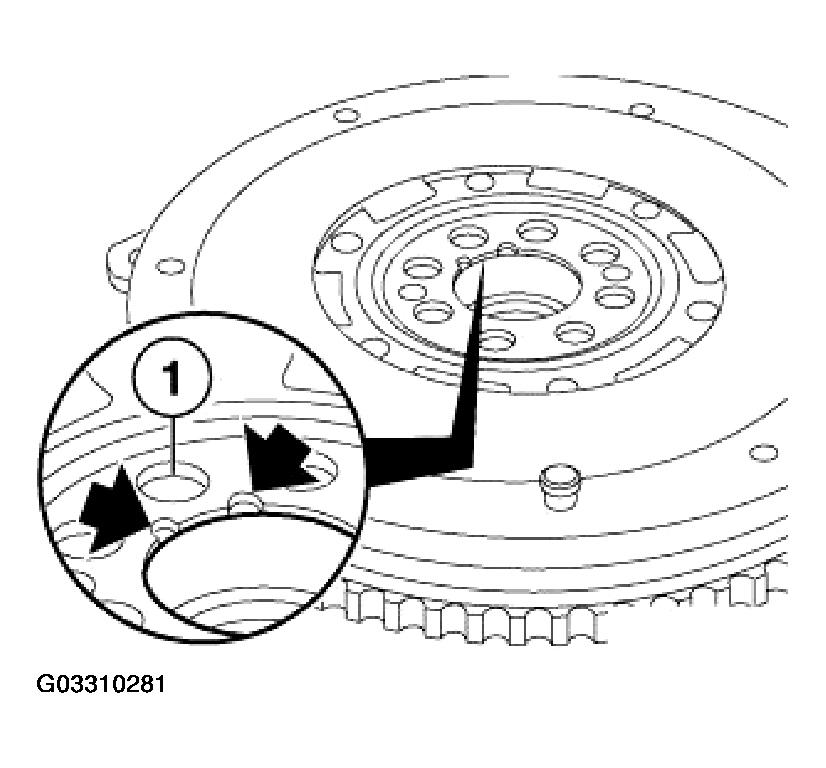

Fig 4: Identifying Position Of Dowel Sleeve In Dual-Mass Flywheel

G03310281

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean thread and install new micro-encapsulated screws.

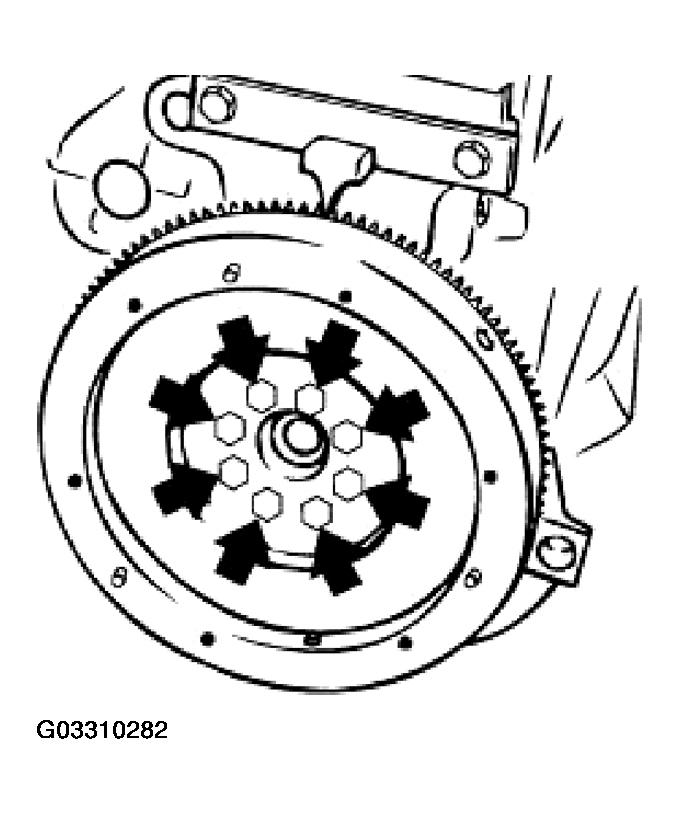

Fig 5: Installing Micro-Encapsulated Screws

G03310282

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 22 1AZ. Refer to ENGINE - TIGHTENING TORQUES .
