11 31 505 Adjusting camshaft timing (M52TU / M54 / M56): Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 250
11 2 300
11 3 240
11 3 244
11 3 292
11 4 220
11 5 180
11 6 150

Before carrying out adjustment work: check camshaft timing. Refer to 11 31 005 CHECKING CAMSHAFT TIMING (M52TU / M54 / M56) .

Crank engine in direction of rotation until cam tips on inlet and exhaust camshafts on 1st cylinder face one another.

Fig 1: Adjusting Position Of Cam Tips

Courtesy of BMW OF NORTH AMERICA, INC.

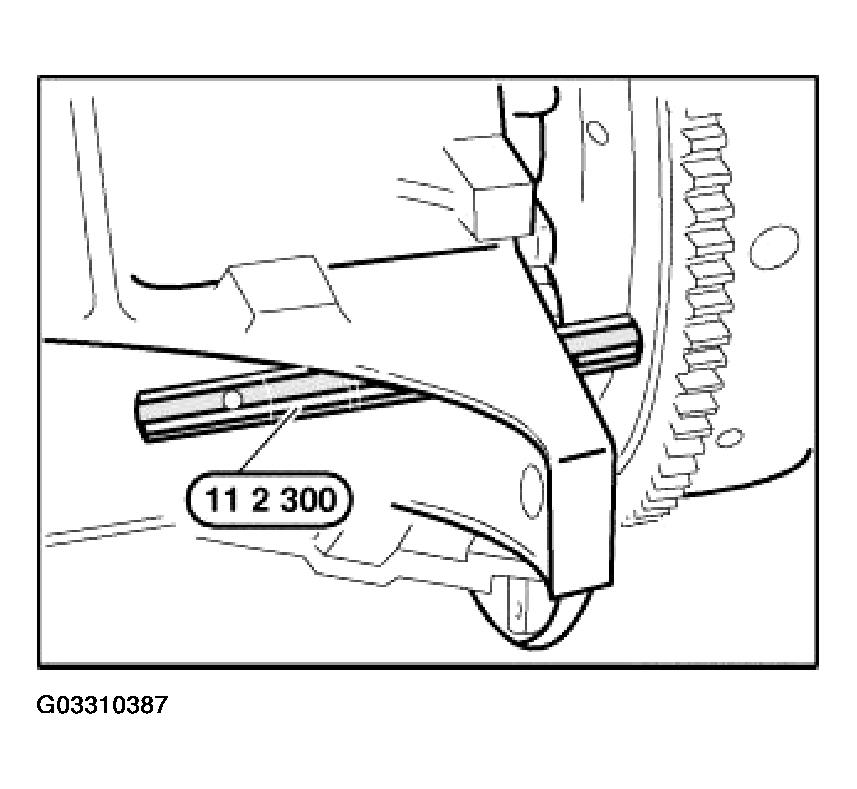

Secure crankshaft with special tool 11 2 300 in TDC position of 1st cylinder.

Fig 2: Securing Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.
