11 31 001 Replacing camshaft (M52TU / M54 / M56): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installation of camshafts is described separately from removal. The assembly sequence for removal and installation is different.

NOTE: Camshafts, bearings and bearing caps, friction washers, all splines on toothed shafts and spline hubs must be oiled before installation.

IMPORTANT: The bucket tappets expand when not subjected to load by the camshaft and therefore require some time before they can be pushed back down. During a rapid assembly sequence, the "closed" valves may still be open and be in contact with the piston.

Comply with following waiting periods after installing camshaft and before cranking engine back to TDC position.

Room temperature (20°C) 4 mins
10°C... 20°C 11 mins
0°C... 10°C 30 mins

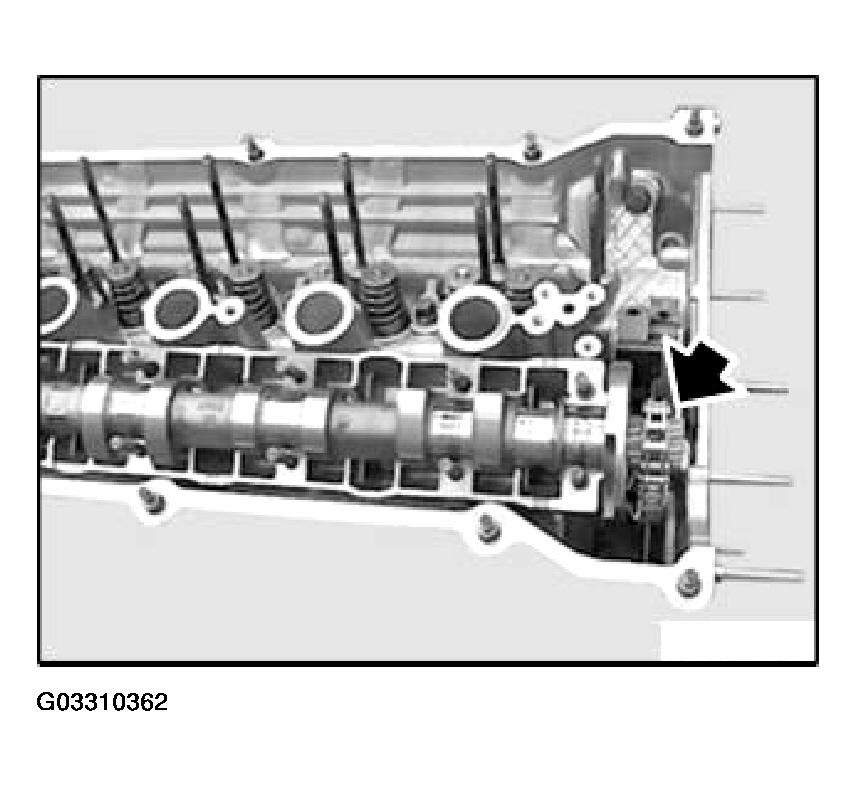

Pull up timing chain and feed in exhaust camshaft. Position timing chain on exhaust camshaft.

Fig 1: Feeding In Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Install camshafts so that cam tips on inlet and exhaust valves on 1st cylinder face one another.

Fig 2: Installing Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Fit bearing cover.

Fig 3: Fitting Bearing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bearing caps are marked from exhaust side: A1... A7 for exhaust side, E1... E7 for inlet side.

Fit special tool 11 3 260 to cylinder head and screw into spark plug threads in cylinders 1 and 4.

Fig 4: Fitting Special Tool To Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the eccentric shaft to tension the bearing caps. Tighten down bearing cover.

Fig 5: Turning Eccentric Shaft To Tension Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 31 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

IMPORTANT: Do not damage the cylinder head. If necessary, machine open-end wrench accordingly.

Align camshafts with open-end wrench.

Fig 6: Aligning Camshafts With Open-End Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 3 240 to camshafts on cylinder 6. Align camshafts so that special tool 11 3 240 rests without gaps on cylinder head.

Fig 7: Fitting Special Tool To Camshafts On Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 3 244 to special tool 11 3 240 and locate by way of spark plug thread.

Fig 8: Attaching Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension. Turn engine from 30° before TDC position in direction of rotation as far as TDC position.

Fig 9: Lifting Timing Chain And Holding Under Tension

Courtesy of BMW OF NORTH AMERICA, INC.

Secure crankshaft in firing TDC position with special tool 11 2 300.

Fig 10: Securing Crankshaft In Firing TDC Position With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Remove special tool 11 2 300 before starting engine.

Automatic transmissions only:

Illustration does not show automatic transmission.

IMPORTANT: On engines with automatic transmissions, there is shortly before the special tool bore (1) a large bore (2) which can be confused with the special tool bore.

If special tool 11 2 300 is secured in the correct bore (1), the engine can no longer be cranked at the central bolt.

Fig 11: Locating Special Tool Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Position sensor gear on inlet camshaft.

Fig 12: Positioning Sensor Gear On Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Fit thrust washer and tighten down with dowels.

Tightening torque 11 31 11AZ. Refer to ENGINE - TIGHTENING TORQUES .

Fig 13: Fitting Thrust Washer And Tightening Down With Dowels

Courtesy of BMW OF NORTH AMERICA, INC.

Feed chain wheel onto timing chain so that arrow on chain wheel faces separating face of upper side of cylinder head.

Fig 14: Feeding Chain Wheel Onto Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 4 220 in cylinder head and bring adjustment screw into contact with tensioning rail, but do not pretension timing chain yet.

Fig 15: Inserting Special Tool In Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Check arrow on chain wheel to separating face of upper side of cylinder head, reposition chain wheel if necessary.

Insert and tighten down screw-in pin.

Fig 16: Inserting And Tightening Down Screw-In Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 31 11AZ. Refer to ENGINE - TIGHTENING TORQUES .

Install secondary chain tensioner.

Fig 17: Installing Secondary Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Fit toothed sleeve (6) and align to toothed shaft in camshaft so that tooth gaps are opposed.

Fig 18: Fitting Toothed Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Secure toothed shaft (5).

Fig 19: Securing Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert pin of toothed shaft (5) into tooth gaps of splines on camshaft and toothed sleeve (6).

Push in toothed shaft (5) until the longitudinal holes in the toothed sleeve (6) are positioned centrally with respect to the thread.

Fig 20: Pushing In Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Place chain wheels in special tool 11 6 180, position tooth gap on inlet chain wheel as shown in illustration and feed on chain.

Fig 21: Placing Chain Wheels In Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not alter position of chain wheels with respect to chain when removing from special tool 11 6 180.

Remove chain with sprocket wheels positioned from special tool 11 6 180 and so that tooth spaces oppose each other on inlet side.

Fig 22: Removing Chain With Sprocket Wheels

Courtesy of BMW OF NORTH AMERICA, INC.

Align chain with sprocket wheels so that tooth spaces are positioned exactly over each other on inlet side.

Fig 23: Aligning Chain With Sprocket Wheels

Courtesy of BMW OF NORTH AMERICA, INC.

Secure toothed shaft (4).

Fig 24: Securing Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert pin of toothed shaft (4) into tooth gaps of splines on camshaft and chain wheel.

Push in toothed shaft (4) until approx. 1 mm of splines can still be seen.

Fig 25: Pushing In Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Note installation direction of corrugated washer (7), "FRONT" lettering must be visible.

Install corrugated washer, tighten nuts by hand but do not tighten down fully yet.

Fig 26: Installing Corrugated Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws on exhaust side, initially tighten to approx. 5 Nm and then slacken off again half a turn.

Fig 27: Inserting Screws On Exhaust Side

Courtesy of BMW OF NORTH AMERICA, INC.

Fit thrust washer (3).

Fig 28: Fitting Thrust Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Note installation direction of cup spring (2), "F" lettering must be visible.

NOTE: If "F" lettering is no longer visible on an engine that has been run:

Fig 29: Installing Cup Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Install cup spring (2) so that small locating diameter of spring (2) points to sensor gear.

Fit cup spring (2) in position.

Position sensor gear (1) so that arrow on sensor gear faces separating face of upper side of cylinder head.

Fig 30: Positioning Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Install nuts and tighten by hand but do not tighten down fully yet.

Withdraw toothed shaft (5) up to stop.

Fig 31: Withdrawing Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Press down secondary chain tensioner at top and remove special tool 11 3 292.

Fig 32: Pressing Down Secondary Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Preload tensioning rail with special tool 11 4 220 by rotating adjusting screw with special tool 00 9 250 or standard torque wrench to 0.7 Nm.

Fig 33: Preloading Tensioning Rail With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Preload cup spring slightly by pressing on sensor gear (1) and tighten nuts by hand.

Fig 34: Preloading Cup Spring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tighten down nuts fully.

Remove gasket.

Fig 35: Checking Dowel Sleeves For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Check dowel sleeves (1) for damage and correct installation position.

Keep sealing face clean and free of oil.

IMPORTANT: Fit special tool 11 6 150 "without gasket" only.

If gasket remains underneath special tool 11 6 150, camshaft timing will be "incorrectly" set.

Attach special tool 11 6 150 "without gasket", tighten nuts by hand and then tighten down uniformly until special tool 11 6 150 is in full contact with cylinder head.

Fig 36: Fitting Special Tool
