Maintenance And General Information - Special Tools

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 4 230 and 11 7 380

Note: or tensioning timing chain

Engine: M50, M52, M52TU, M54, M56, M60, M62, M62VAN, N40, N45, N46, N52, S50B30, S50B32

Storage location: A13

SI number: 1 04 96 (049)

Order number: 00 9 250

Torsion angle wrench with flexible extension

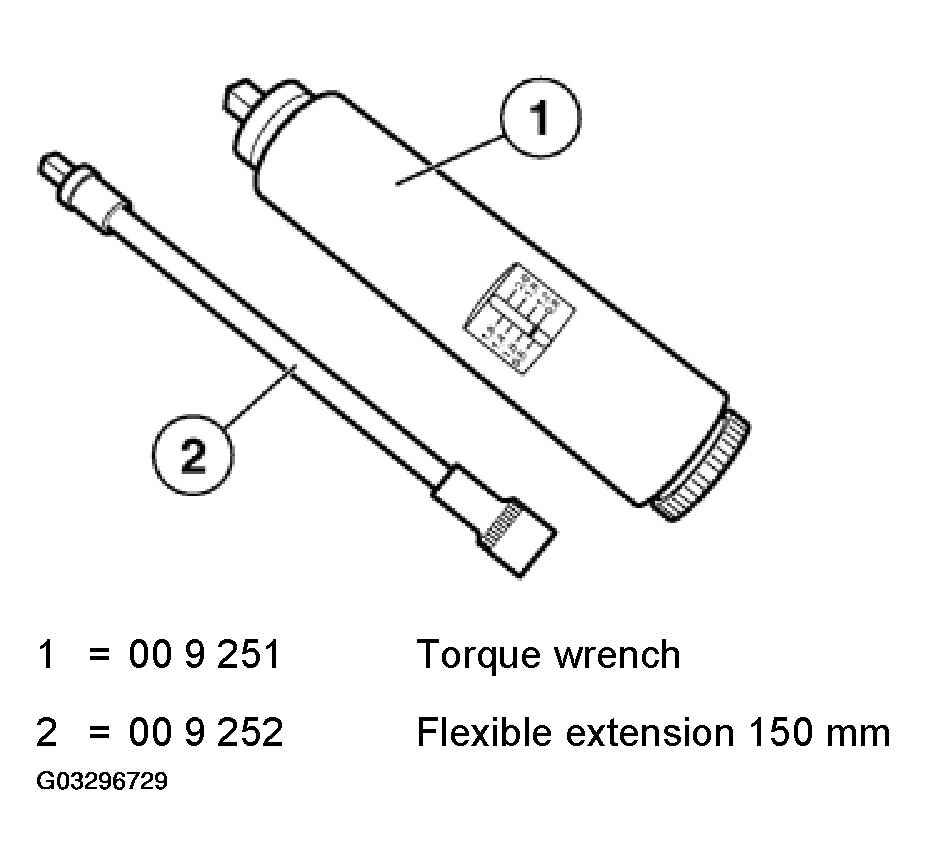

Fig 1: Identifying Torsion Angle Wrench With Flexible Extension

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 00 9 251 Torque wrench

Note: Torque range 0.6... 2.0 Nm

2 = 00 9 252 Flexible extension 150 mm
