00 4 210 Seat of reamers with guide cones 6, 7 and 8 mm

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Note: For valve guides

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M52TU, M54, M56, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S62

SI number: 1 05 86(604)

Order number: 00 4 210

Seat of reamers with guide cones 6, 7 and 8 mm

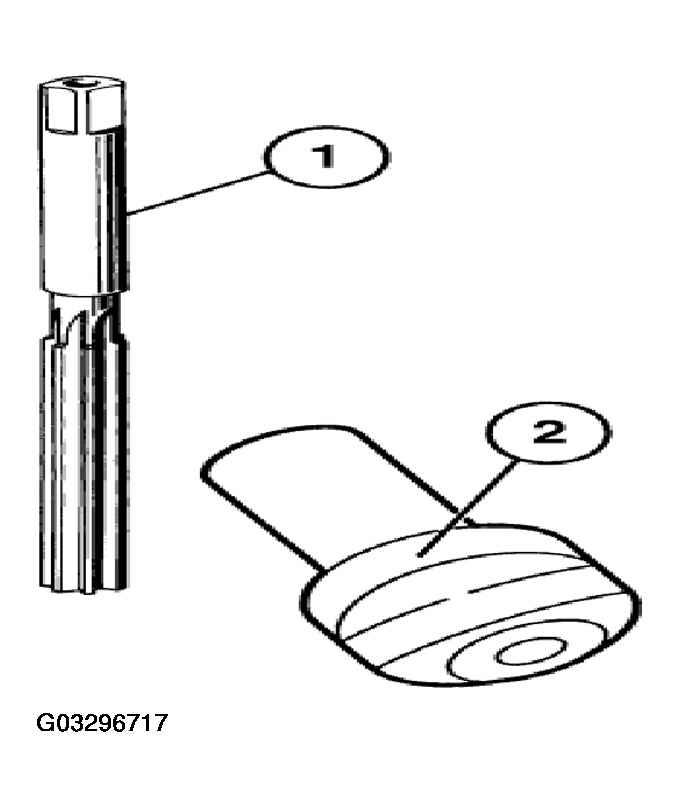

Fig 1: Identifying Seat Of Reamers With Guide Cones

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 00 4 211 Reamer 7.1 H7

Note: Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51

1 = 00 4 212 Reamer 7.2 H7

Note: Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51

1 = 00 4 214 Reamer 8.1 H7

Note: Engine: M10, M30

1 = 00 4 215 Reamer 8.2 H7

Note: Engine: M10, M30

1 = 00 4 222 Reamer 6.2 H7

Note: Engine: M44, M52, M60, M62, as from 9/92 M42, M50, M51

1 = 00 4 221 Reamer 6.1 H7

Note: Engine: M44, M52, M60, M62, as from 9/92 M42, M50, M51

2 = 00 4 216 Mushroom-type guide 8 mm

2 = 00 4 223 Mushroom-type guide 6 mm

2 = 00 4 217 Mushroom-type guide 7 mm
