11 7 450 Simulator

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: Standard workshop exhaust emission tester

NOTE: For Bosch oxygen sensor

Engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S50US, S52US

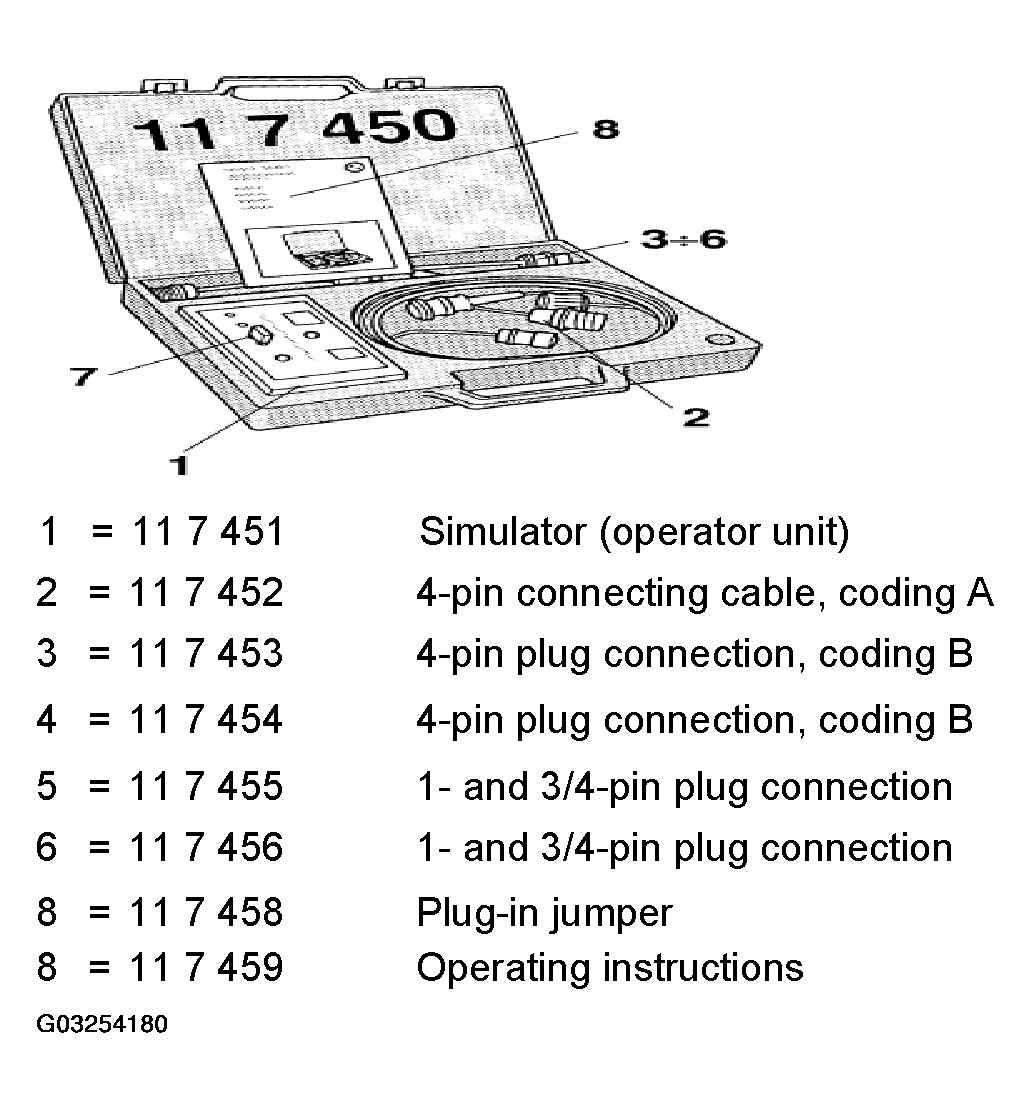

Fig 1: Identifying 11 7 450 Simulator

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: K 102

SI number: 2 07 93(700)

Order number: 11 7 450

Simulator

Consisting of:

1 = 11 7 451 Simulator (operator unit)

2 = 11 7 452 4-pin connecting cable, coding A

NOTE: Connection to wiring harness and oxygen sensor - engine: M40, M42, M43, M50, M70

3 = 11 7 453 4-pin plug connection, coding B

NOTE: Connection to oxygen sensor - engine: S50/B30

4 = 11 7 454 4-pin plug connection, coding B

NOTE: Connection to wiring harness - engine: S50/B30

5 = 11 7 455 1- and 3/4-pin plug connection

NOTE: Connection to oxygen sensor with Bosch or Cannon plug connection - engine: M10, M20, M30, S14

6 = 11 7 456 1- and 3/4-pin plug connection

NOTE: Connection to wiring harness with Bosch or Cannon plug connection - engine: M10, M20, M30, S14

8 = 11 7 458 Plug-in jumper

8 = 11 7 459 Operating instructions
