Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For secondary chain tensioner to lock chain tensioner piston in position, e.g. when removing and installing sprockets

Engine: M62

Storage location: B12

SI number: 1 04 96(049)

Order number: 11 3 310

Locking clip (2)

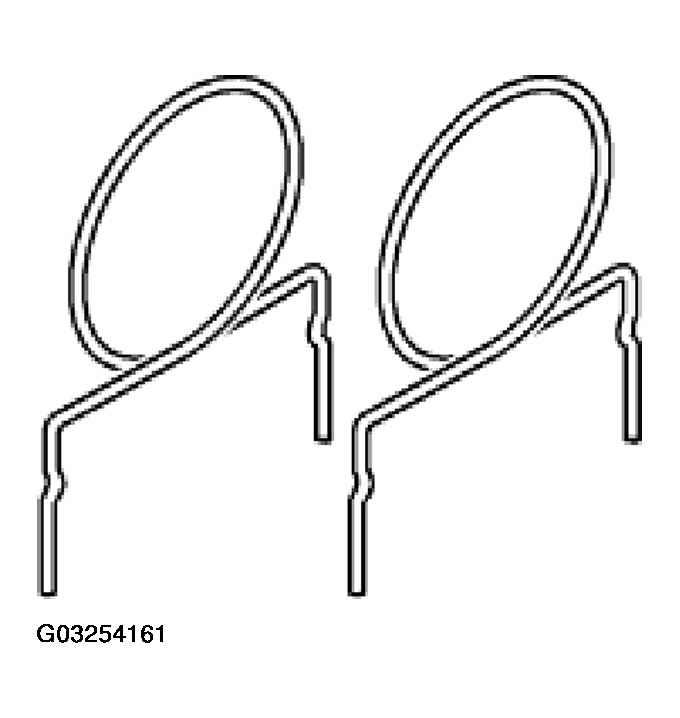

Fig 1: Identifying 11 3 310 Locking Clip (2)

Courtesy of BMW OF NORTH AMERICA, INC.
