Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For locking camshaft in position when adjusting timing

Engine: M60, M62

SI number: 1 05 92(507)

Order number: 11 2 440

Locking fixture

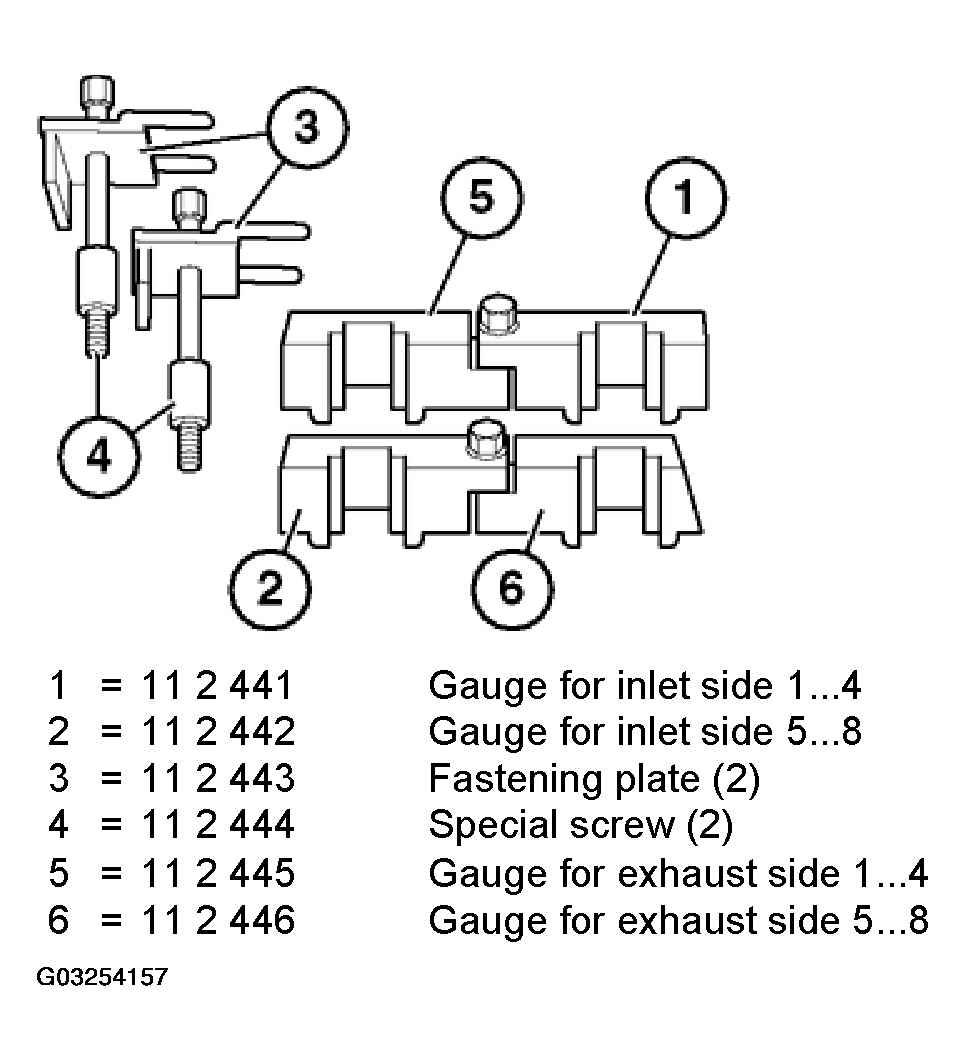

Fig 1: Identifying 11 2 440 Locking Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 2 441 Gauge for inlet side 1...4

2 = 11 2 442 Gauge for inlet side 5...8

3 = 11 2 443 Fastening plate (2)

4 = 11 2 444 Special screw (2)

5 = 11 2 445 Gauge for exhaust side 1...4

NOTE: Reference value 3.5°

6 = 11 2 446 Gauge for exhaust side 5...8

NOTE: Reference value 3.5°
