Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing rotary shaft seal from timing case cover

Engine: M41, M47, M50, M51, M52, M52TU, M54, M56, M60, M62, S50B30, S50B32, S54, S62, W10, W11

Storage location: A38, C25

SI number: 1 05 92(507)

Order number: 11 2 380

Puller

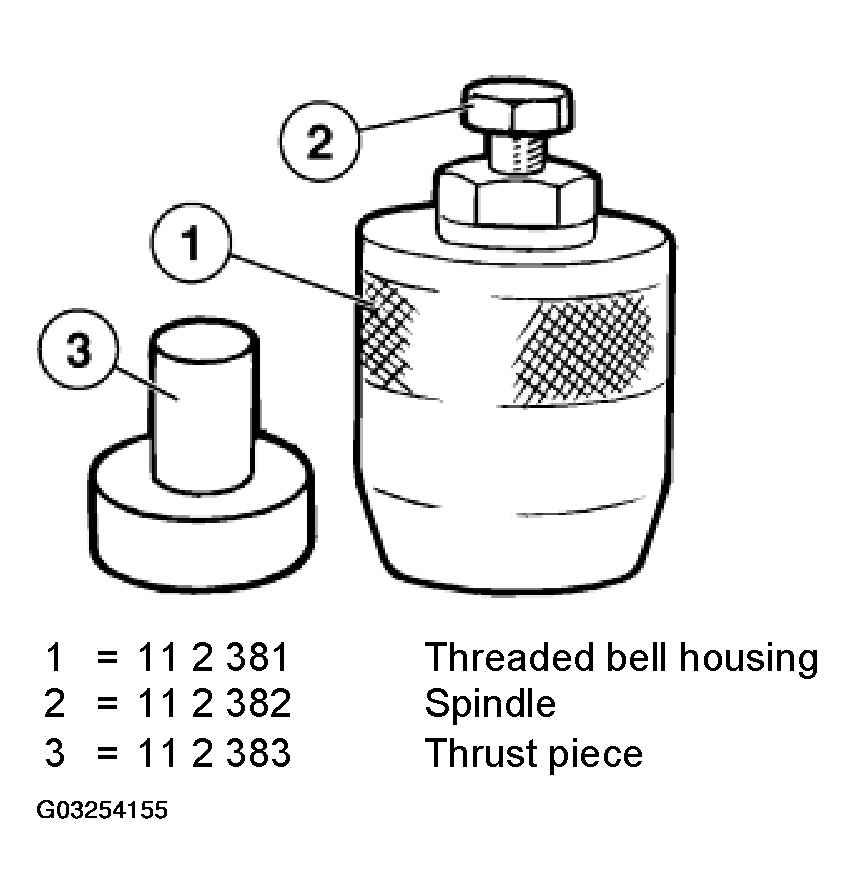

Fig 1: Identifying 11 2 380 Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 2 381 Threaded bell housing

2 = 11 2 382 Spindle

3 = 11 2 383 Thrust piece

NOTE: Engine: M41, M47, M50, M51, M52, M60, M62, PENT

11 2 384 Thrust piece

NOTE: Engine: S50, S54

11 2 385 Spacer bushing

NOTE: Engine: M41, M50, M51, M52

11 2 386 Thrust piece

NOTE: Engine: S62
