Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 2 016 (M60, M62)

NOTE: For guide bearing in crankshaft, stem diameter 15 mm

Engine: M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, M70, M73, N40, N42, N45, N46, S50B30, S50B32, S54, S62, S85

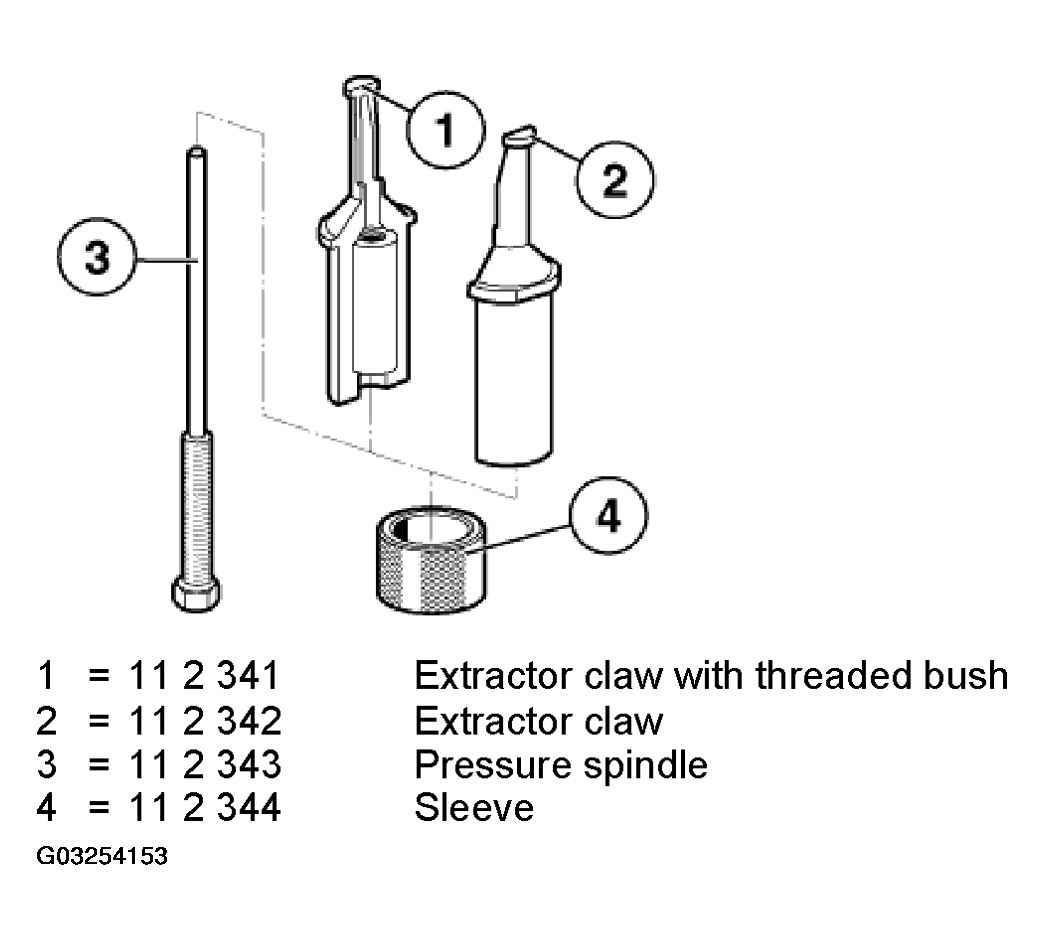

Fig 1: Identifying 11 2 340 Extractor

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: C26

SI number: 1 05 90(207)

Order number: 11 2 340

Extractor

Consisting of:

1 = 11 2 341 Extractor claw with threaded bush

2 = 11 2 342 Extractor claw

3 = 11 2 343 Pressure spindle

4 = 11 2 344 Sleeve
