Minimum set: Mechanical tools
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For removing guide bearing in crankshaft, stem diameter 12 mm
Engine: M10, M20, M21, M30, M40, M42, M50, M60, M62, S14, S38, S62, S85
Storage location: C25
Order number: 11 2 010

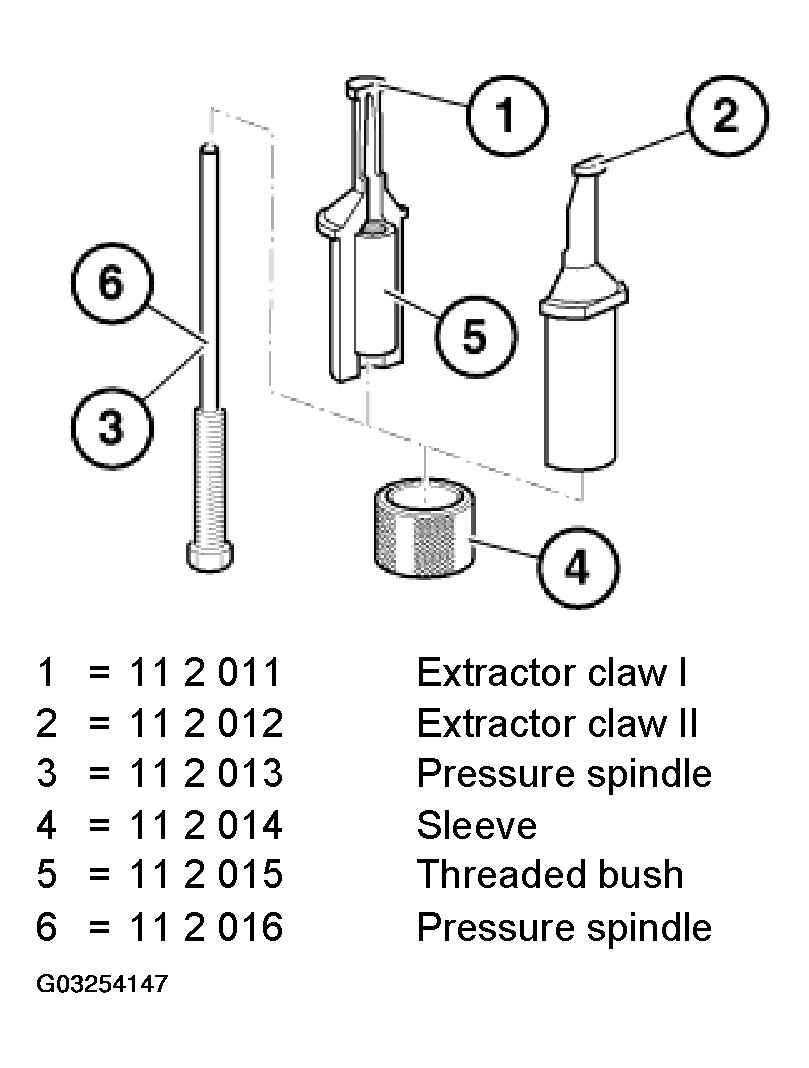

Extractor
Consisting of:
1 = 11 2 011 Extractor claw I
NOTE:
With threaded bush - Engine: except M60, M62
2 = 11 2 012 Extractor claw II
NOTE:
Engine: except M60, M62
3 = 11 2 013 Pressure spindle
NOTE:
Engine: except M60, M62
4 = 11 2 014 Sleeve
NOTE:
Engine: except M60, M62
5 = 11 2 015 Threaded bush
NOTE:
Engine: except M60, M62
6 = 11 2 016 Pressure spindle
NOTE:
Engine: M60/B30, M62, S62
