Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For crankshaft sprocket

Engine: M10, M30, M50, M52, M60, M62, M70, M73, N73, S14, S38, W10, W11

Storage location: B9, C42

Order number: 11 2 000

Puller

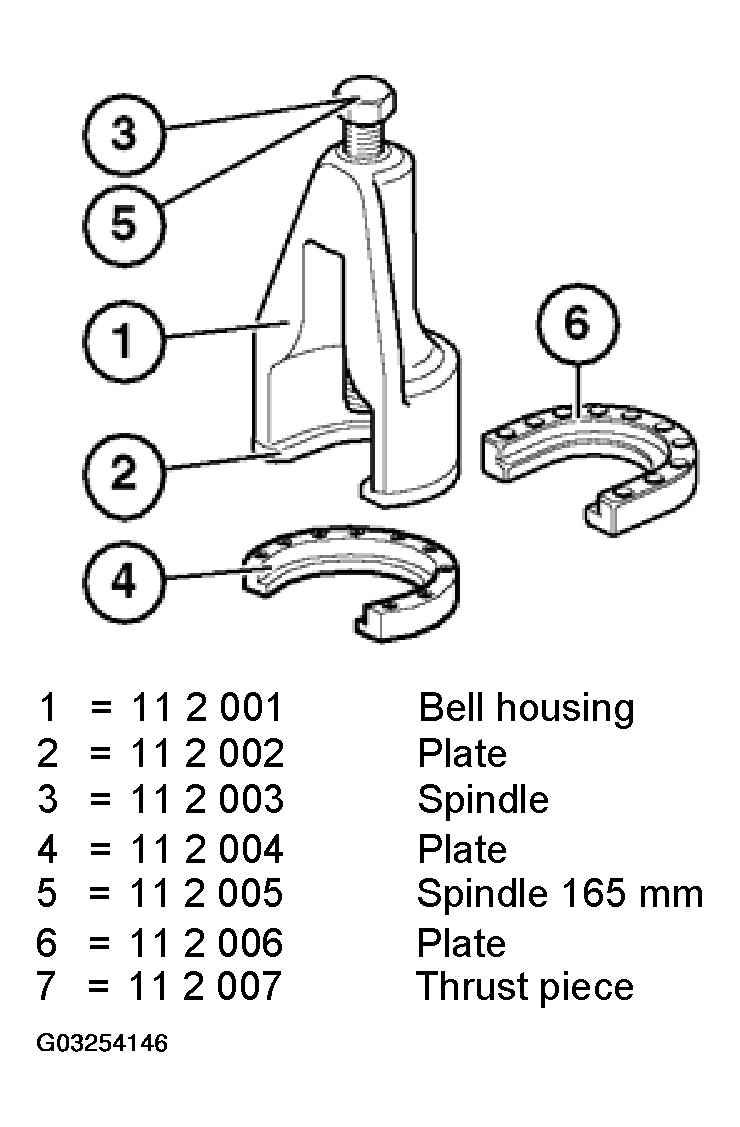

Fig 1: Identifying 11 2 000 Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 2 001 Bell housing

2 = 11 2 002 Plate

NOTE: Engine: M10, M30, S14, S38, N73

3 = 11 2 003 Spindle

NOTE: Engine: M10, M30, M70, M73, S14, S38, N73

4 = 11 2 004 Plate

NOTE: Engine: M50, M52, M60, M62

5 = 11 2 005 Spindle 165 mm

NOTE: Engine: M50, M52, M60, M62

6 = 11 2 006 Plate

NOTE: Engine: M70, M73, N73

7 = 11 2 007 Thrust piece

NOTE: Engine: N73
