11 0 340 Accessories

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 1 060

NOTE: For removing and installing valve springs

Engine: M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M57, M57D25, M57D30, M60, M62, M70, M73, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S54, S62

SI number: 1 12 93(701)

Order number: 11 0 340

Accessories

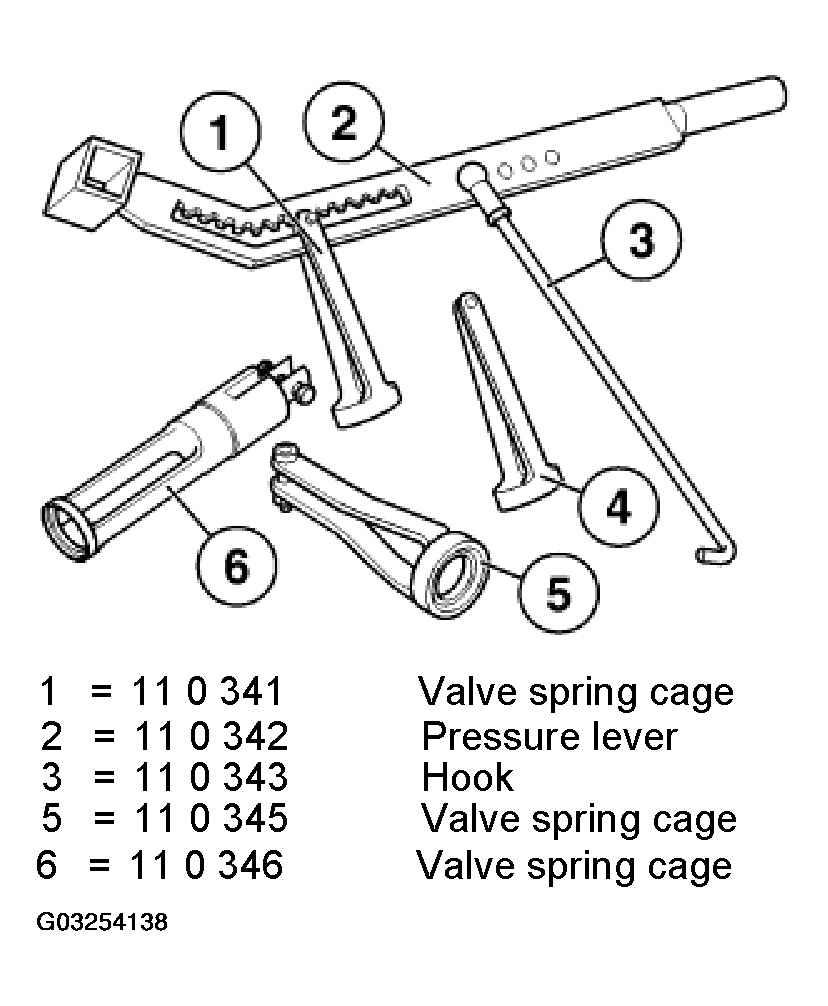

Fig 1: Identifying 11 0 340 Accessories

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 0 341 Valve spring cage

NOTE: Engine: M43, M73

2 = 11 0 342 Pressure lever

NOTE: Engine: all, except M10

3 = 11 0 343 Hook

NOTE: Length 220 mm - Engine: all, except M10

5 = 11 0 345 Valve spring cage

NOTE: Engine: M44, M52, M62, S62, S54

6 = 11 0 346 Valve spring cage

NOTE: Engine: M47, M47TU, M57, N40, N42
