11 0 210 Installation accessory for valve springs

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 1 060

NOTE: For removing and installing valve springs

Engine: M60, M62, S62

SI number: 1 05 92(507)

Order number: 11 0 210

Installation accessory for valve springs

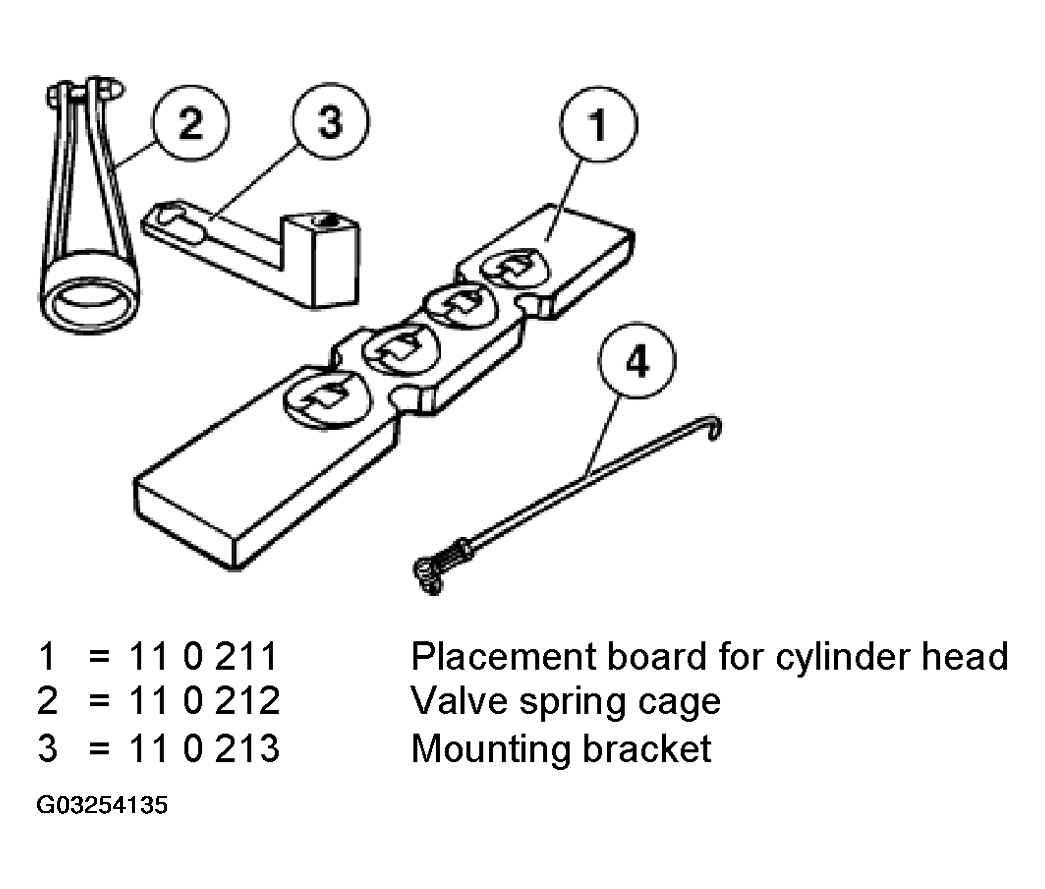

Fig 1: I11 0 210 Installation Accessory For Valve Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 0 211 Placement board for cylinder head

NOTE: Engine: M60, M62, S62

2 = 11 0 212 Valve spring cage

NOTE: Engine: M60

3 = 11 0 213 Mounting bracket

NOTE: Engine: M60, M62, S62
