11 0 070 Engine hoist

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing and installing engines

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

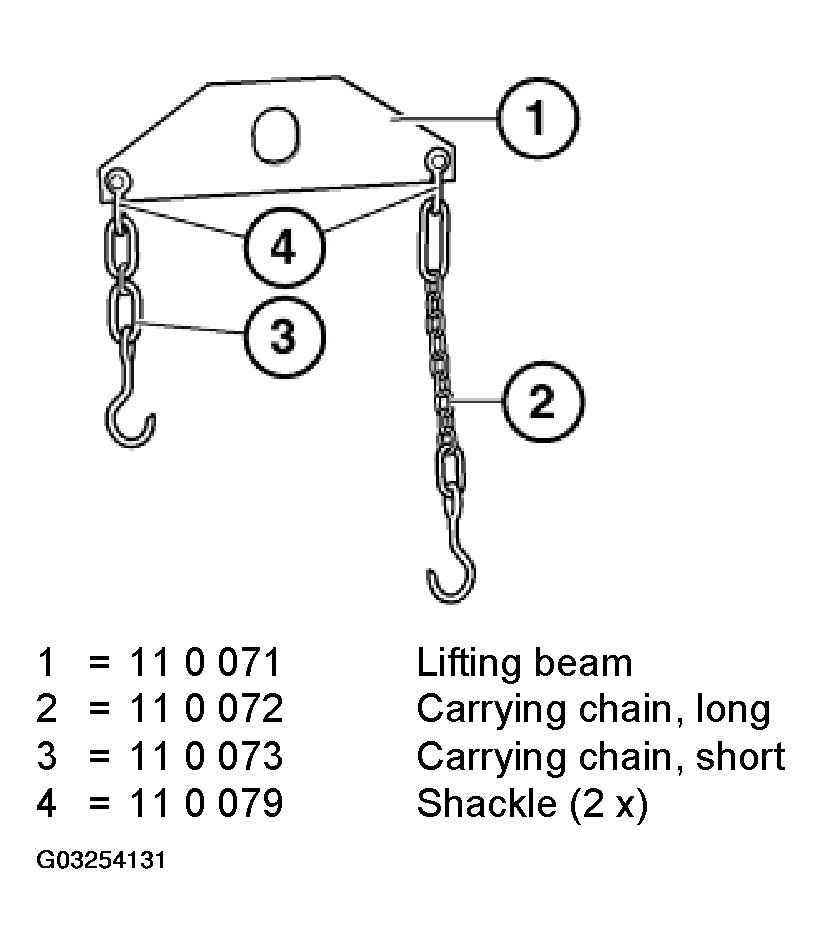

Fig 1: Identifying 11 0 070 Engine Hoist

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 16 96 (107)

Order number: 11 0 070

Engine hoist

Consisting of:

1 = 11 0 071 Lifting beam

2 = 11 0 072 Carrying chain, long

3 = 11 0 073 Carrying chain, short

4 = 11 0 079 Shackle (2 x)
