Rotation-Rate Sensor DSC III (DSC Sensor): Removal

WARNING: This page is about a different car, the 2004 BMW X5, 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Rotation rate sensor also contains function of transversal acceleration sensor.
  1. Lever out storage box (1) with special tool (00 9 340) and remove. See Fig 1.
  2. Loosen air duct screws (1). See Fig 2.
  3. Pull out fresh-air grill (1) in direction of arrow. See Fig 3.
  4. Disconnect plug connections (1). If necessary, disconnect plug connections on switch for seat heating. Remove fresh-air grill (2). Unclip cigarette lighter (3). See Fig 4.
  5. Remove air duct (2). See Fig 2.
  6. Release screws (1). See Fig 5.
    7. CAUTION: Last clip on front carpet (4) must be unclipped (risk of damage).
  7. Unclip clips (1) on left/right with carpet (3) outwards from center console (2). Pull out carpet (3) towards rear. See Fig 6.
  8. Unfasten screws (1 and 2) left/right for release of cup holder (3). See Fig 7.
  9. Release left/right screws (2). Pull left/right side sections (1) apart and pull out center console (rear) with cup holder (3). See Fig 8.
  10. Release screws (1 and 2). See Fig 9.
  11. Unlock plug connection and detach. See Fig 10.

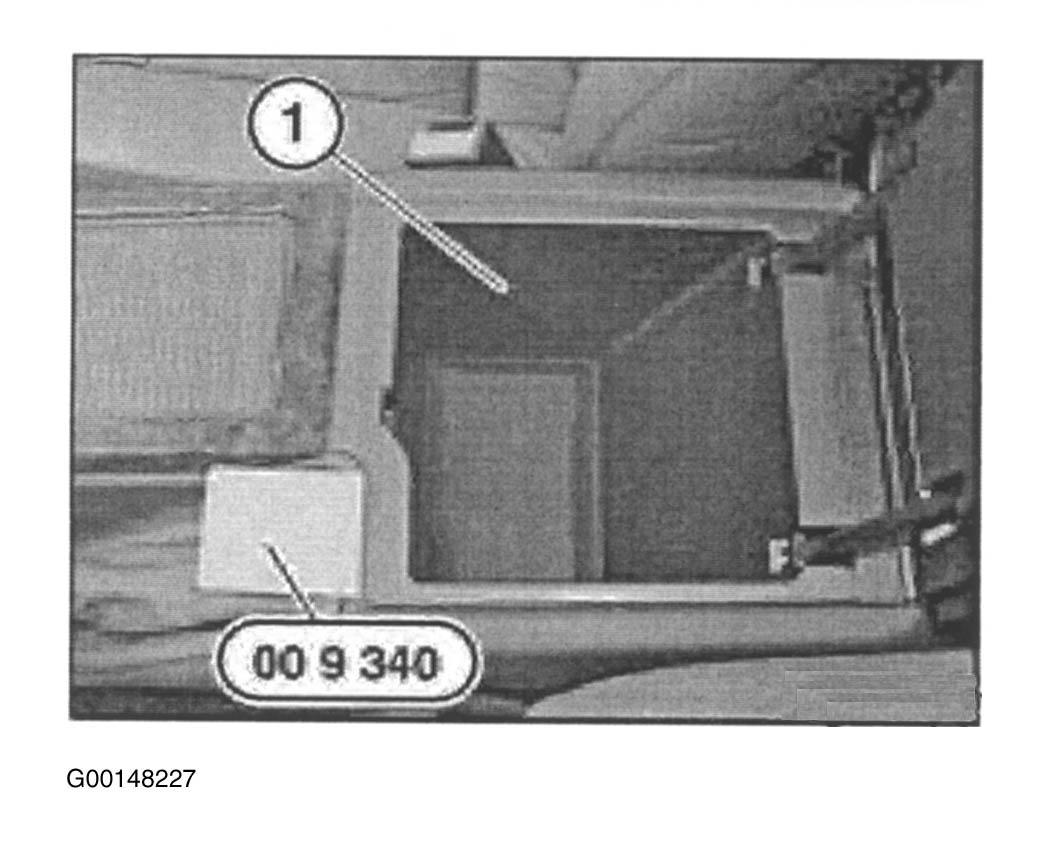

Fig 1: Levering Out Storage Box
G00148227Courtesy of BMW OF NORTH AMERICA, INC.

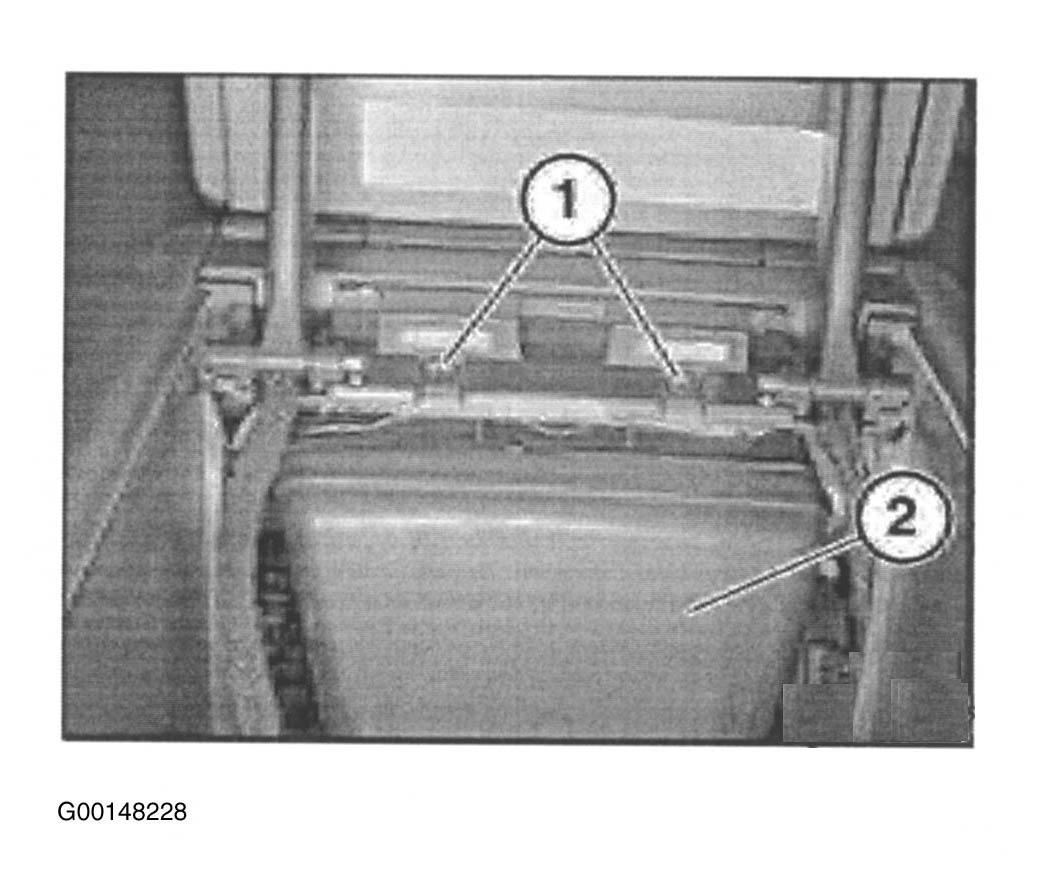

Fig 2: Locating Air Duct Screws
G00148228Courtesy of BMW OF NORTH AMERICA, INC.

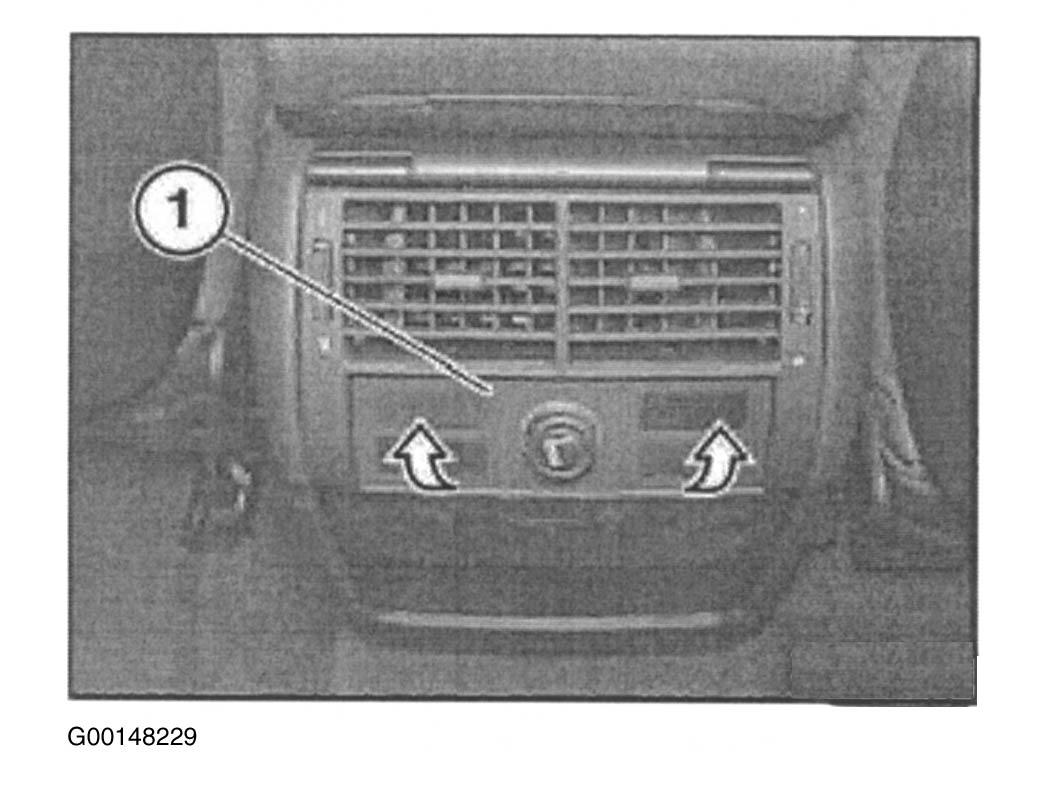

Fig 3: Pulling Out Fresh-Air Grill
G00148229Courtesy of BMW OF NORTH AMERICA, INC.

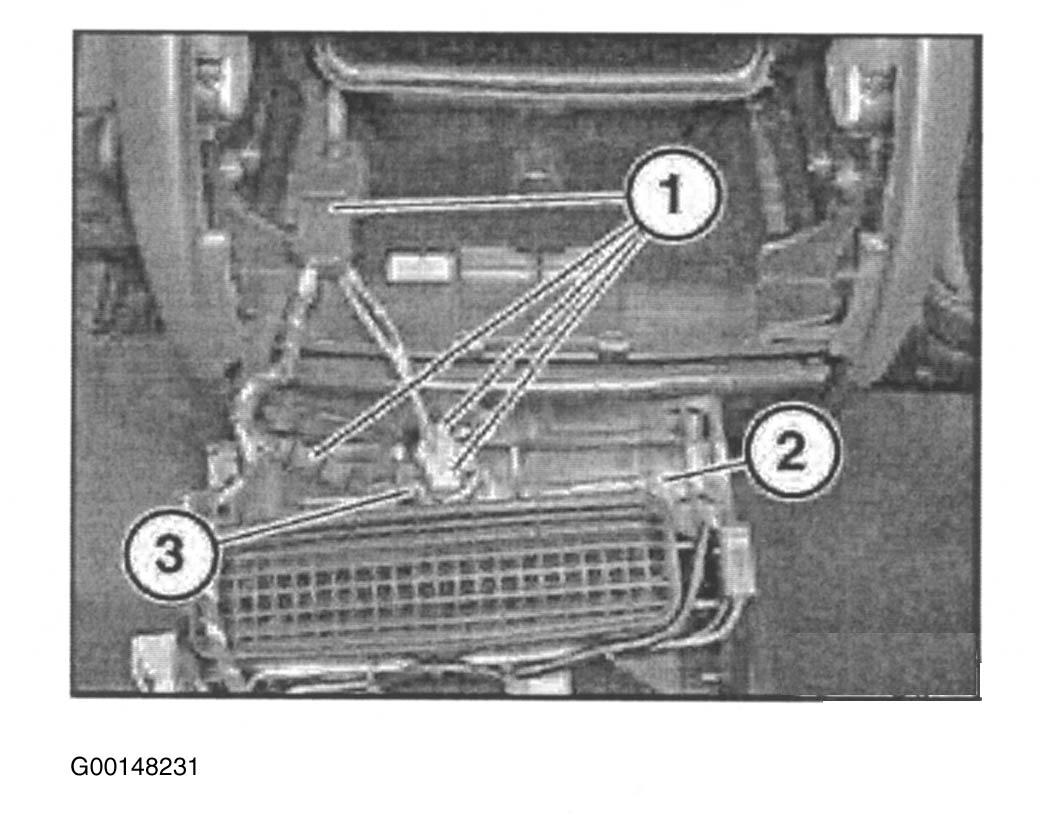

Fig 4: Disconnecting Fresh-Air Grill
G00148231Courtesy of BMW OF NORTH AMERICA, INC.

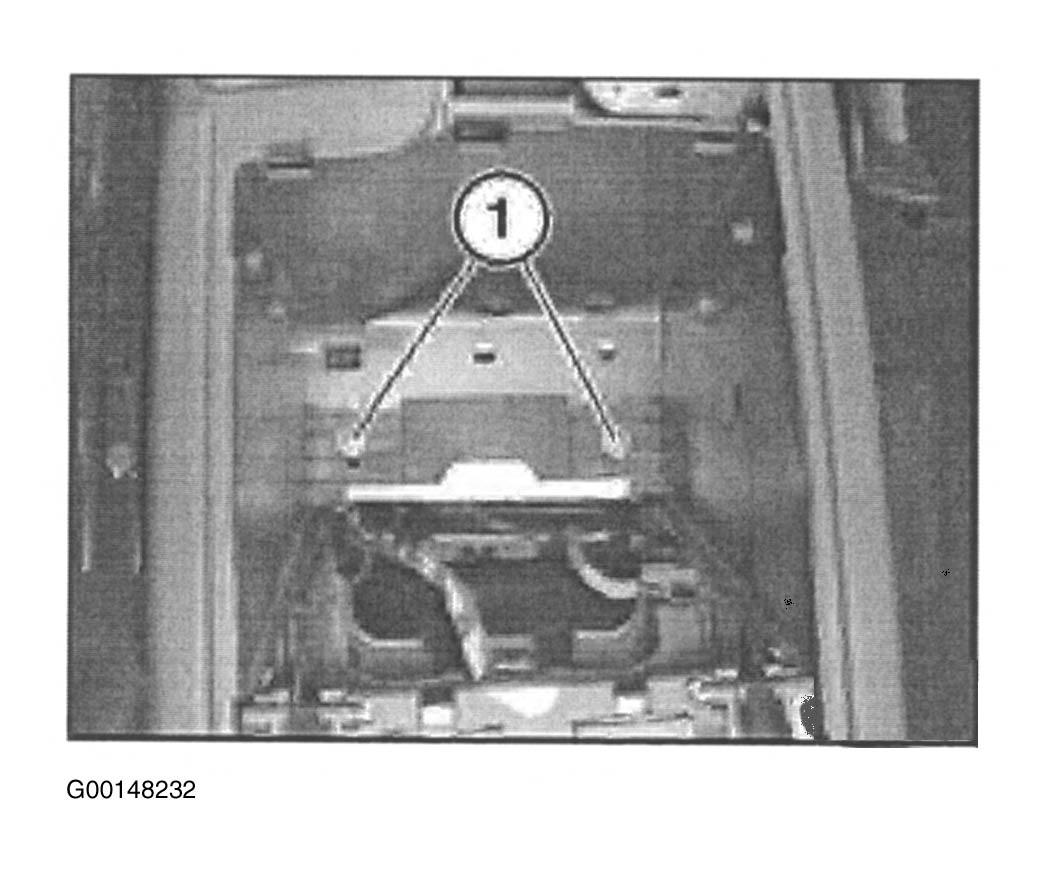

Fig 5: Locating Screws
G00148232Courtesy of BMW OF NORTH AMERICA, INC.

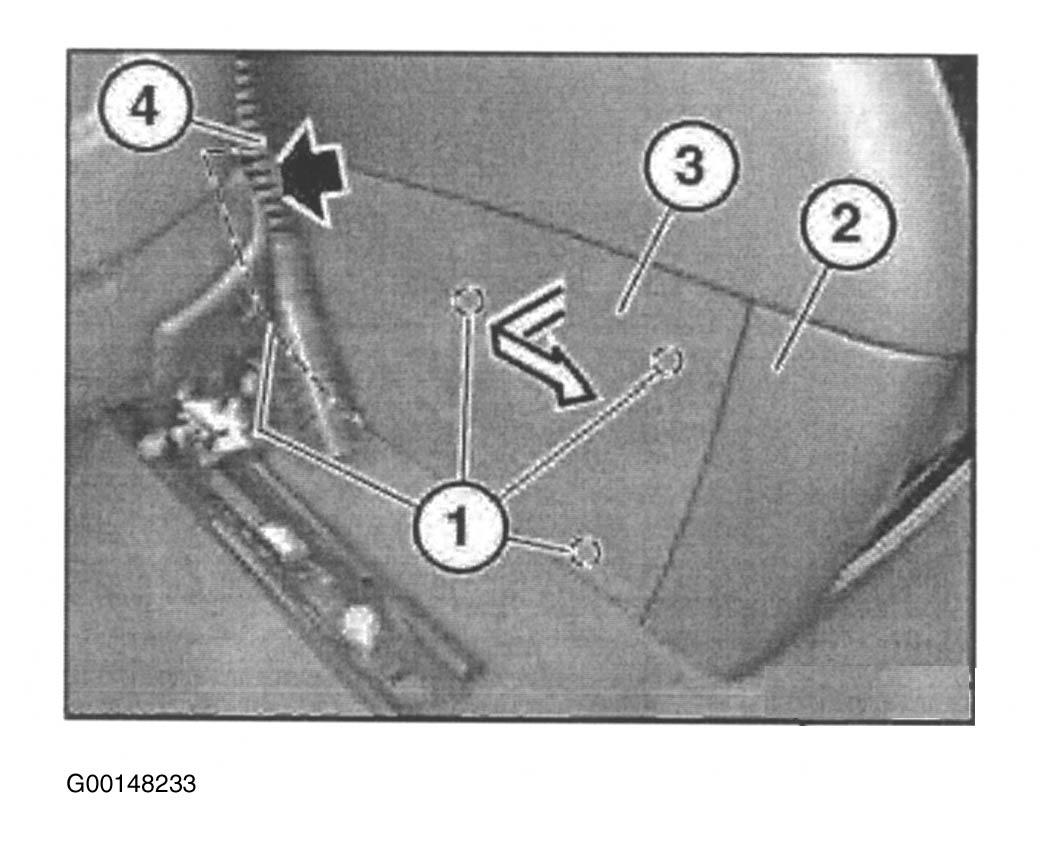

Fig 6: Pulling Out Carpet
G00148233Courtesy of BMW OF NORTH AMERICA, INC.

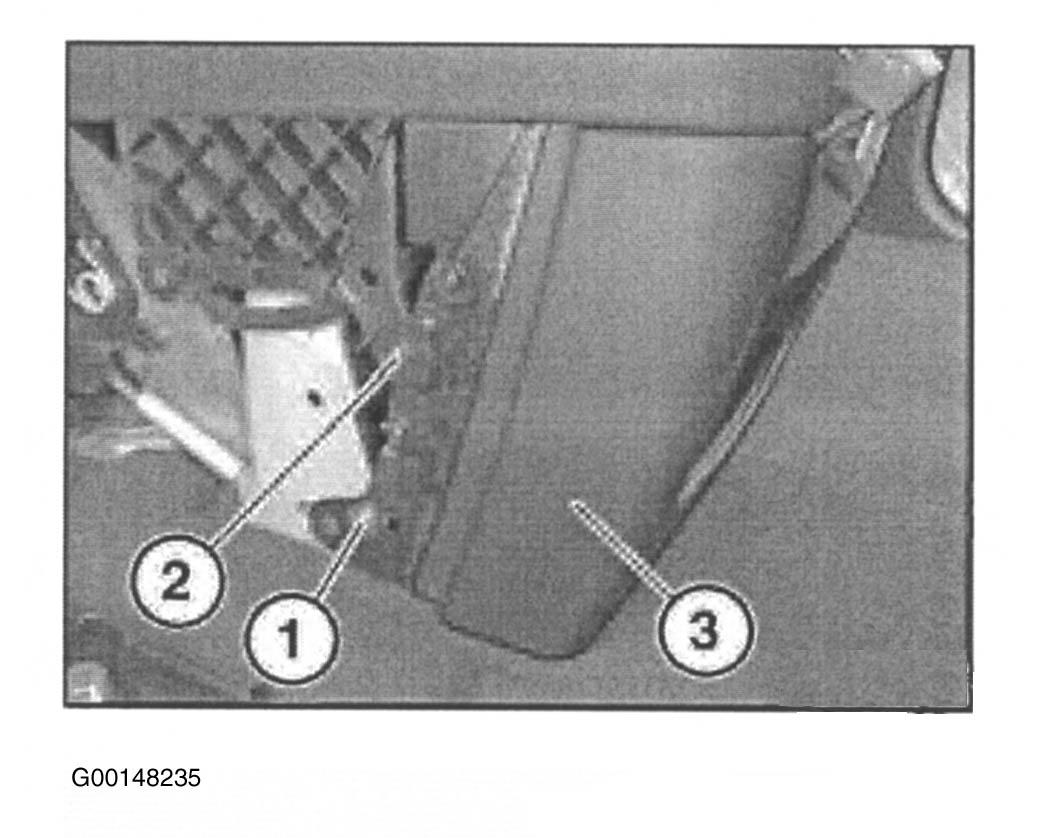

Fig 7: Removing Screws For Cup Holder
G00148235Courtesy of BMW OF NORTH AMERICA, INC.

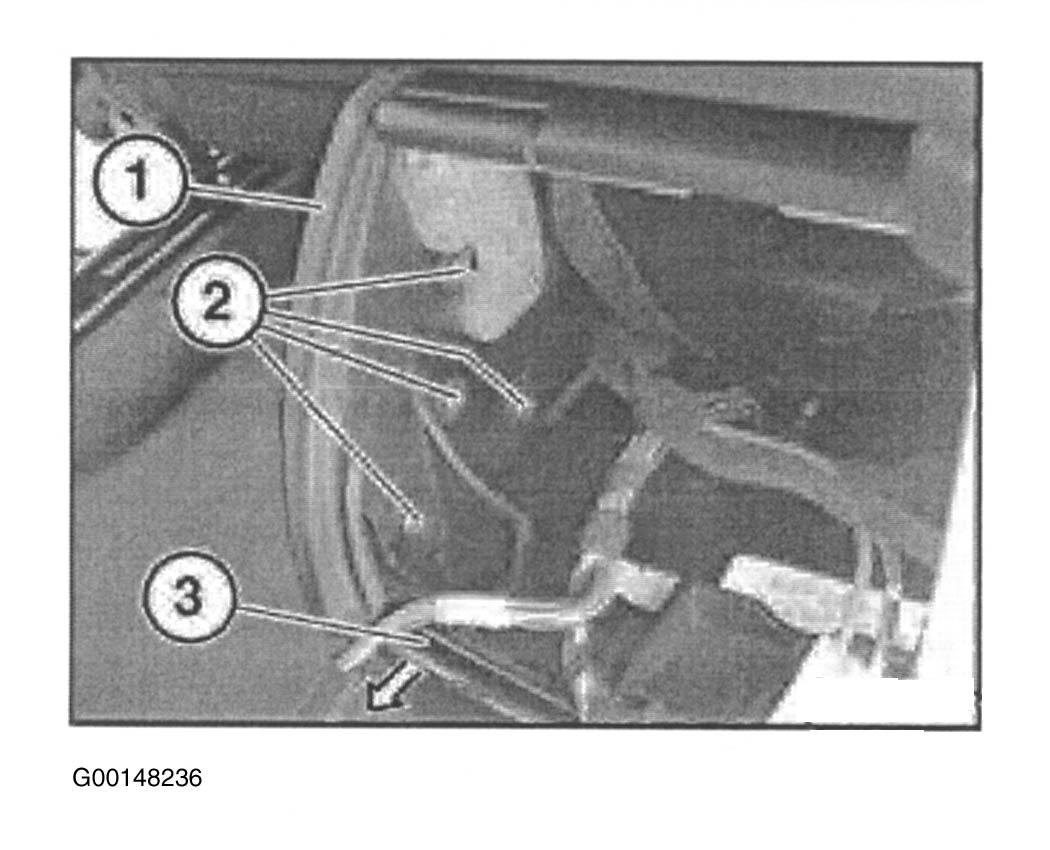

Fig 8: Pulling Out Center Console (Rear)
G00148236Courtesy of BMW OF NORTH AMERICA, INC.

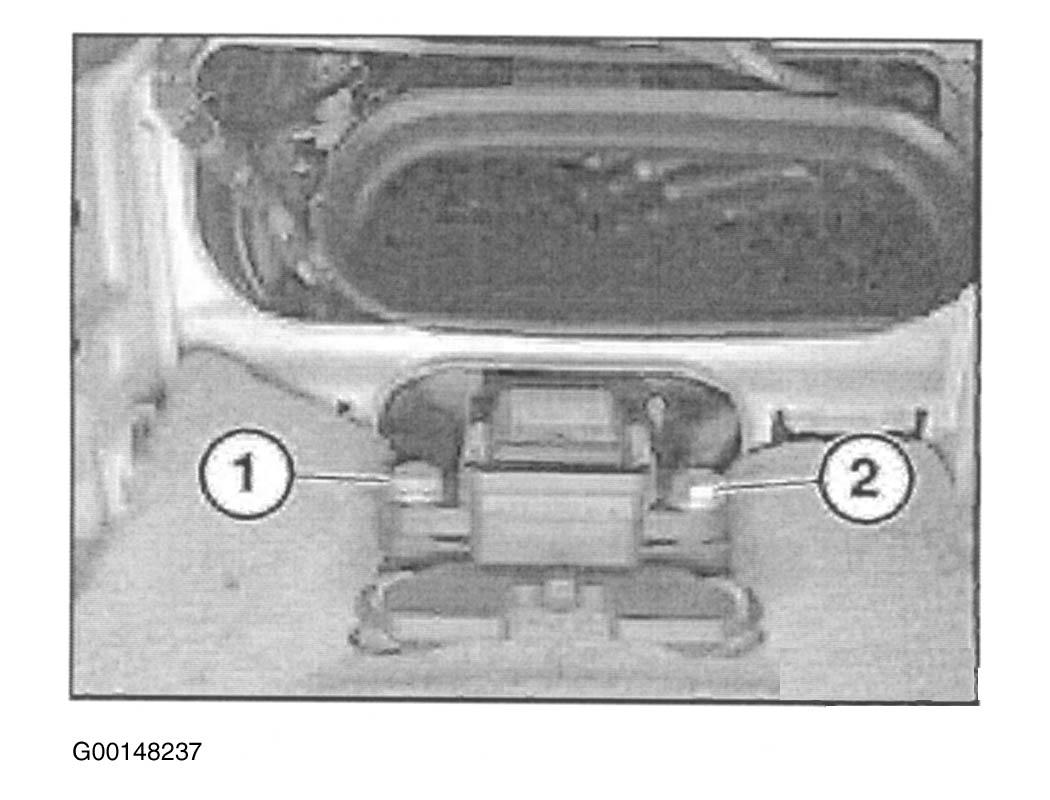

Fig 9: Locating Rotation-Rate Sensor Screws
G00148237Courtesy of BMW OF NORTH AMERICA, INC.

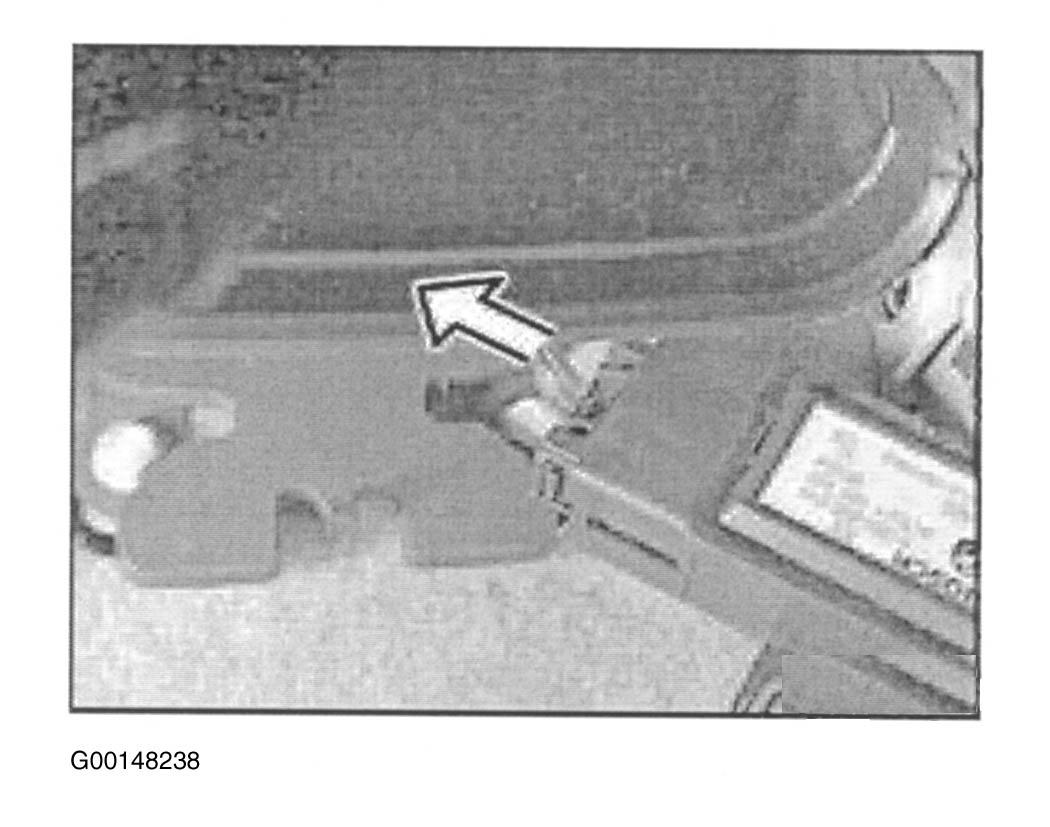

Fig 10: Removing Rotation-Rate Sensor
G00148238Courtesy of BMW OF NORTH AMERICA, INC.
