51 2 190 Door lock tensioner
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
DOOR LOCK TENSIONER SPECIFICATIONS

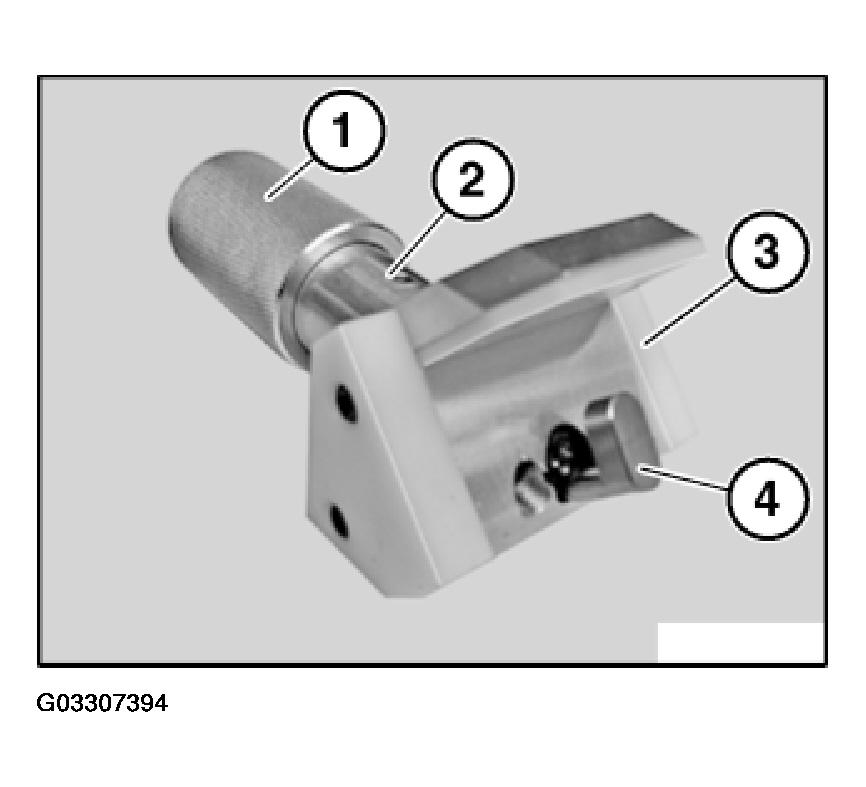

| Note: | For pretensioning front and rear door locks during installation. Change to tool through use of noise-optimized locks from 02/2004. Illustration items: 1 = Knurled nut 51 2 191, 2 = Support 51 2 192, 3 = Guard 51 2 196, 4 = Mandrel 51 2 197. |
| Series: | E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, RR1 |
| Storage location: | B44, C44 |
| SI number: | 1 06 02 (864) |
| Order number: | 51 2 190 |
| Door lock tensioner | |
| Consisting of: | |
| 1 = 51 2 191 | Knurled nut |
| 2 = 51 2 192 | Rest |
| 3 = 51 2 193 | Guard
NOTE:
Guard is replaced by 51 2 196 with introduction of noise-optimized locks from 02/2004
|
| 4 = 51 2 194 | Mandrel
NOTE:
Mandrel is replaced by 51 2 197 with introduction of noise-optimized locks from 02/2004
|
| 5 = 51 2 195 | Shaped section
NOTE:
E85 (omitted)
|
| 6 = 51 2 196 | Guard
NOTE:
Replaces guard 51 2 193
|
| 7 = 51 2 197 | Mandrel
NOTE:
Replaces mandrel 51 2 194
|
