Master Brake Cylinder: Removal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cover in luggage compartment and remove grounding strap from body.
- Suck the brake fluid out of expansion tank. Use a suction device used exclusively for drawing off brake fluid.
- Remove brake fluid expansion tank. See BRAKE EXPANSION TANK .
- Remove heater bulkhead. See HEATER BULKHEAD .
- Remove positive support point at partition wall on left.
- Unclip Bowden cable for engine hood locking.
- Pull wiring harness upwards out of partition wall. Unscrew nuts.
- Release screws. Remove rubber mount for windshield washer unit. Pull out partition wall.
- Disconnect all hydraulic lines from master cylinder. See Fig 1. Close off the brake lines and the master brake cylinder using appropriate seal plugs.

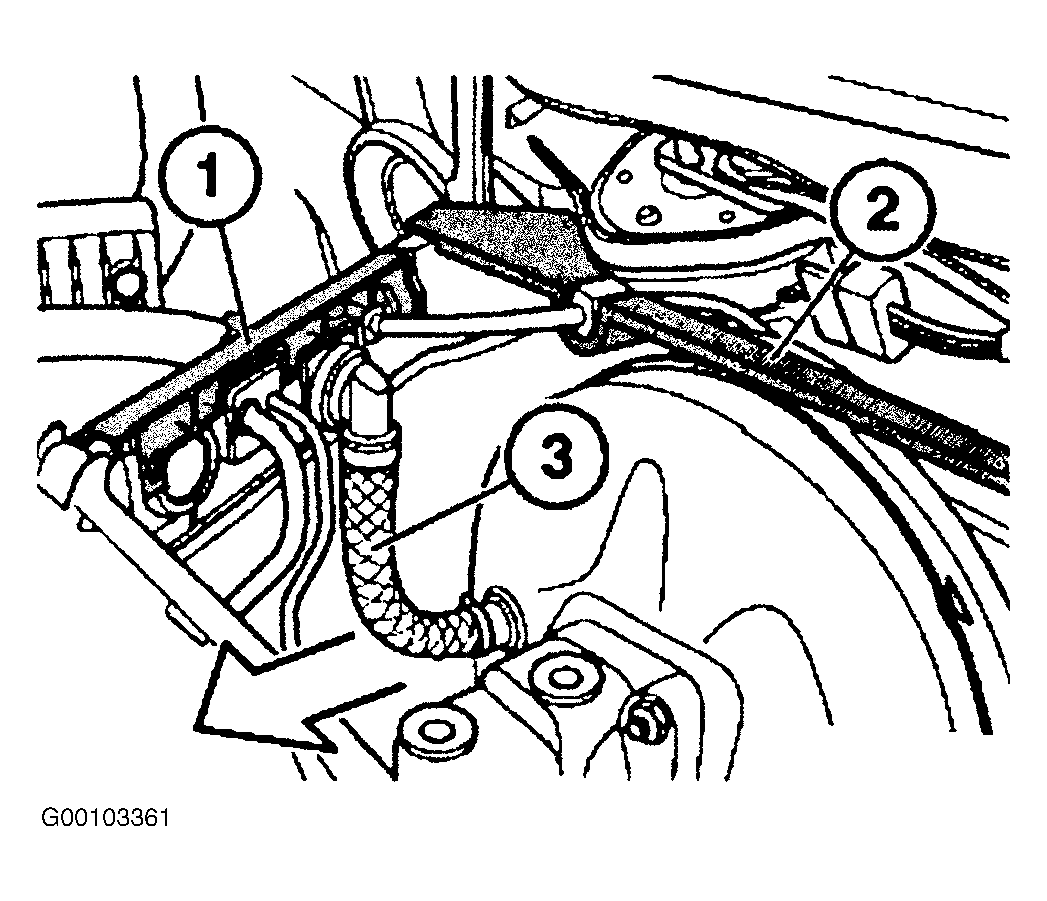

- Remove cover (1) from line aperture. Pull the vacuum hose (3) off of the brake unit. See Fig 2.
- Remove master cylinder-to-power booster nuts. Remove support and master cylinder.
- Replace O-ring. See Fig 3.
