Caliper Assembly: Removal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove wheel(s).
- Apply pedal support and press brake pedal slightly. This prevents brake fluid from emerging from expansion tank and air from entering the brake system after the brake lines have been detached.

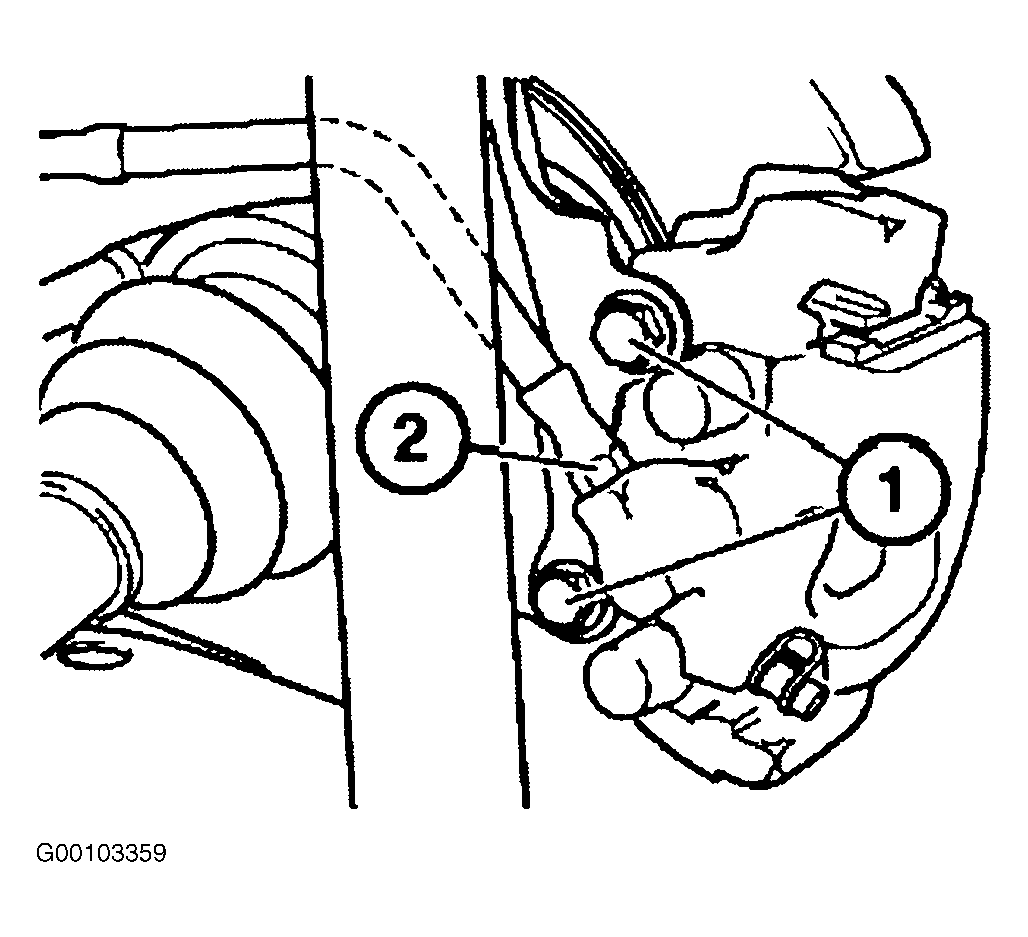

- Loosen bolts (1). Use special tool 34 1 080. Disconnect brake hose (2). See Fig 1.
- On right rear disconnect plug connection for brake lining sensor. On left front remove connector for wear indicator.
- Lift brake hose out of bracket.
- Withdraw brake caliper backwards.
CAUTION:
The rear brake hose is secured on the upper control arm by a line holder. The flaps of the line must not be opened. If this happens, the holder must be replaced.
