Brake line components

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

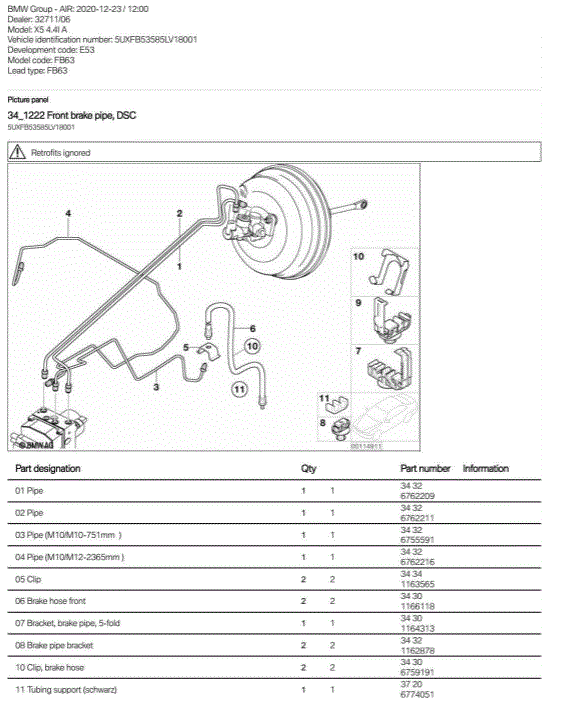

G00596537Courtesy of BMW OF NORTH AMERICA, INC.

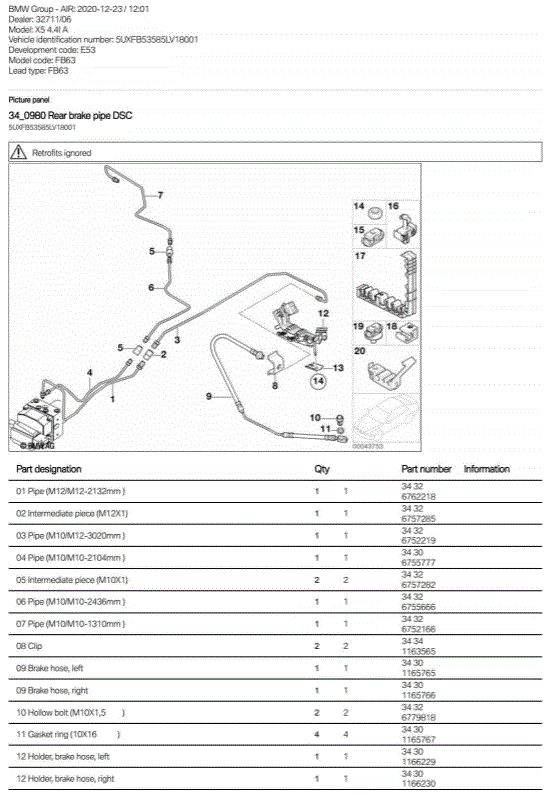

G00596538Courtesy of BMW OF NORTH AMERICA, INC.
G00596539Courtesy of BMW OF NORTH AMERICA, INC.
